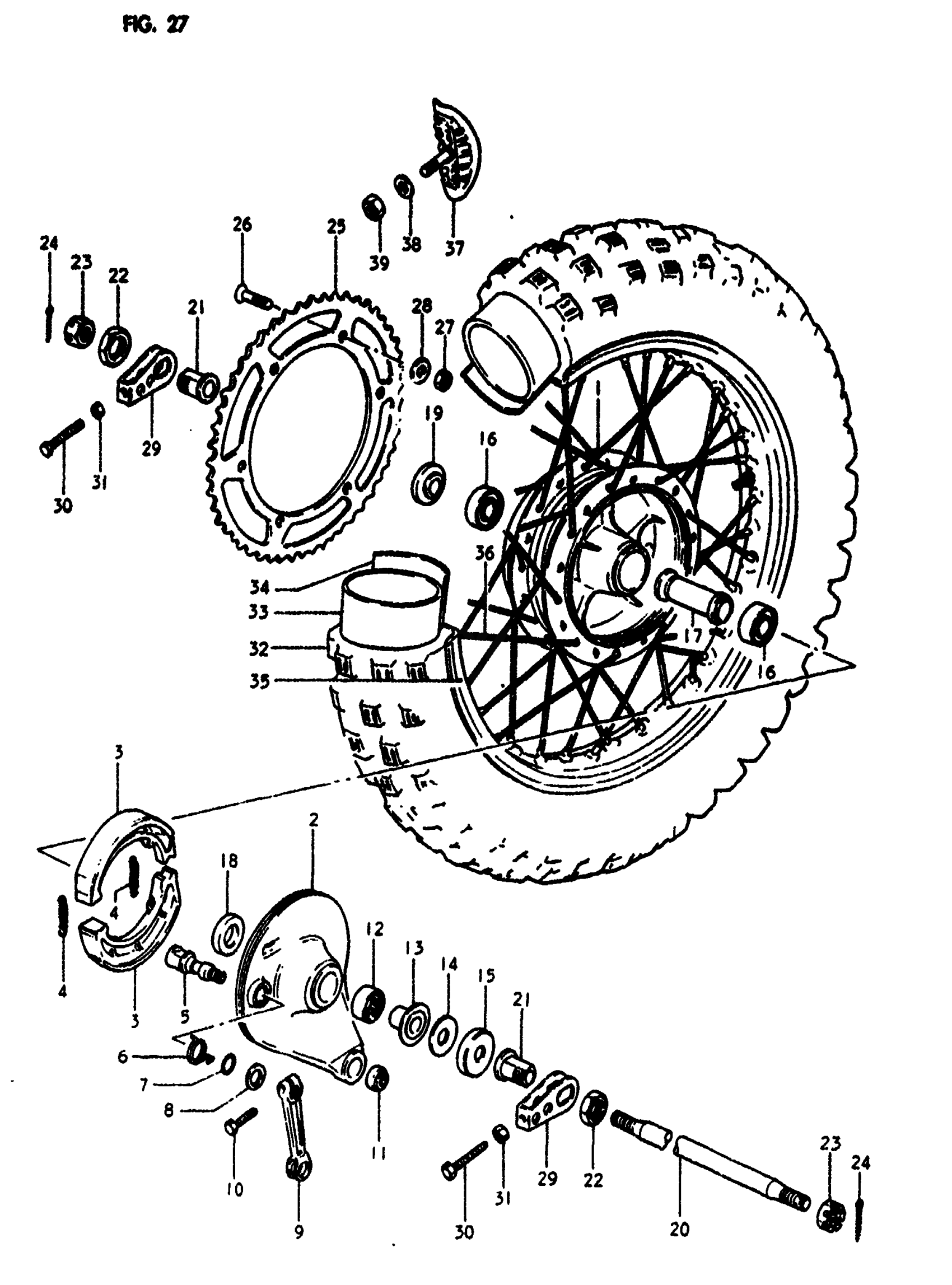

Suzuki RM250 (1980) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-40304

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 64200-41850.

64200-41852

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 64410-40301.

64400-40840

Unavailable

4

SPRING

64430-40300

Unavailable

5

CAM, BRAKE

54441-01002

$18.80

6

SPRING

09448-30006

Unavailable

7

DUST SEAL

09280-12001

$2.90

8

WASHER

09160-12011

$1.54

9

LEVER, BRAKE CAM

64451-40301

Unavailable

10

BOLT This part replaces 01107-06258.

01500-06257

$1.97

11

BEARING This part replaces 64352-40400.

64352-40401

Unavailable

12

BEARING, HUB PANEL

09263-22025

Unavailable

13

SPACER, HUB PANEL

64213-40300

Unavailable

14

THRUST WASHER This part replaces 09160-15028.

08211-15341

$2.85

15

COVER This part replaces 64845-40300.

61262-22A01

$6.05

16

BEARING, REAR HUB

08123-62027

$18.57

17

NO DESCRIPTION AVAILABLE This part replaces 64730-40300.

64730-40301

Unavailable

18

SPACER, AXIE RH

64741-40300

Unavailable

19

SPACER, AXIE LH

64750-40300

Unavailable

20

AXLE, REAR

64711-40300

Unavailable

21

SPACER, CHAIN ADJUSTER

64781-40300

Unavailable

22

NUT

09140-22006

Unavailable

23

NUT

09141-14004

$3.91

24

PIN This part replaces 04111-30308.

04111-3030A

$1.49

25

SPROCKET, REAR (NT:50)

64511-40301

Unavailable

26

SCREW

09120-08004

$2.40

27

NUT This part replaces 08319-31088.

08319-3108A

$2.32

28

WASHER This part replaces 08322-11088.

08322-01087

$2.13

29

ADJUSTER, CHAIN

61410-40400

Unavailable

30

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

31

.NUT This part replaces 08310-12068.

08310-00067

$2.13

32

TIRE (51018) This part replaces 65100-40430.

65100-14230

Unavailable

33

TUBE, WHEEL INNER (5.10-18)

65200-40430

Unavailable

34

IN TUBE PROTECT This part replaces 65261-15030.

55261-26F10

$4.39

35

RIM, WHEEL (2.15A-18)

65311-40300

Unavailable

36

NO DESCRIPTION AVAILABLE This part replaces 65320-40300.

65320-40301

Unavailable

37

STOPPER, BEAD This part replaces 65270-32101.

65270-28E00

$58.75

38

WASHER This part replaces 08322-11088.

08322-01087

$2.13

39

NUT This part replaces 08310-12088.

08310-00087

$2.13
