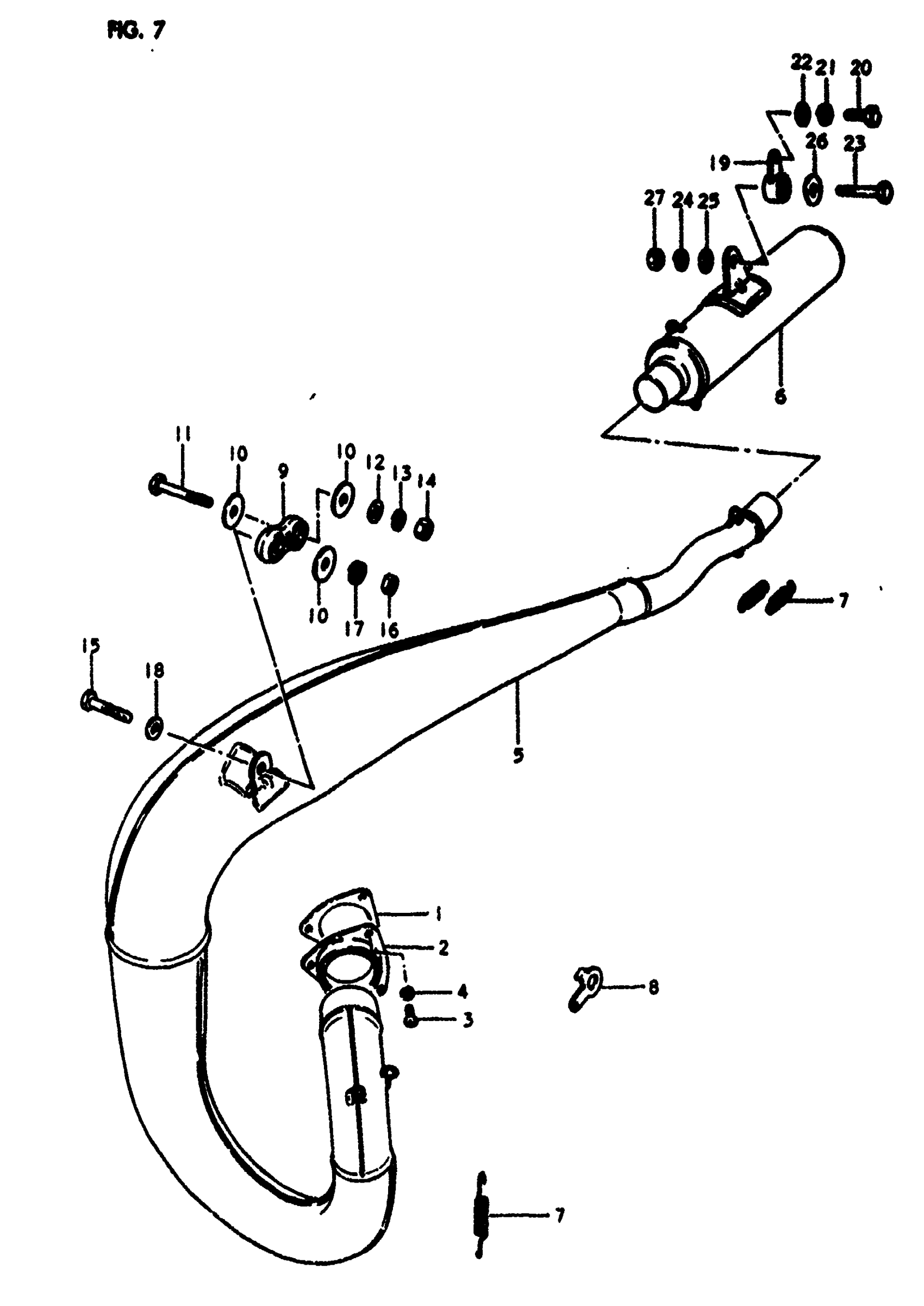

Suzuki RM250 (1980) MUFFLER Diagram

#

Description
Price

1

EXH FLANGE GASK This part replaces 14181-16300.

14181-16300-H17

$5.55

2

FLANGE, EXHAUST PIPE This part replaces 14170-16300.

14170-16301

Unavailable

3

SCREW This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE This part replaces 14310-40300.

14310-40300-H01

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 14330-40300.

14330-40300-H01

Unavailable

7

SPRING

09443-11002

$3.10

8

HOOK

14411-40300

Unavailable

9

DAMPER, MUFFLER

14770-40000

Unavailable

10

WASHER This part replaces 09160-08035.

09160-08130

$2.03

11

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

12

WASHER

06322-11066

Unavailable

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

NUT This part replaces 08310-12088.

08310-00087

$2.13

15

BOLT This part replaces 01107-06358.

64455-07L00

$1.59

16

NUT This part replaces 08310-12088.

08310-00087

$2.13

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

DAMPER, REAR This part replaces 14770-16440.

14700-40810

Unavailable

20

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

WASHER This part replaces 08322-11088.

08322-01087

$2.13

23

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

WASHER This part replaces 08322-11088.

08322-01087

$2.13

26

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

27

NUT This part replaces 08310-12088.

08310-00087

$2.13
