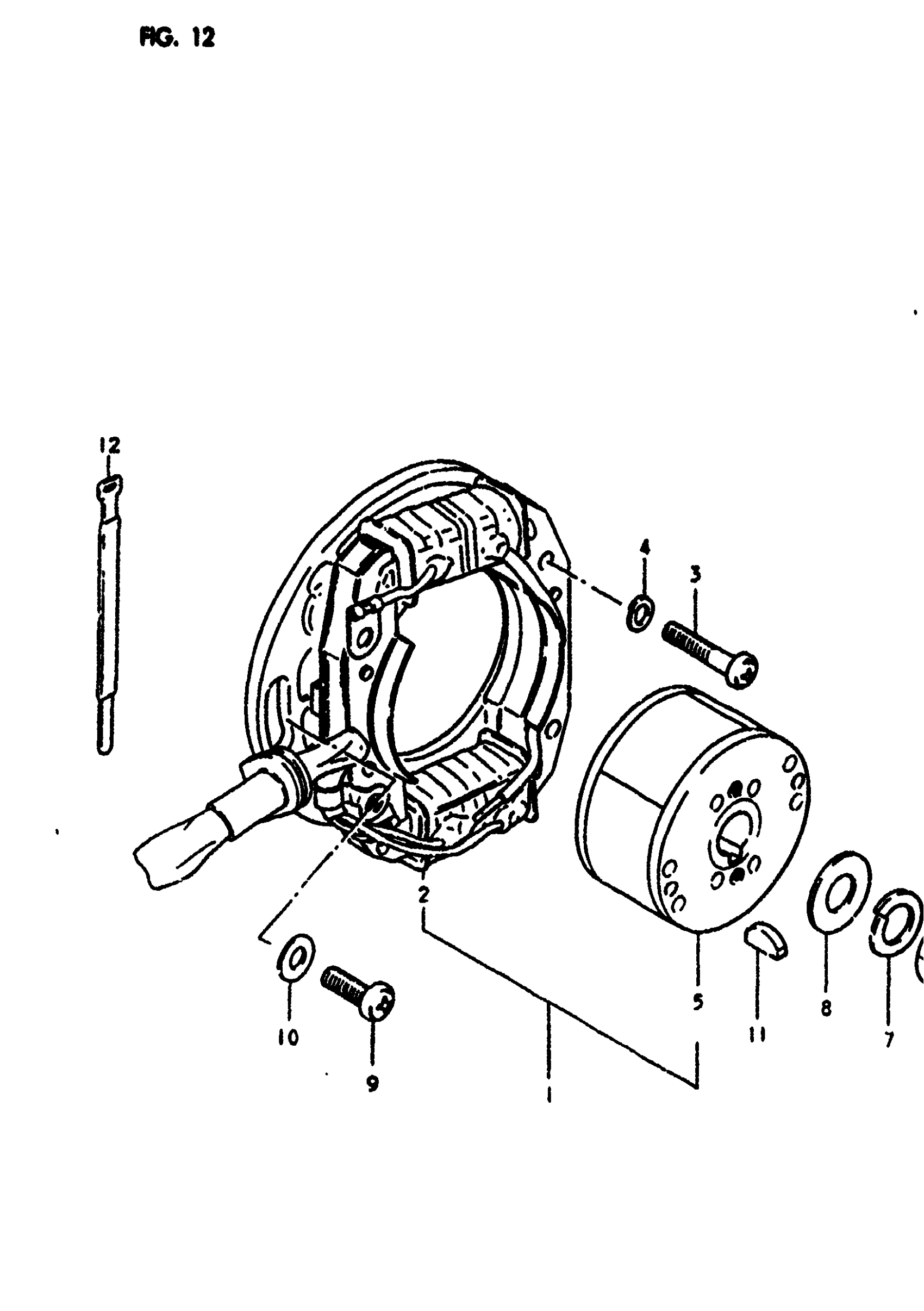

Suzuki RM250 (1980) MAGNETO Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 32100-40310.

32100-40311

Unavailable

2

STATOR ASSY

32101-40310

Unavailable

3

SCREW This part replaces 02112-05206.

02112-0520B

$1.84

4

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

5

ROTOR This part replaces 32102-40310.

32102-14310

Unavailable

6

NUT This part replaces 09140-10003.

09140-10041

$2.38

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

WASHER This part replaces 08322-21108.

08322-01107

$2.15

9

SCREW This part replaces 02112-06168.

02112-06167

$1.49

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

KEY This part replaces 08341-31049.

09420-04008

$3.42

12

CLAMP This part replaces 09407-18301.

09407-18302

$2.28
