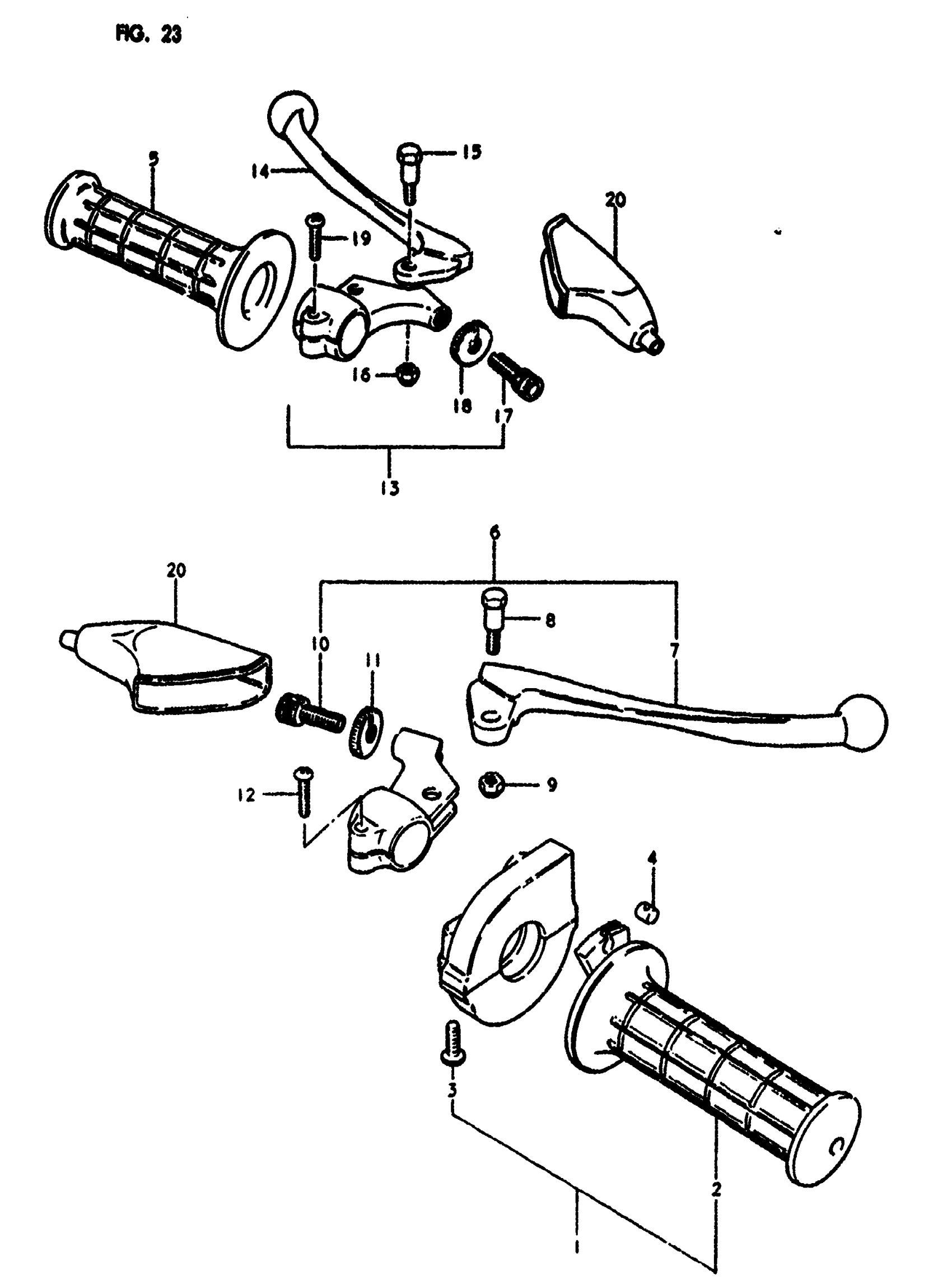

Suzuki RM250 (1980) HANDLE GRIP Diagram

#

Description
Price

1

CASE ASSY, THROTTLE | Includes Item(s) 2 - 3 This part replaces 57100-40200.

57100-40230

Unavailable

2

GRIP, THROTTLE

57110-40200

Unavailable

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

PIECE, THROTTLE END

58631-07010

$3.56

5

GRIP LH This part replaces 57211-40200.

57211-27C00

$12.28

6

LEVER ASSY, BRAKE | Includes Item(s) 7 - 12

57300-32500

Unavailable

7

LEVER, BRAKE

57420-29400

Unavailable

8

BOLT This part replaces 57431-11011.

57431-11013

$6.31

9

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

10

ADJUSTER, CABLE

57441-11010

$5.62

11

NUT

57442-11010

$2.79

12

SCREW This part replaces 02112-06208.

02112-06207

$1.78

13

LEVER ASSY, CLUTCH | Includes Item(s) 14 - 19

57500-29401

Unavailable

14

LEVER, CLUTCH This part replaces 57620-45020.

57620-45010

Unavailable

15

BOLT This part replaces 57431-11011.

57431-11013

$6.31

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

ADJUSTER, CABLE

57441-26010

$4.48

18

NUT

57442-11010

$2.79

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56
