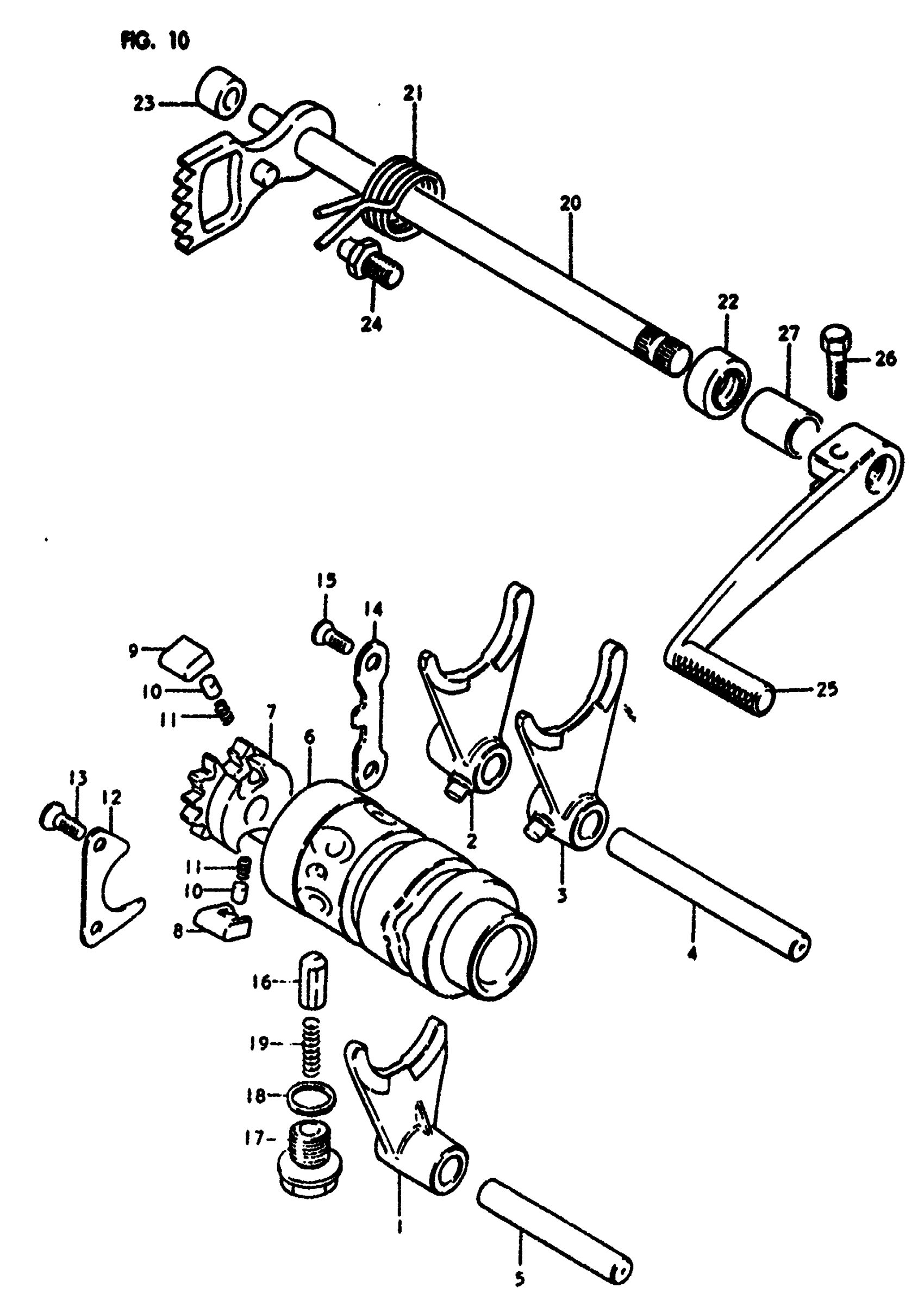

Suzuki RM250 (1980) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO. 1

25211-40300

Unavailable

2

FORK, GEAR SHIFTING NO. 2

25221-40300

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 25231-40301.

25231-40X01

Unavailable

4

SHAFT, NO.2 This part replaces 25411-40400.

25411-14331

$23.07

5

SHAFT, NO.1 This part replaces 25421-40400.

25421-35410

$23.47

6

CAM This part replaces 25310-40400.

25310-14213

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

10

PIN

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER, PAIL

25331-16500

Unavailable

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM This part replaces 25341-40400.

25341-40001

$12.17

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

17

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

18

GASKET

09168-14004

$1.83

19

SPRING

09440-05007

$1.82

20

NO DESCRIPTION AVAILABLE This part replaces 25510-40300.

25510-403V0

Unavailable

21

SPRING

09444-26013

$3.10

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

23

SPACER

09180-12083

$2.45

24

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

25

LEVER,GEAR SHIF This part replaces 25610-40302.

25600-40304

Unavailable

26

BOLT This part replaces 09100-06091.

01500-06207

$2.28

27

CUSHION

09320-13001

Unavailable
