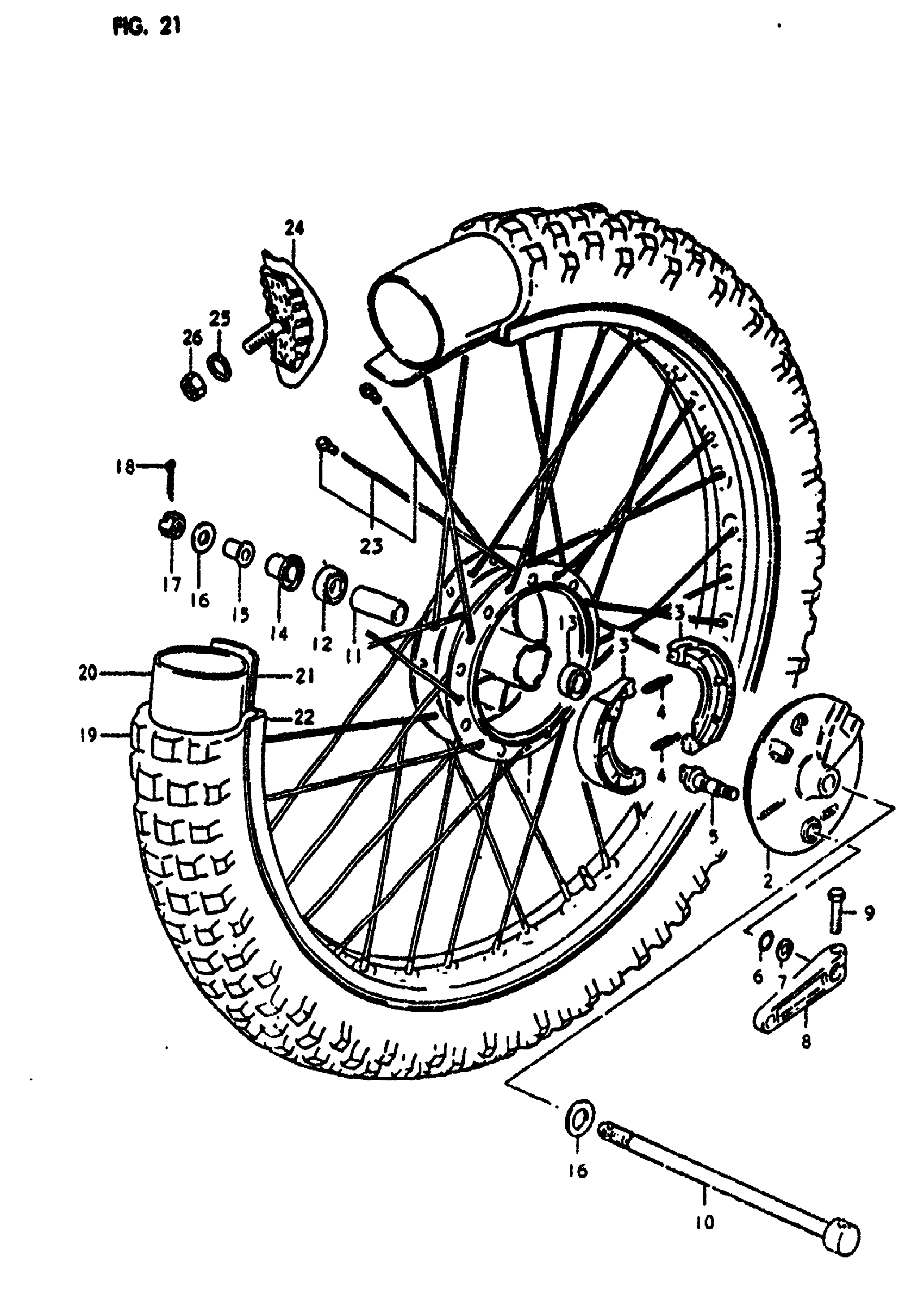

Suzuki RM250 (1980) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54110-40302

Unavailable

2

PANEL, FRONT HUB

54210-40301

Unavailable

3

SHOE SET, REAR BRAKE This part replaces 54410-40300.

64400-02830

$55.17

4

SPRING

55420-41100

Unavailable

5

CAM, BRAKE This part replaces 54440-40301.

54440-40302

Unavailable

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

LEVER, BRAKE CAM

54451-41100

Unavailable

9

BOLT This part replaces 01107-06258.

01500-06257

$1.97

10

AXLE, FRONT

54711-30501

Unavailable

11

SPACER (12.5X19X52) This part replaces 09180-12041.

09180-12144

$10.30

12

BEARING This part replaces 08123-62017.

08133-62017

$18.47

13

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

14

SPACER This part replaces 54740-40300.

54741-41100

$15.13

15

SPACER, RH

54751-40300

Unavailable

16

WASHER This part replaces 08322-11128.

08322-01127

$1.84

17

NUT This part replaces 08314-41128.

08314-4012A

$2.50

18

PIN This part replaces 04111-30308.

04111-3030A

$1.49

19

TIRE, FRONT (3.00-21) This part replaces 55100-40430.

55100-14230

Unavailable

20

TIRE, FRONT This part replaces 55200-28330.

55200-16511

$36.73

21

PROTECTOR, INNER TUBE This part replaces 55261-28330.

55261-14540

$3.83

22

NO DESCRIPTION AVAILABLE This part replaces 55311-40400.

55311-40201

Unavailable

23

SPOKE SET

55320-40410

Unavailable

24

STOPPER, BEAD This part replaces 65270-30001.

65270-43D00

$58.75

25

WASHER This part replaces 08322-11088.

08322-01087

$2.13

26

NUT This part replaces 08310-12088.

08310-00087

$2.13
