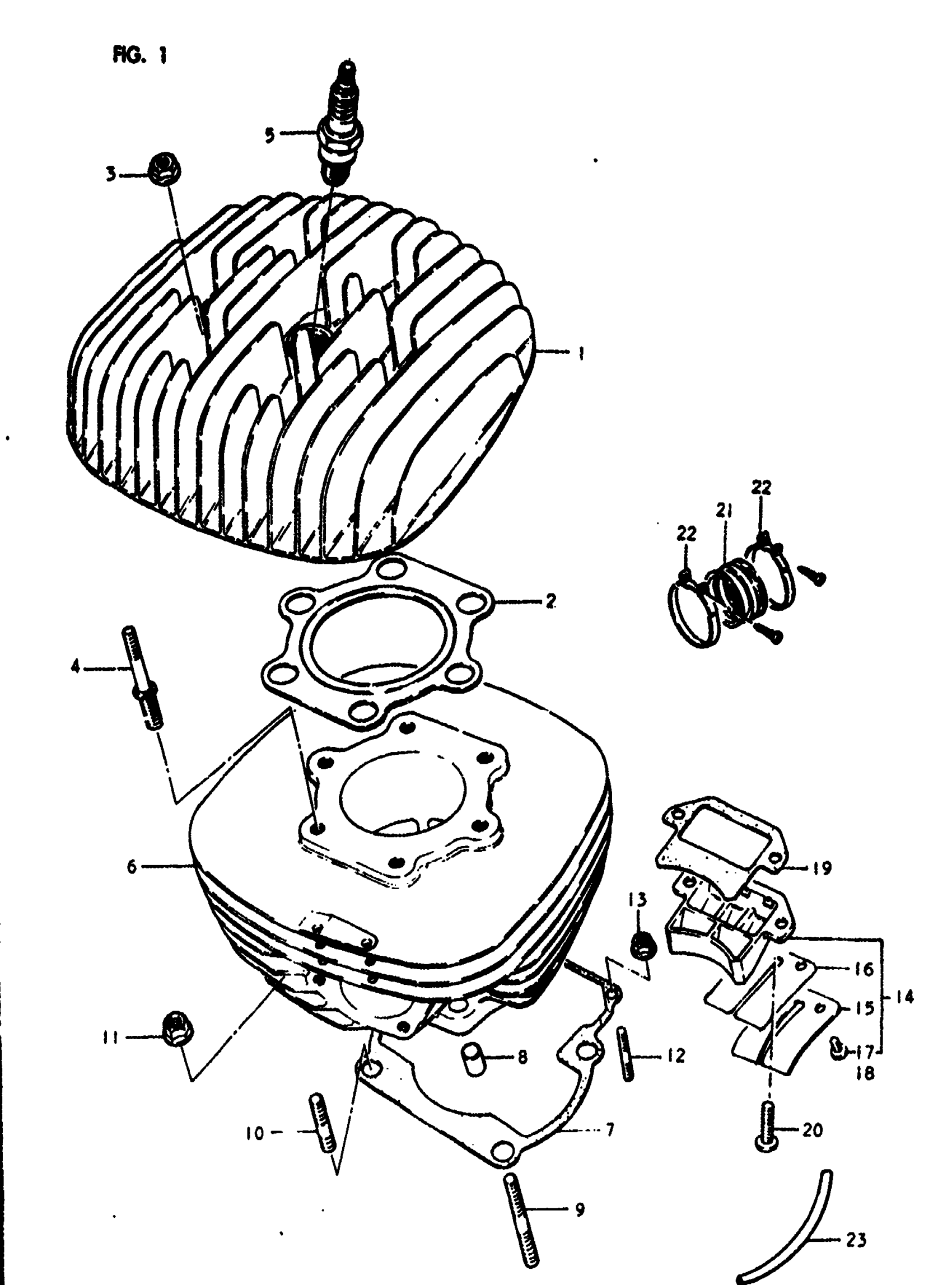

Suzuki RM250 (1980) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-40301

Unavailable

2

GASKET (T:0.8)

11141-40310

Unavailable

2

GASKET CYLINDER | OPT This part replaces 11141-40720.

11141-40303

Unavailable

3

NUT This part replaces 08316-16083.

08316-1008B

$2.66

4

STUD BOLT

09108-08018

$3.18

5

SPARK PLUG BR9E This part replaces 09482-00209.

09482-00349

$7.22

5

SPARK PLUG (CHAMPION, N-2G) | EXECUTED LOCALLY

09482-00213

Unavailable

6

NO DESCRIPTION AVAILABLE This part replaces 11210-40302.

11210-40303

Unavailable

7

GASKET,CYLINDER This part replaces 11241-40301.

11241-40301-H17

Unavailable

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

10

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

11

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

13

NUT This part replaces 08316-16068.

08319-31067

$2.03

14

REED VALVE ASSY | Includes Item(s) 15 - 18 This part replaces 13150-40300.

13150-40400

Unavailable

15

STOPPER

13152-40400

Unavailable

16

REED VALVE

13153-40300

Unavailable

17

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

GASKET,REED VAL This part replaces 13156-40400.

13156-40400-H17

Unavailable

20

SCREW | Includes Item(s) 21 This part replaces 02112-06168.

02112-06167

$1.49

21

PIPE, INTAKS

13111-40401

Unavailable

22

CLAMP This part replaces 09402-56306.

09402-56901

$5.36

23

HOSE 4X7X600 This part replaces 09343-04010.

09352-40706-600

$5.11
