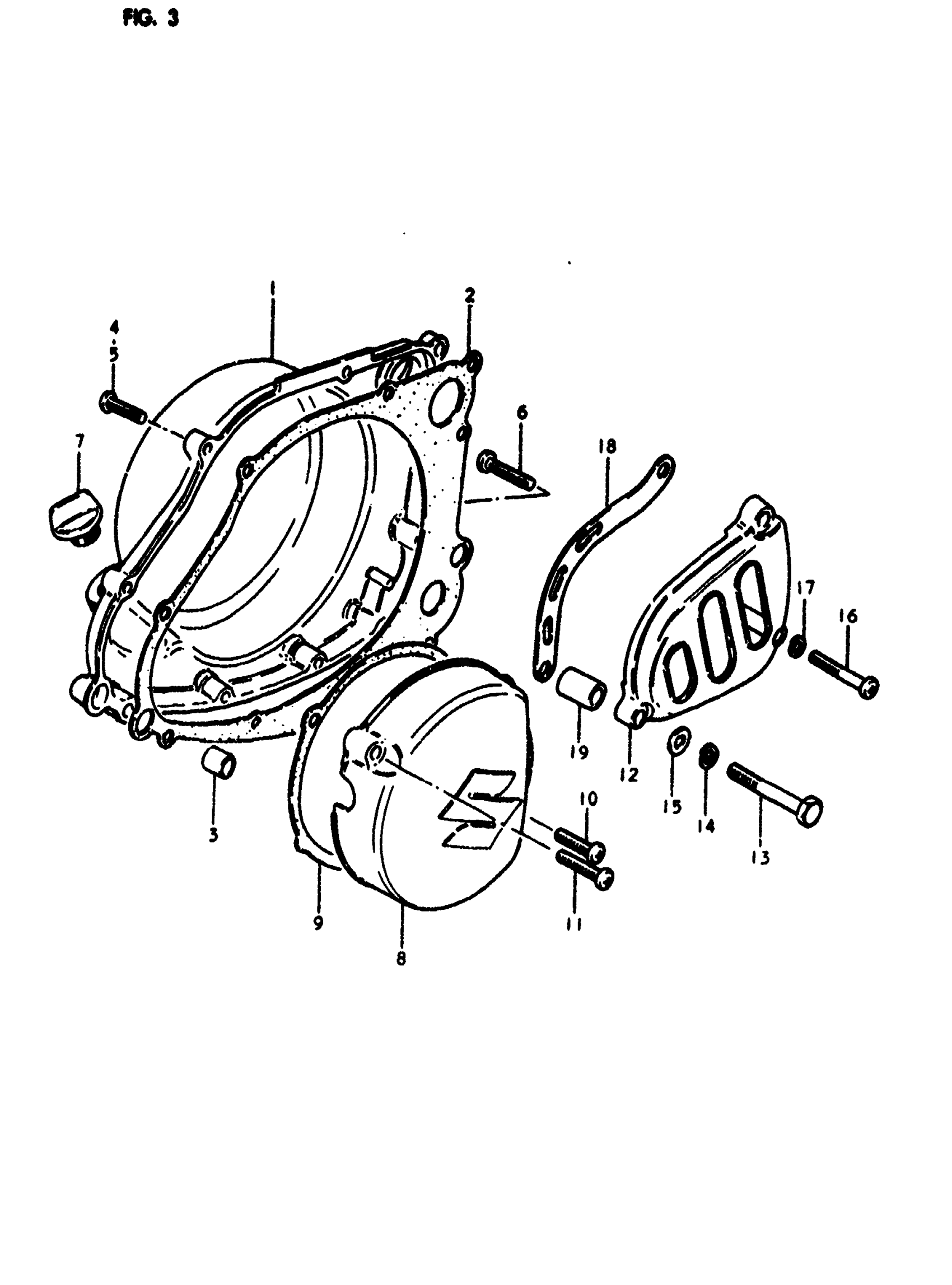

Suzuki RM250 (1980) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-40300

Unavailable

2

GASKET CLUTCH C This part replaces 11482-40300.

11482-40300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW This part replaces 02112-06308.

02112-06307

$1.97

6

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

7

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

8

COVER, MAGNETO This part replaces 11351-40400.

11351-40402

Unavailable

9

GASKET,MAGNETO This part replaces 11483-41301.

11483-41312-H17

Unavailable

10

SCREW This part replaces 02112-06208.

02112-06207

$1.78

11

SCREW This part replaces 02112-06308.

02112-06307

$1.97

12

COVER, ENGINE SPROCKET

11360-40401

Unavailable

13

BOLT This part replaces 01107-08558.

01500-08557

$3.16

14

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

PLATE, FRONT CHAIN GUIDE

27641-40400

Unavailable

18

PLATE, FRONT CHAIN GUIDE (13T) | OPT; Includes Item(s) 19

27641-40300

Unavailable

19

CER

09180-08078

Unavailable
