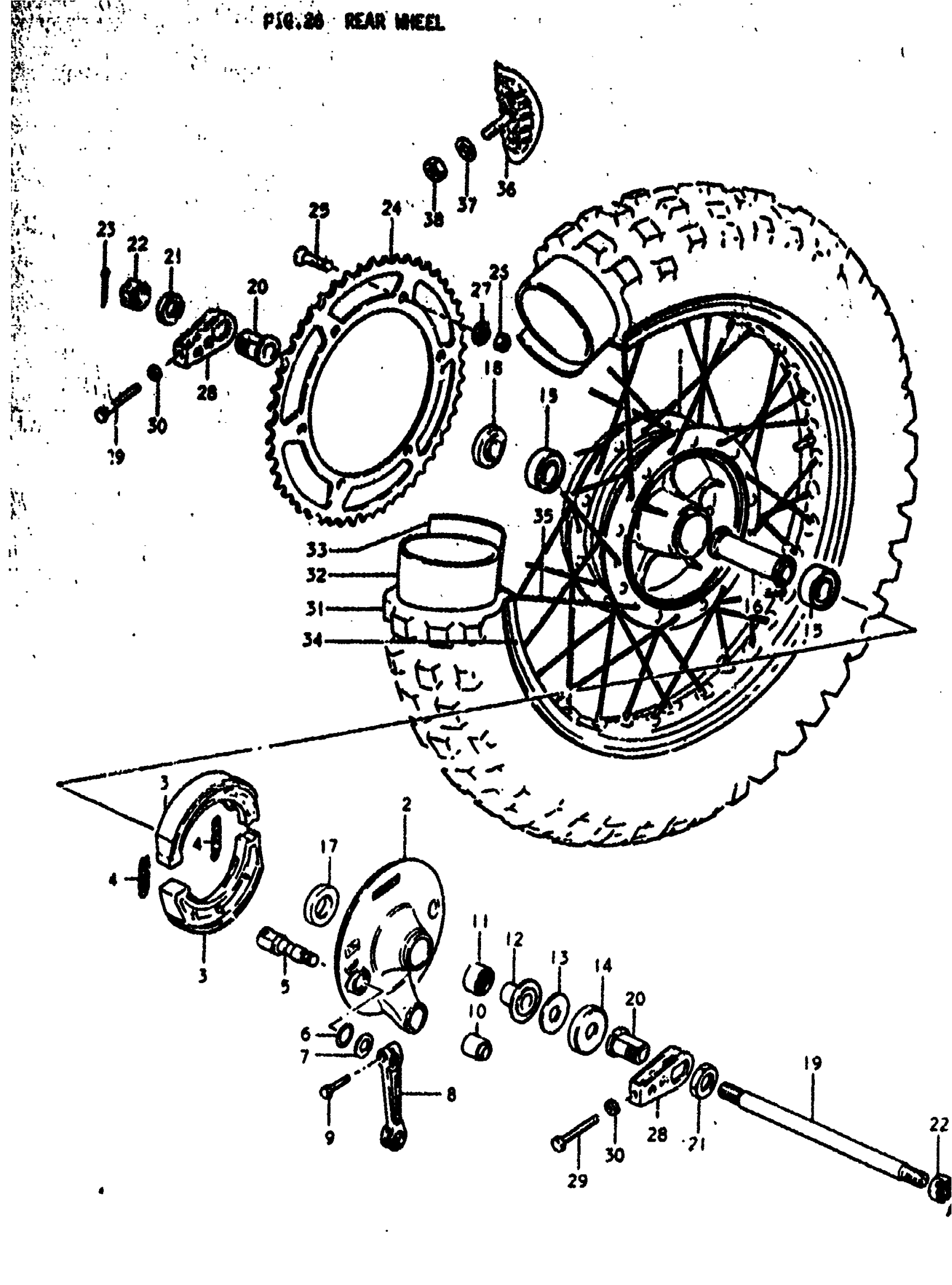

Suzuki RM250 (1979) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL This part replaces 64110-40300.

64110-40304

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 64210-40303.

64210-40306

Unavailable

3

SHOE SET, BRAKE This part replaces 64410-40300.

64400-40850

Unavailable

4

SPRING

64430-40300

Unavailable

5

CAM, BRAKE

54441-01002

$18.80

6

DUST SEAL

09280-12001

$2.90

7

WASHER

09160-12011

$1.54

8

LEVER, BRAKE CAM

64451-40301

Unavailable

9

BOLT This part replaces 01107-06258.

01500-06257

$1.97

10

BUSH, TORQUE LINK

09319-10008

$7.40

11

BEARING, HUB PANEL

09263-22025

Unavailable

12

SPACER, HUB PENEL

64213-40300

Unavailable

13

THRUST WASHER | 15.1x34x1 This part replaces 09160-15028.

08211-15341

$2.85

14

COVER This part replaces 64845-40300.

61262-22A01

$6.05

15

BEARING, REAR HUB

08123-62027

$18.57

16

NO DESCRIPTION AVAILABLE This part replaces 64730-40300.

64730-40301

Unavailable

17

SPACER, AXLE RH

64741-40300

Unavailable

18

SPACER, AXLE LH

64750-40300

Unavailable

19

AXLE, REAR

64711-40300

Unavailable

20

SPACER, CHAIN ADJUSTER

64781-40300

Unavailable

21

NUT This part replaces 09140-22007.

09140-22006

Unavailable

22

NUT This part replaces 09141-14005.

09141-14004

$3.91

23

PIN This part replaces 04111-30408.

04111-3040A

$1.59

24

SPROCKET, REAR (NT:50) | NT:50 This part replaces 64511-40300.

64511-40301

Unavailable

25

SCREW This part replaces 09120-08003.

09120-08004

$2.40

26

NUT This part replaces 08319-31088.

08319-3108A

$2.32

27

WASHER This part replaces 08322-11088.

08322-01087

$2.13

28

ADJUSTER, CHAIN

61410-40400

Unavailable

29

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

30

NUT This part replaces 08310-12088.

08310-00087

$2.13

31

TIRE (51018) | 5.10-18 This part replaces 65100-40430.

65100-14230

Unavailable

32

TUBE, WHEEL INNER | 5.10-18

65200-40430

Unavailable

33

IN TUBE PROTECT This part replaces 65261-15030.

55261-26F10

$4.39

34

RIM, WHEEL | 2.15A-18

65311-40300

Unavailable

35

NO DESCRIPTION AVAILABLE This part replaces 65300-40841.

65300-40842

Unavailable

36

STOPPER, BEAD This part replaces 65270-32101.

65270-28E00

$58.75

37

WASHER This part replaces 08322-11088.

08322-01087

$2.13

38

NUT This part replaces 08310-12088.

08310-00087

$2.13
