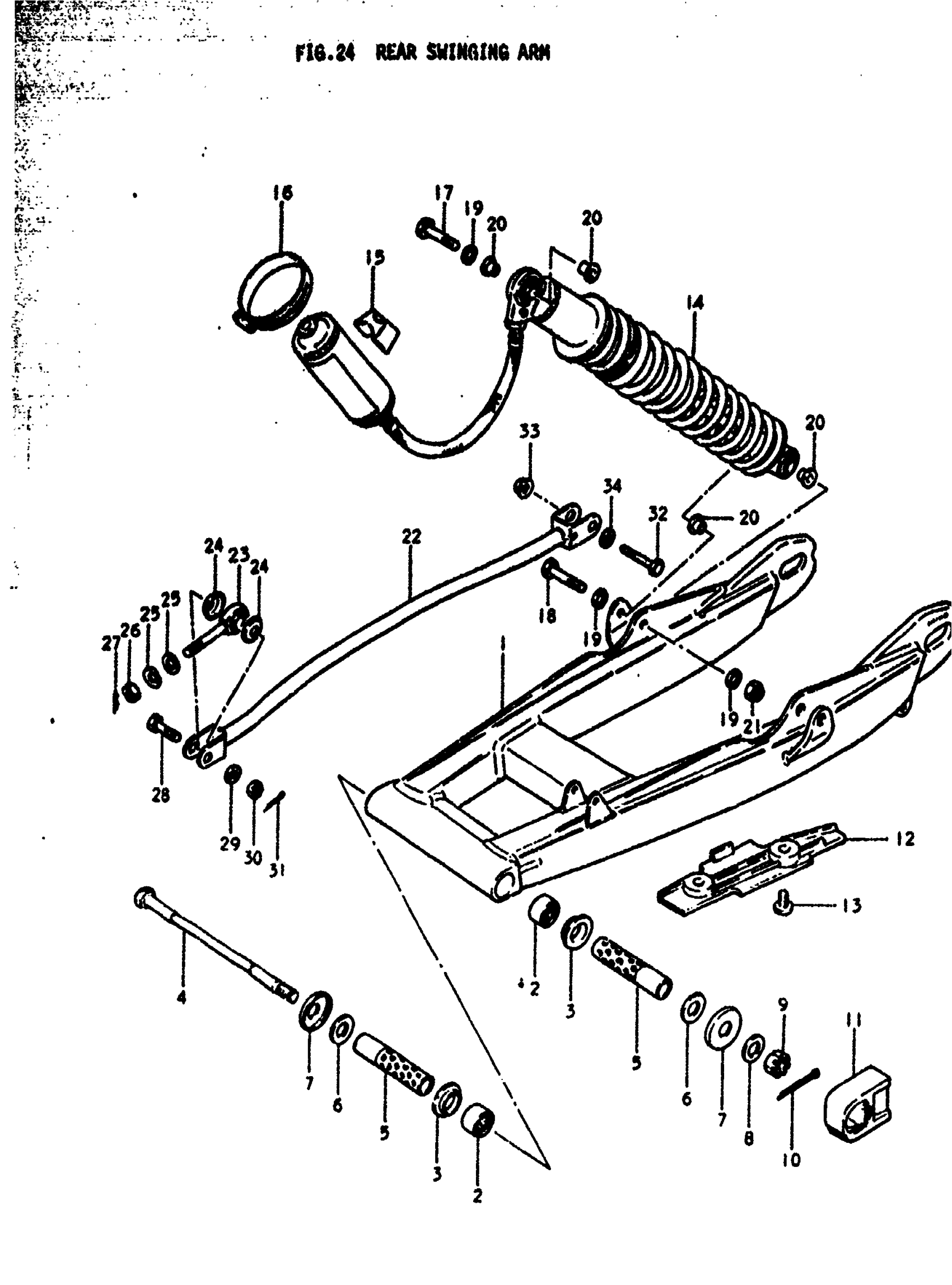

Suzuki RM250 (1979) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 3

61100-40851

Unavailable

2

BEARING This part replaces 09263-20031.

09263-20053

$27.58

3

BUSH This part replaces 61261-40401.

61261-27C00

Unavailable

4

SHAFT, PIVOT This part replaces 61211-40401.

61211-40402

Unavailable

5

SPACER,RR SWING This part replaces 61251-40401.

61251-40402

Unavailable

6

THRUST WASHER

08211-15322

$2.83

7

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

8

WASHER This part replaces 08322-11148.

08322-01147

$1.91

9

NUT, HUB This part replaces 08314-41148.

08314-4014B

$4.24

10

PIN This part replaces 04111-30308.

04111-3030A

$1.49

11

NO DESCRIPTION AVAILABLE This part replaces 61273-40402.

61273-40403

Unavailable

12

BUFFER, CHAIN DEFENSE NO.2

61274-40401

Unavailable

13

SCREW

02142-05107

$1.49

14

SHOCK ABSORBER ASSY, REAR

62100-40300

Unavailable

15

CUSHION

62331-41630

Unavailable

16

CLAMP

62332-41631

Unavailable

17

BOLT, UPPER

09100-08150

Unavailable

18

BOLT, LOWER

09100-08151

Unavailable

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

SPACER

62316-40200

Unavailable

21

NUT This part replaces 08319-21088.

08319-2108A

$2.12

22

TORQUE LINK, REAR

64310-40410

Unavailable

23

BEARING This part replaces 64337-40400.

64337-40401

Unavailable

24

DUST SEAL

64338-40400

Unavailable

25

WASHER

09164-08011

$2.71

26

NUT This part replaces 08310-12088.

08310-00087

$2.13

27

CLIP This part replaces 09385-10001.

09385-10005

$1.56

28

BOLT, FRONT

09101-08003

Unavailable

29

WASHER This part replaces 08322-11088.

08322-01087

$2.13

30

NUT This part replaces 08314-41088.

08314-4008B

$3.03

31

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

32

BOLT This part replaces 01107-10408.

01500-10407

$3.55

33

NUT This part replaces 08319-21108.

09159-10027

$3.10

34

WASHER This part replaces 08322-11108.

08322-01107

$2.15
