Partiron

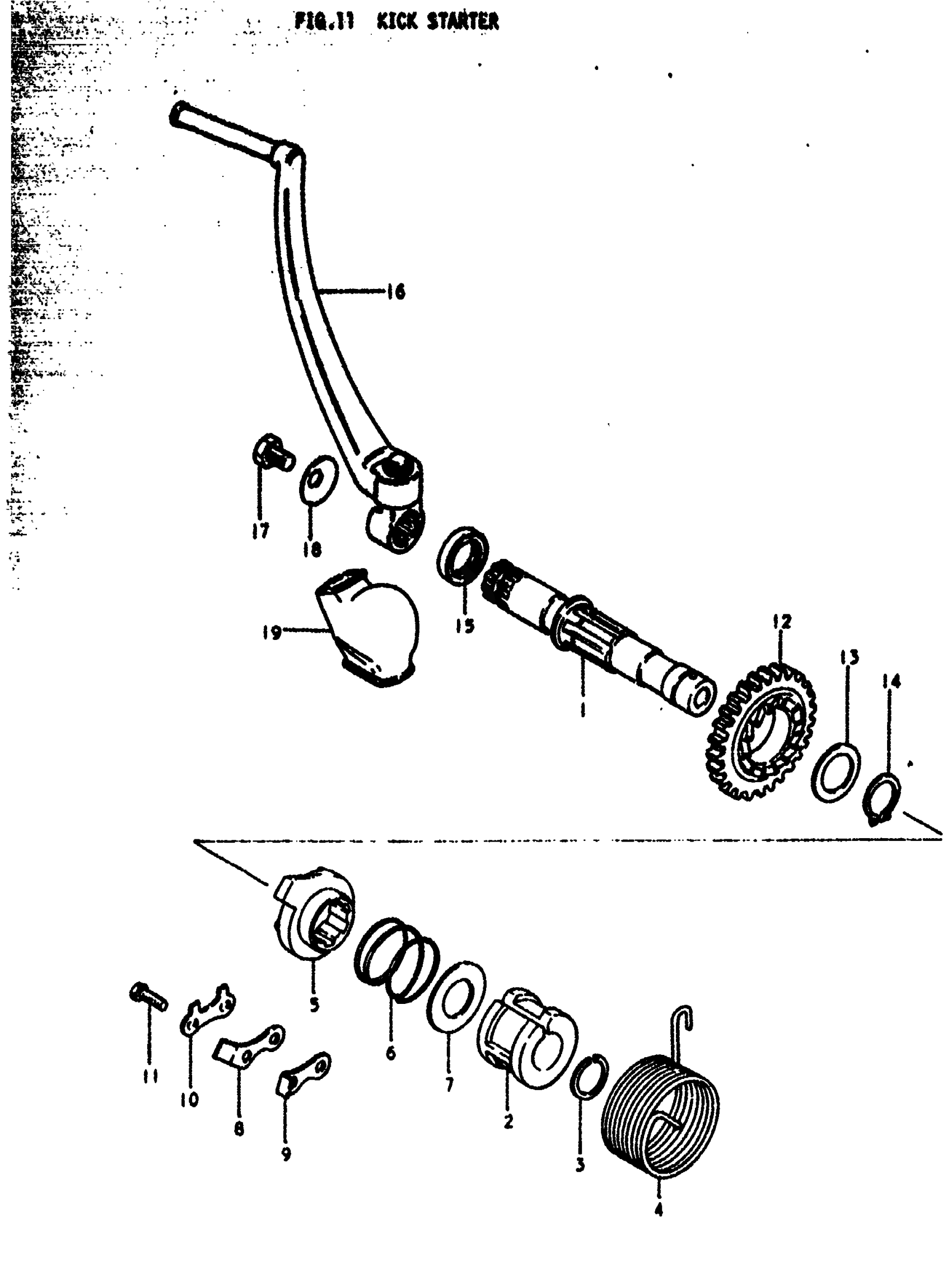

Suzuki RM250 (1979) KICK STARTER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 26211-40300.

26211-40301

Unavailable

2

GUIDE, SHAFT SPRING

26221-41100

$8.28

3

CIRCLIP

09380-17001

$1.98

4

SPRING

09448-45008

$6.99

5

STARTER, KICK This part replaces 26231-30001.

26231-22A10

$63.88

6

SPRING

09440-32002

$2.27

7

WASHER

08211-17342

$2.72

8

GUIDE, KICK STARTER

26232-40200

$7.08

9

STOPPER, KICK STARTER This part replaces 26233-40200.

26233-40201

$5.52

10

WASHER

09169-06003

$1.78

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

12

GEAR, KICK DRIVE (NT:27) This part replaces 26240-41101.

26240-13A00

Unavailable

13

SHIM This part replaces 08211-22261.

09181-22111

$3.75

14

CIRCLIP

09380-22006

$3.10

15

OIL SEAL

09283-20031

$5.24

16

LEVER ASSY,KICK This part replaces 26300-40300.

26300-40401

Unavailable

17

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

18

WASHER

09160-08046

Unavailable

19

COVER,KICK STAR This part replaces 26341-41100.

26341-41102

$7.54
