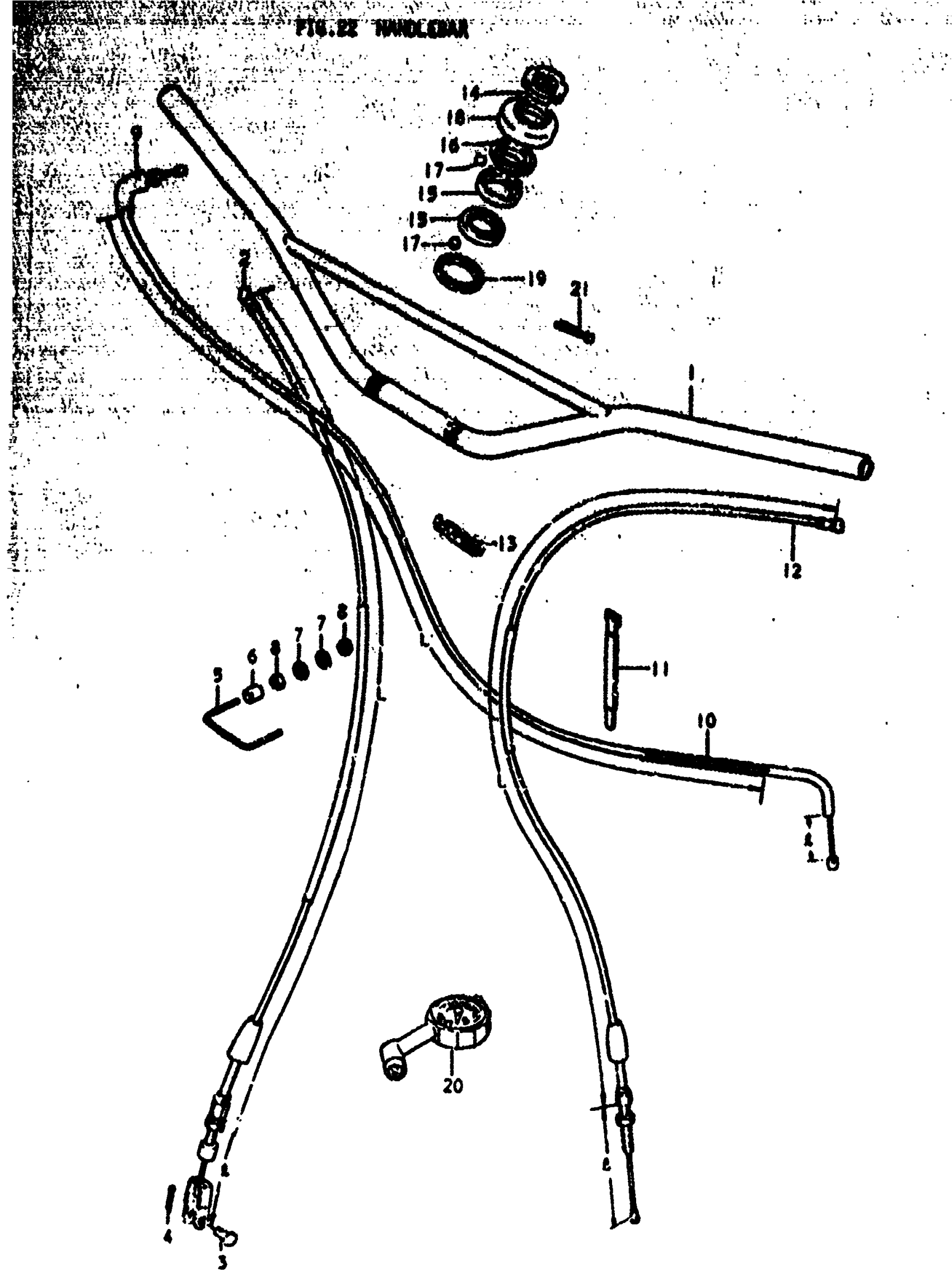

Suzuki RM250 (1979) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56110-40400-08C

Unavailable

2

CABLE,FR BRAKE This part replaces 58100-40400.

58100-37200

Unavailable

3

PIN

09200-05001

$1.65

4

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

5

GUIDE, CABIN

58626-41000

Unavailable

6

ROLLER

09306-04002

Unavailable

7

WASHER This part replaces 08322-21038.

08322-01037

$1.93

8

NUT This part replaces 08310-11038.

08310-0003B

$2.83

9

CABLE, THROTTLE This part replaces 58300-40400.

58300-40X05

Unavailable

10

PROTECTOP

58399-27100

$3.78

11

CLAMP | 1.180 This part replaces 09407-18301.

09407-18302

$2.28

12

CABLE ASSY, CLUTCH | L:1090, L:180

58200-40300

Unavailable

13

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

14

NUT, STEERING STEM

51631-40200

Unavailable

15

RACE, INNER This part replaces 51611-40200.

51611-40201

Unavailable

16

RACE,STEERING O This part replaces 51621-40200.

51621-08D00

Unavailable

17

STEEL BALL

06111-08003

$1.49

18

DUST SEAL, UPPER

51643-40200

$7.96

19

DUST SEAL, INNER

51651-40010

Unavailable

20

GAUGE, FRONT FORK AIR

96200-41330

Unavailable

21

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
