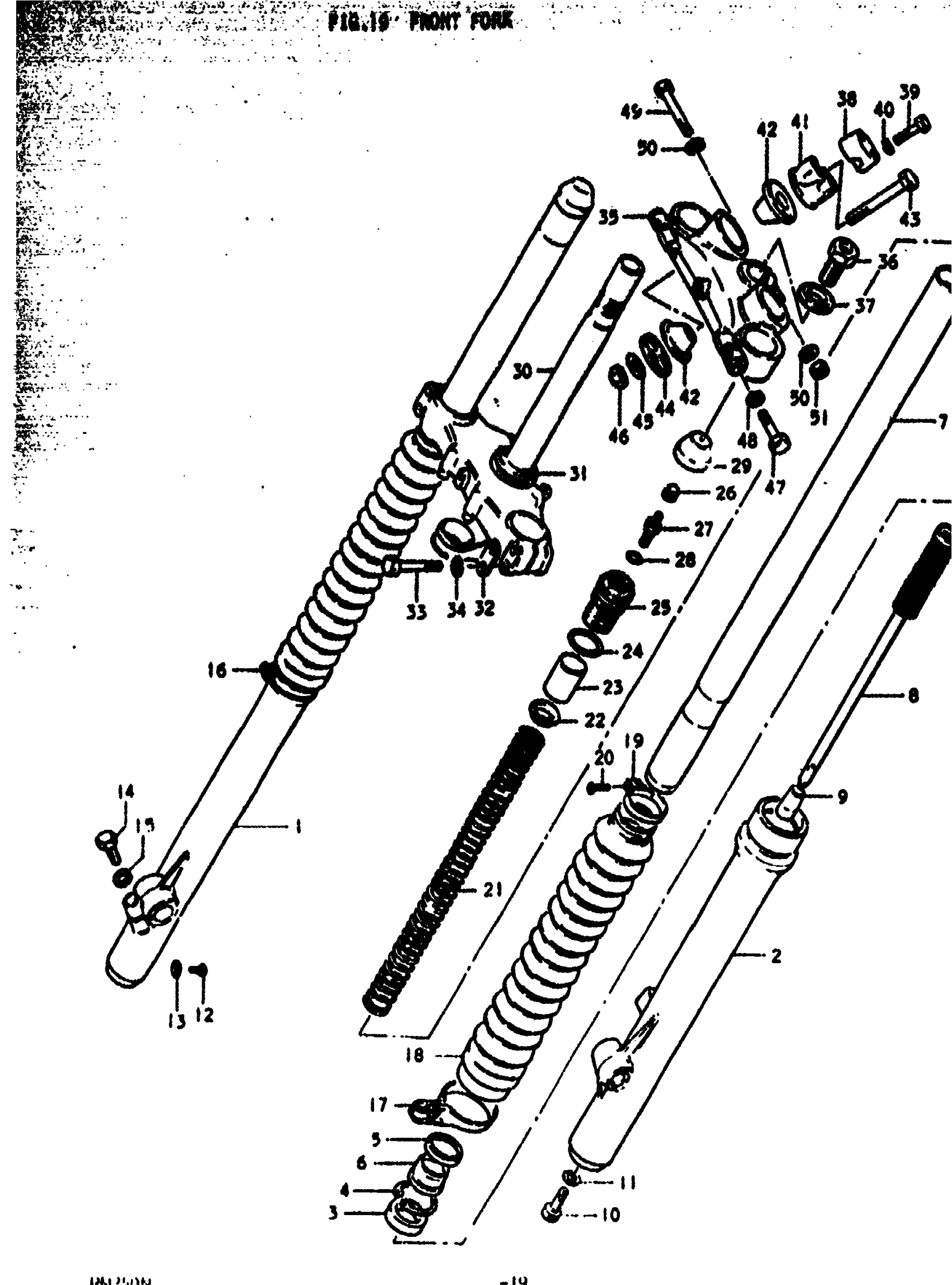

Suzuki RM250 (1979) FRONT FORK Diagram

#

Description
Price

0

FRONT FORK ASSY | Includes Item(s) 1 - 51

51100-40300-08C

Unavailable

1

OUTER TUBE, RH

51130-40300

Unavailable

2

OUTER TUBE, LH

51140-40300

Unavailable

3

OIL SEAL

51153-40300

Unavailable

4

SNAP RING

51156-40300

Unavailable

5

CASE, DUST SEAL

51149-40300

Unavailable

6

DUST SEAL This part replaces 51173-40300.

51173-40301

Unavailable

7

INNER TUBE

51110-40300

Unavailable

8

CYLINDER

51146-40200

Unavailable

9

PIECE, OIL LOCK

51195-40300

Unavailable

10

BOLT

51147-40300

$5.38

11

GASKET

51148-40300

$2.03

12

SCREW This part replaces 02111-04087.

02112-04087

$1.49

13

GASKET

51183-03010

$2.07

14

BOLT This part replaces 01107-08308.

01500-08307

$3.04

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

BAND, LOWER RH

51573-40300

Unavailable

17

CLIP, LOWER LH

51572-40300

Unavailable

18

BOOT

51571-40300

Unavailable

19

BAND BOOTS UPPE This part replaces 51575-40300.

51575-44B00

Unavailable

20

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

21

SPRING

51171-40300

Unavailable

22

GUIDE, SPRING

51172-40300

$6.48

23

SPACER

51176-40300

Unavailable

24

O RING

51117-40300

$3.09

25

CAP

51351-40300

Unavailable

26

CAP

51294-49000

Unavailable

27

VALVE, AIR

51293-49001

Unavailable

28

O RING

51117-41211

Unavailable

29

CAP

51189-41220

Unavailable

30

STEM, STEERING

51410-40300-08C

Unavailable

31

NO DESCRIPTION AVAILABLE This part replaces 51621-40030.

51621-40X00

Unavailable

32

CLIP This part replaces 58621-40300.

58621-40301

Unavailable

33

BOLT This part replaces 01107-08458.

01500-08453

$2.50

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

HEAD, STEERING STEM

51311-40400-08C

Unavailable

36

BOLT

51351-41320

Unavailable

37

WASHER

51356-41310

Unavailable

38

HOLDER, HANDLE UPPER

56211-40300-08C

Unavailable

39

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

40

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

41

HOLDER, HANDLE LOWER

56221-40400-08C

Unavailable

42

RUBBER

56241-40400

Unavailable

43

BOLT

51321-40400

Unavailable

44

COVER, RUBBER

51721-40400

Unavailable

45

WASHER This part replaces 51356-40400.

09160-10035

$1.78

46

NUT This part replaces 08319-21108.

09159-10027

$3.10

47

BOLT This part replaces 01107-10458.

01500-1045A

$3.04

48

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

49

BOLT This part replaces 01107-08508.

01500-08507

$3.05

50

WASHER This part replaces 08322-21088.

08322-01087

$2.13

51

NUT This part replaces 08310-12088.

08310-00087

$2.13
