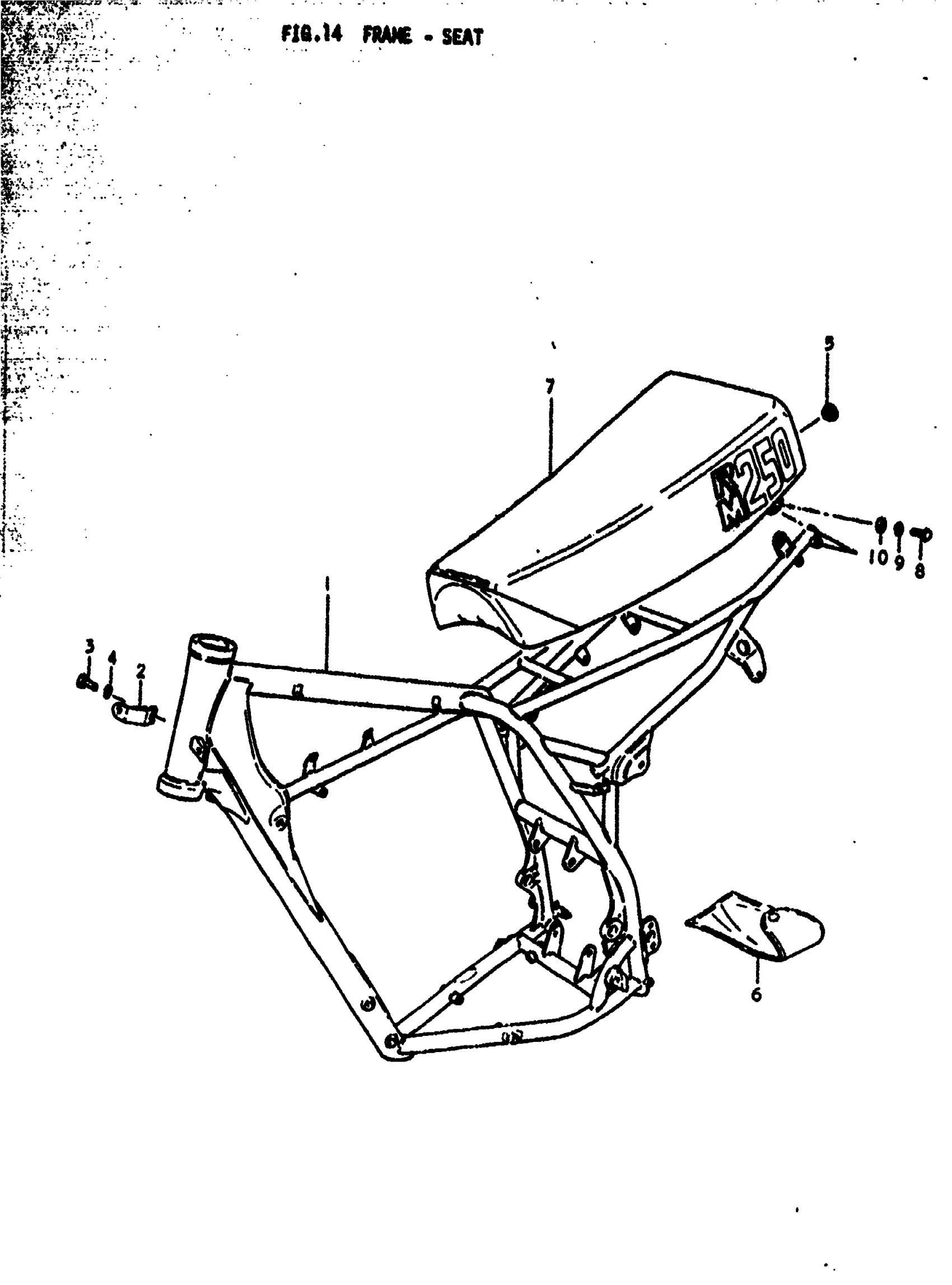

Suzuki RM250 (1979) FRAME - SEAT Diagram

#

Description

Price

1

FRAME

41100-40400-019

Unavailable

2

BRACKET, CDI UNIT

41890-41300

Unavailable

3

BOLT This part replaces 01107-06128.

01500-06127

$1.97

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

PLUG

09250-14005

$2.06

6

TOOL SET This part replaces 09800-00170.

09800-08800

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 45100-40300-865.

45100-40651-48F

Unavailable

8

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

10

WASHER (6.5X18X1.0) | 6.5x18x1

09160-06028

$1.49
