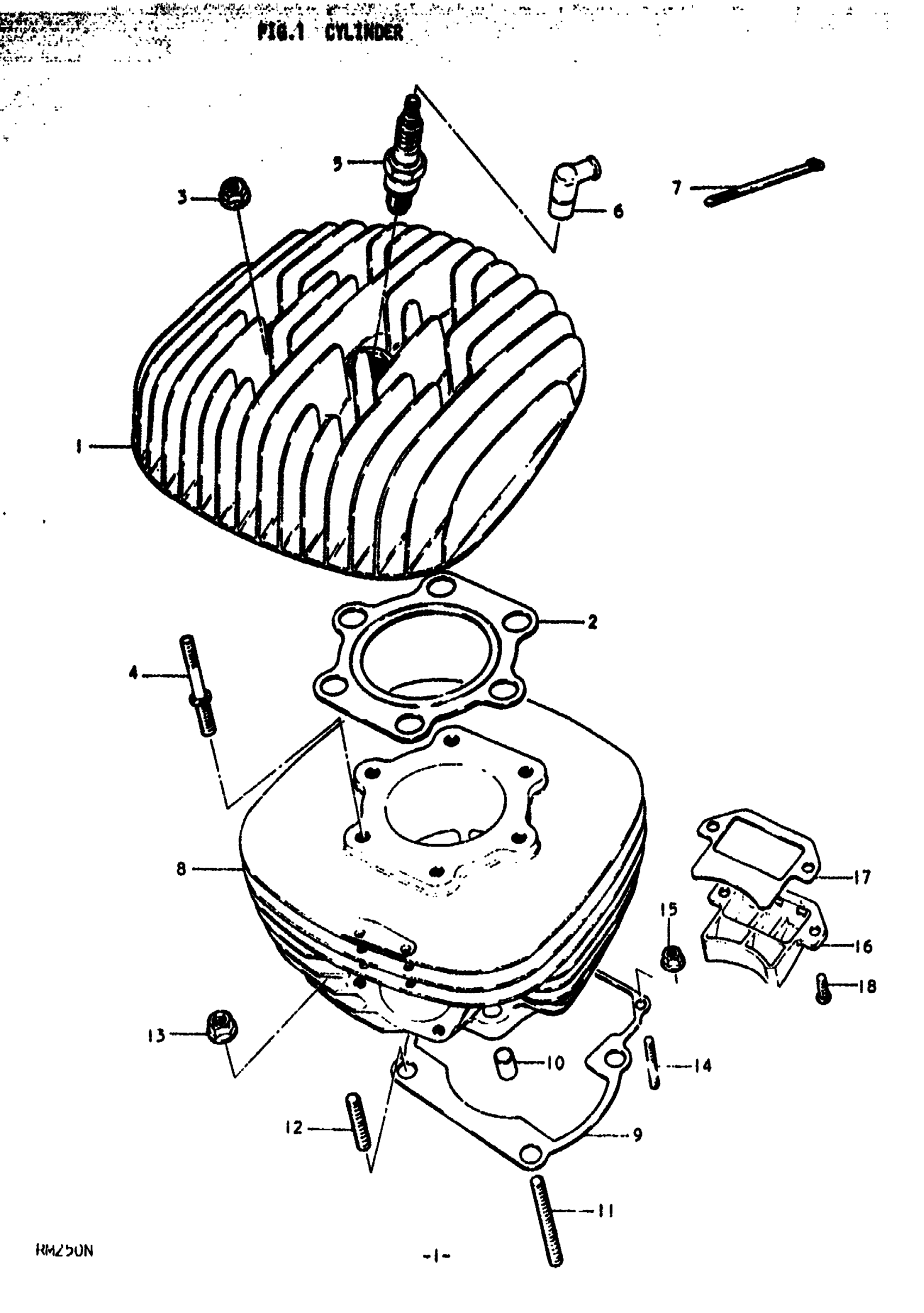

Suzuki RM250 (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-40301

Unavailable

2

GASKET CYLINDER This part replaces 11141-40301.

11141-40303

Unavailable

2

GASKET CYLINDER | 0.5 OPT This part replaces 11141-40720.

11141-40303

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

STUD BOLT

09108-08018

$3.18

5

SPARK PLUG BR9E | NGK, 89EGV This part replaces 09482-00209.

09482-00349

$7.22

5

SPARK PLUG | CHANPION N-2G

09482-00213

Unavailable

6

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

7

BELT

09407-09402

$2.45

8

NO DESCRIPTION AVAILABLE This part replaces 11210-40301.

11210-40303

Unavailable

9

GASKET,CYLINDER This part replaces 11241-40300.

11241-40301-H17

Unavailable

10

PIN This part replaces 09206-13001.

04211-13189

$2.19

11

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

$2.62

12

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

14

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

15

NUT This part replaces 08316-16068.

08319-31067

$2.03

16

REED VALVE ASSY This part replaces 13150-40300.

13150-40400

Unavailable

17

GASKET,REED VAL This part replaces 13156-40400.

13156-40400-H17

Unavailable

18

SCREW This part replaces 02112-06168.

02112-06167

$1.49
