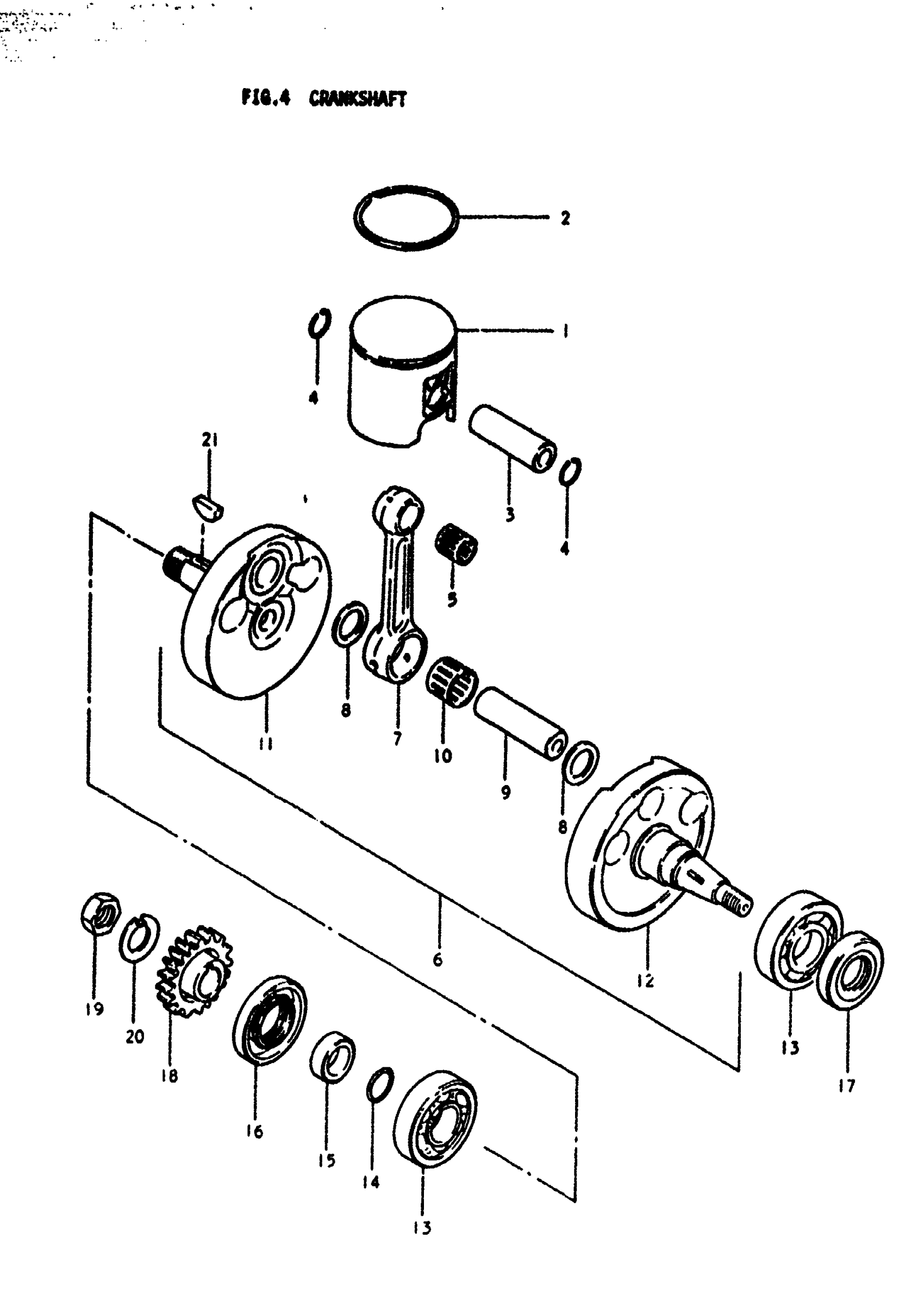

Suzuki RM250 (1979) CRANKSHAFT Diagram

#

Description
Price

1

PISTON (STD) This part replaces 12110-40301.

12110-40312

Unavailable

1

PISTON (OS:0.25) | OS:0.25 This part replaces 12110-40301-025.

12110-40312-025

Unavailable

1

PISTON (OS:0.50) | OS:0.5 This part replaces 12110-40301-050.

12110-40312-050

Unavailable

2

RING, PISTON This part replaces 12141-41600.

12141-41620

$25.78

2

RING, PISTON | OS:0.25

12141-41600-025

Unavailable

2

RING, PISTON | OS:0.5

12141-41600-050

$35.08

3

PIN, PISTON This part replaces 12151-92200.

12151-45501

$17.37

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN This part replaces 09263-18011.

09263-18016

$19.93

6

CRANKSHAFT ASSY | Includes Item(s) 7 - 10

12200-40300

Unavailable

7

ROD, CONNECTING

12161-40300

Unavailable

8

THRUST WASHER

09160-24014

Unavailable

9

PIN, CRANK This part replaces 12211-40300.

12211-05D00

$43.33

10

RN 24X30X17 BEA This part replaces 09263-24011.

09263-24027

$93.23

11

.CRANKSHAFT, RH | Includes Item(s) 12

12221-40300

Unavailable

12

CRANKSHAFT, LH

12261-40300

Unavailable

13

BEARING, AXLE SHAFT, LH This part replaces 09262-25047.

09262-25084

$39.10

14

O RING

09280-20004

$1.58

15

SPACER | 20x32x11

09180-20065

Unavailable

16

OIL SEAL, RH | 32x52x8.4

09289-32002

Unavailable

17

OIL SEAL, LH | 24x50x9

09283-24001

Unavailable

18

GEAR, PRIMARY DRIVE (NT:22) | NI:22 This part replaces 21111-40300.

21111-40302

Unavailable

19

NUT

09140-14017

Unavailable

20

WASHER

09164-14005

Unavailable

21

KEY

08341-31059

$2.48
