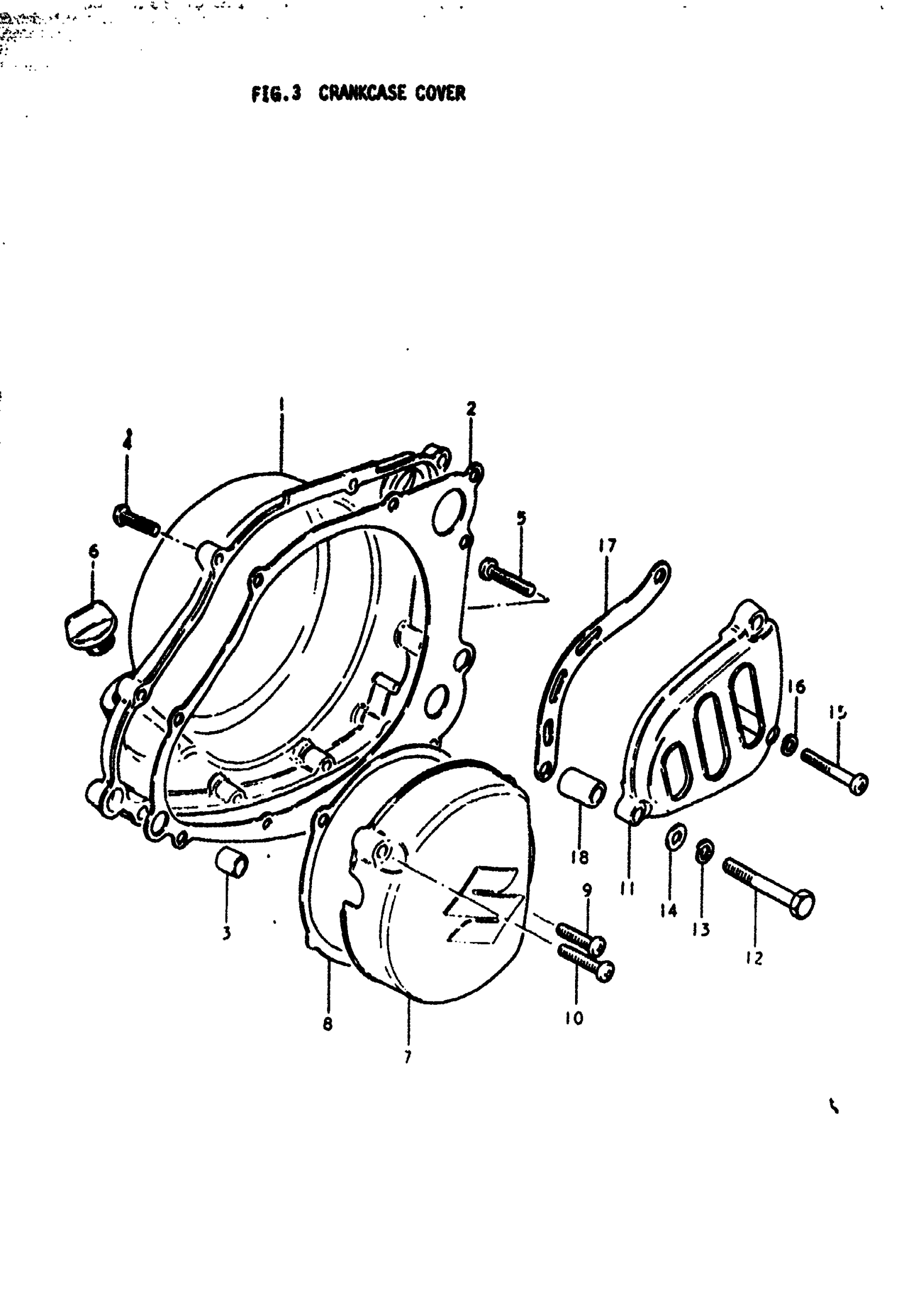

Suzuki RM250 (1979) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-40300

Unavailable

2

GASKET CLUTCH C This part replaces 11482-40300.

11482-40300-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

PLUG SET This part replaces 09259-20003.

09200-20811

$4.02

7

COVER, MAGNETO This part replaces 11351-40400.

11351-40402

Unavailable

8

GASKET,MAGNETO This part replaces 11483-41301.

11483-41312-H17

Unavailable

9

SCREW This part replaces 02112-06208.

02112-06207

$1.78

10

SCREW

02112-06307

$1.97

11

COVER, ENGINE SPROCKET This part replaces 11360-40400.

11360-40401

Unavailable

12

BOLT This part replaces 01107-08558.

01500-08557

$3.16

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

$1.99

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

PLATE, FRONT CHAIN GUIDE

27641-40400

Unavailable

17

PLATE, FRONT CHAIN GUIDE | OPT MARKED "137"

27641-40300

Unavailable

18

SPACER

09180-08078

Unavailable
