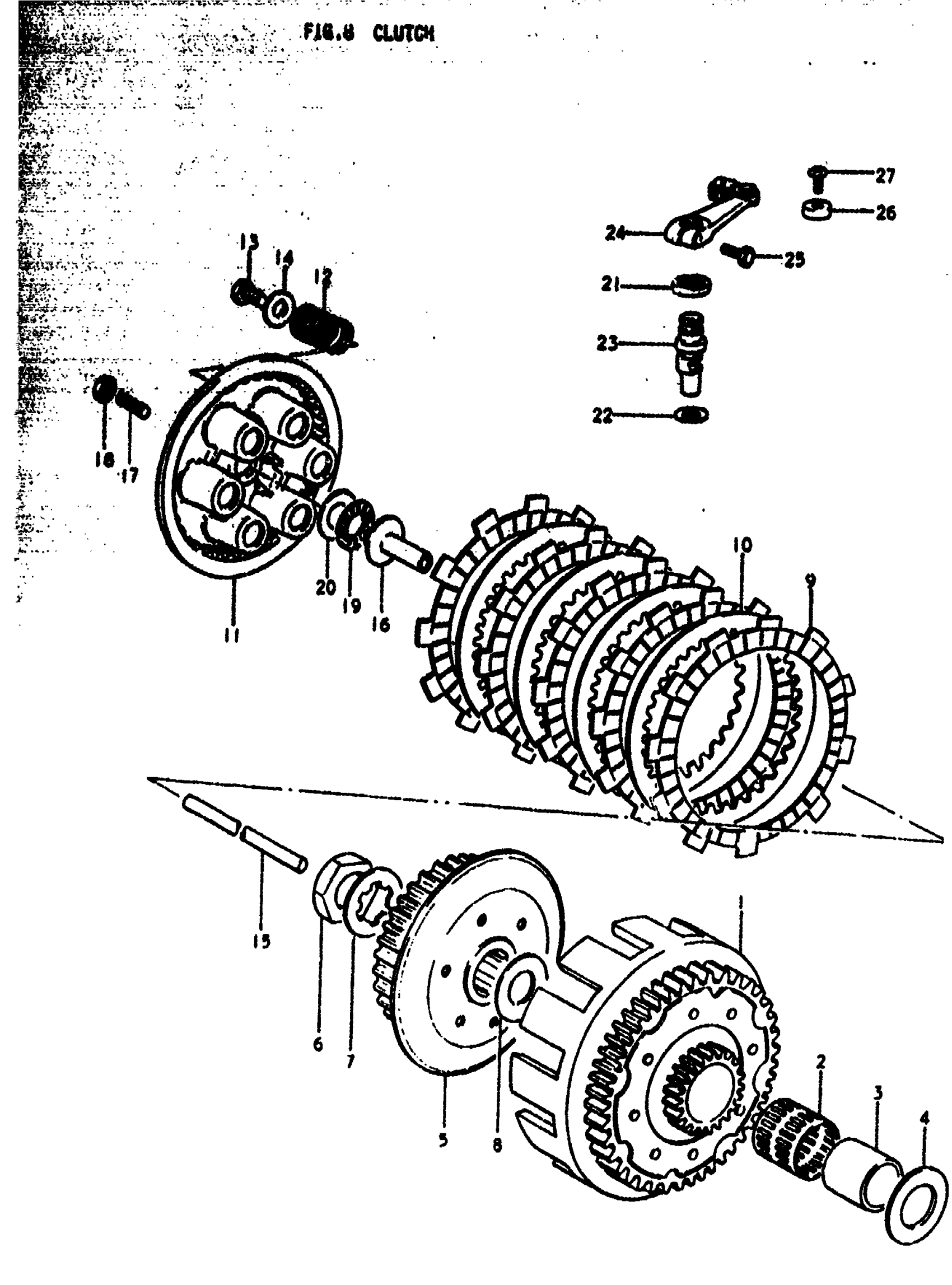

Suzuki RM250 (1979) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 21200-40300.

21200-40301

Unavailable

2

BEARING

09263-25004

Unavailable

3

SPACER | 20x25x26 This part replaces 09180-20025.

09180-20076

Unavailable

4

THRUST WASHER | 20x38x2

09160-20028

Unavailable

5

HUB, SLEEVE This part replaces 21411-40300.

21411-40301

Unavailable

6

NUT This part replaces 09140-20002.

09140-20001

$3.37

7

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

8

THRUST WASHER | 20x38x2

09160-20028

Unavailable

9

PLATE, CLUTCH DRIVE NO.1 This part replaces 21441-40400.

21441-37400

$18.13

10

PLATE, CLUTCH DRIVEN This part replaces 21451-40001.

21451-31000

$10.40

11

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

12

SPRING

09440-19007

$2.52

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

15

ROD,CLUTCH PUSH,L This part replaces 23111-39101.

23111-15501

$13.30

16

PIECE, CLUTCH PUSH This part replaces 23121-40300.

23121-38201

$26.73

17

SCREW This part replaces 09134-06001.

09134-06010

$3.12

18

.NUT This part replaces 08310-22068.

08310-00067

$2.13

19

THRUST BEARING

09263-15003

$8.29

20

WASHER, CLUTCH PUSH | 15x28x1 This part replaces 09160-15015.

09160-15045

$3.89

21

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

22

WASHER (14.5X22X1) | 14.2x22x1 This part replaces 09160-14003.

09160-14054

$2.07

23

CAMSHAFT, RELEASE This part replaces 23122-40400.

23122-40902

Unavailable

24

ARM, RELEASE

23270-40300

Unavailable

25

BOLT This part replaces 01107-06208.

01500-06207

$2.28

26

STOPPER

23281-40300

Unavailable

27

SCREW This part replaces 02152-06168.

02112-16167

$3.15
