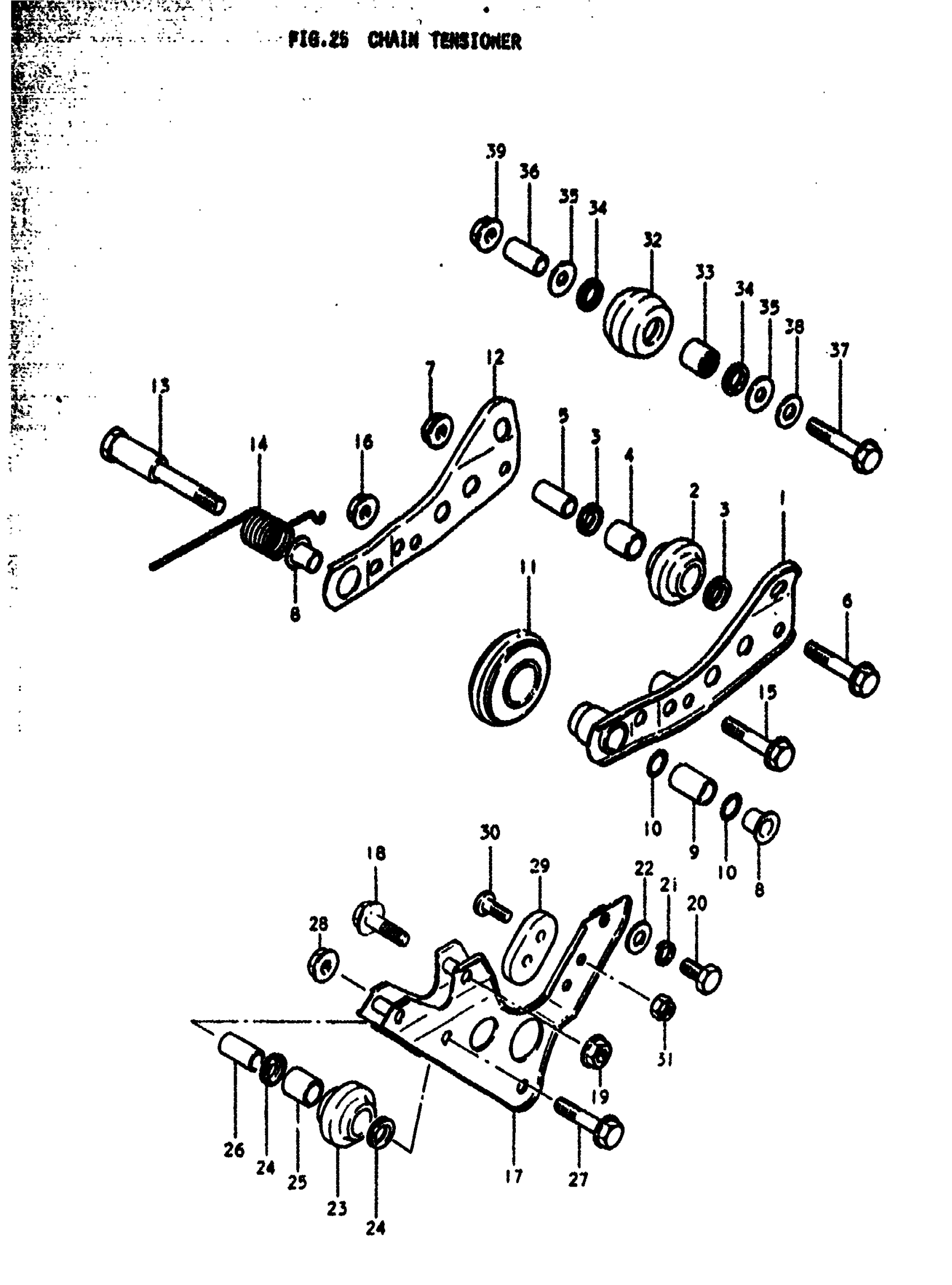

Suzuki RM250 (1979) CHAIN TENSIONER Diagram

#

Description
Price

1

TENSIONER, OUTER This part replaces 61350-40401.

61350-40402

Unavailable

2

ROLLER, CHAIN TENSIONER REAR

61345-41501

Unavailable

3

DUST SEAL

09284-10004

Unavailable

4

BUSH

61346-40400

Unavailable

5

SPACER, REAR

09180-06075

Unavailable

6

BOLT This part replaces 01517-06358.

01550-06357

$2.77

7

NUT This part replaces 08319-31066.

08319-31067

$2.03

8

SPACER, FRONT

61347-40400

Unavailable

9

BUSH

61355-40400

Unavailable

10

O RING

09280-10001

$2.02

11

ROLLER, CHAIN TENSIONER FRONT

61345-40200

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 61352-40401.

61352-40402

Unavailable

13

BOLT, CHAIN TENSIONER FRONT

09111-08036

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 09448-17011.

09448-17011-XC0

Unavailable

15

BOLT This part replaces 01517-06358.

01550-06357

$2.77

16

NUT This part replaces 08319-31068.

08319-31067

$2.03

17

GUIDE, CHAIN

61340-40401

Unavailable

18

BOLT This part replaces 01517-06258.

01550-06257

$2.30

19

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

20

BOLT, REAR

09100-06067

Unavailable

21

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

22

WASHER This part replaces 08322-21068.

08322-01067

$2.13

23

ROLLER, CHAIN GUIDE LOWER

61345-41501

Unavailable

24

DUST SEAL

09284-10004

Unavailable

25

BUSHING

61346-40400

Unavailable

26

SPACER | 6.2x10x22.5

09180-06075

Unavailable

27

BOLT This part replaces 01517-06358.

01550-06357

$2.77

28

NUT This part replaces 08319-31068.

08319-31067

$2.03

29

PAD

61349-40400

Unavailable

30

SCREW This part replaces 02112-05168.

02112-05167

$1.97

31

NUT

09159-05005

Unavailable

32

ROLLER, CHAIN GUIDE UPPER

61345-40400

Unavailable

33

BEARING

09263-10007

$18.64

34

DUST SEAL

09284-10004

Unavailable

35

WASHER | 6.5x18x1 This part replaces 09160-06078.

09160-06104

Unavailable

36

SPACER | 6.2x10x12.5

09180-06075

Unavailable

37

BOLT This part replaces 01517-06408.

01550-06407

$2.69

38

WASHER This part replaces 08322-21068.

08322-01067

$2.13

39

.NUT This part replaces 08319-21068.

08319-2106A

$1.91
