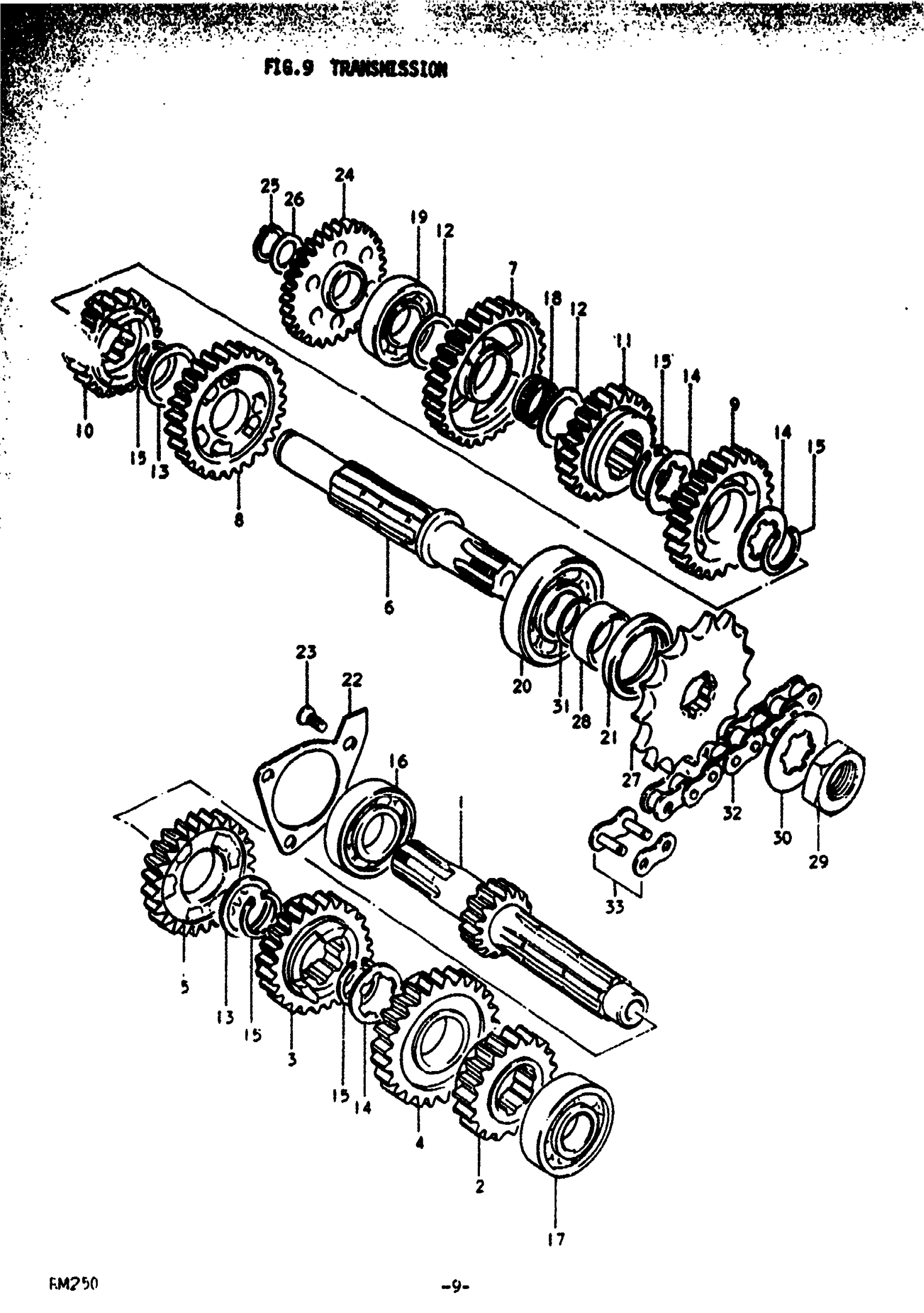

Suzuki RM250 (1978) TRANSMISSION Diagram

#

Description
Price

1

COUNTRSHAFT | A,B,C,C2; NT:13

24121-41100

Unavailable

2

GEAR, 2ND DRIVE (NT:16) | A,B,C,C2; NT:16 This part replaces 24221-41100.

24221-41102

Unavailable

3

GEAR, 3RD DRIVE | A; NT:17 TO 24231-41101

24231-41100

Unavailable

3

GEAR, 3RD DRIVE | A; NT:17 F.NO. 14423~TO 24231-41102

24231-41101

Unavailable

3

NO DESCRIPTION AVAILABLE | B,C,C2; NT:17 This part replaces 24231-41102.

24231-41104

Unavailable

4

NO DESCRIPTION AVAILABLE | A,B,C,C2; NT:19 This part replaces 24241-41100.

24241-14301

Unavailable

5

NO DESCRIPTION AVAILABLE | A,B,C,C2; NT:23 This part replaces 24251-41100.

24251-14201

Unavailable

6

NO DESCRIPTION AVAILABLE | A,B,C,C2 This part replaces 24131-41100.

24131-41101

Unavailable

7

GEAR, 1ST DRIVEN (NT:27) | A; NT:27 TO 24311-41101 USED WITH 24351-41101 This part replaces 24311-41100.

24311-41102

Unavailable

7

GEAR, 1ST DRIVEN (NT:27) | B,C,C2; NT:27 This part replaces 24311-41101.

24311-41102

Unavailable

8

GEAR, 2ND DRIVEN (NT:28) | A,B,C,C2; NT:28 This part replaces 24320-41100.

24320-41101

Unavailable

9

NO DESCRIPTION AVAILABLE | A; NT:23 TO 24331-41102 This part replaces 24331-41101.

24331-41103

Unavailable

9

NO DESCRIPTION AVAILABLE | B,C,C2; NT:23 This part replaces 24331-41102.

24331-41103

Unavailable

10

GEAR, 4TH DRIVEN | A; NT:21

24341-41101

Unavailable

10

NO DESCRIPTION AVAILABLE | B,C,C2; NT:21 This part replaces 24341-41102.

24341-41103

Unavailable

11

GEAR, 5TH DRIVEN (NT:21) | A; NT:21 TO 24351-41101 USED WITH 24311-41101 This part replaces 24351-41100.

24351-41103

Unavailable

11

GEAR, 5TH DRIVEN (NT:21) | B,C,C2; NT:21 This part replaces 24351-41101.

24351-41103

Unavailable

12

WASHER, 1ST DRIVEN | A,B,C,C2; 17x28x1 This part replaces 08211-17281.

09181-17195

$3.07

13

THRUST WASHER | A,B,C,C2

09181-22002

Unavailable

14

WASHER | A,B,C,C2; 18x27x0.5

09167-22011

$3.23

15

CIRCLIP | A,B,C,C2

09380-22006

$3.10

16

BEARING, COUNTER SHAFT | A,B,C,C2 This part replaces 09262-20009.

09262-20073

$23.28

17

BEARING, DRIVE SHAFT RH | A,B,C,C2 This part replaces 08113-62030.

09262-17023

$16.75

18

BEARING | A,B,C,C2

09263-17004

$12.03

19

BEARING, DRIVE SHAFT RH | A,B,C,C2 This part replaces 08113-62030.

09262-17023

$16.75

20

BEARING (22X56X16) | A,B,C,C2 This part replaces 09262-22011.

09262-22028

$77.48

21

OIL SEAL | A,B,C,C2

09283-32003

$7.31

22

HOLDER, BEARING | A; TO 24741-40001 This part replaces 24741-40000.

24741-40001

Unavailable

22

HOLDER, BEARING | B,C,C2

24741-40001

Unavailable

23

SCREW | A,B,C,C2 This part replaces 02122-06128.

02122-06127

$1.84

24

GEAR, KICK IDLE (NT:26) | A,B,C,C2; NT:26 This part replaces 26260-41100.

26260-13A10

Unavailable

25

CIRCLIP | A,B,C,C2

09380-17001

$1.98

26

WASHER | A,B,C,C2; 17x23x1

08211-17241

$2.54

27

SPROCKET, ENGINE | A,B,C,C2; NT:13

27511-41110

Unavailable

27

SPROCKET, ENGINE | A,B,C,C2; NT:12; OPT

27511-41100

Unavailable

27

SPROCKET, ENGINE (NT:14) | A,B,C,C2; NT:14 OPT This part replaces 27511-41120.

27511-14210

Unavailable

28

SPACER | A,B,C,C2; 22x32x11.5

09180-22007

Unavailable

29

NUT | A,B,C,C2

09140-22006

Unavailable

30

LOCK WASHER | A,B,C,C2; 18.5x40x0.8

09167-22005

$2.11

31

O RING | A,B,C,C2

09280-22003

$1.72

32

CHAIN,DRIVE ASS | A,B,C,C2; #520x110l; Includes Item(s) 33 This part replaces 27600-41110.

27600-46K00-116

$167.95

33

JOINT (DID) | A,B,C,C2 This part replaces 27620-40000.

27620-14252

Unavailable
