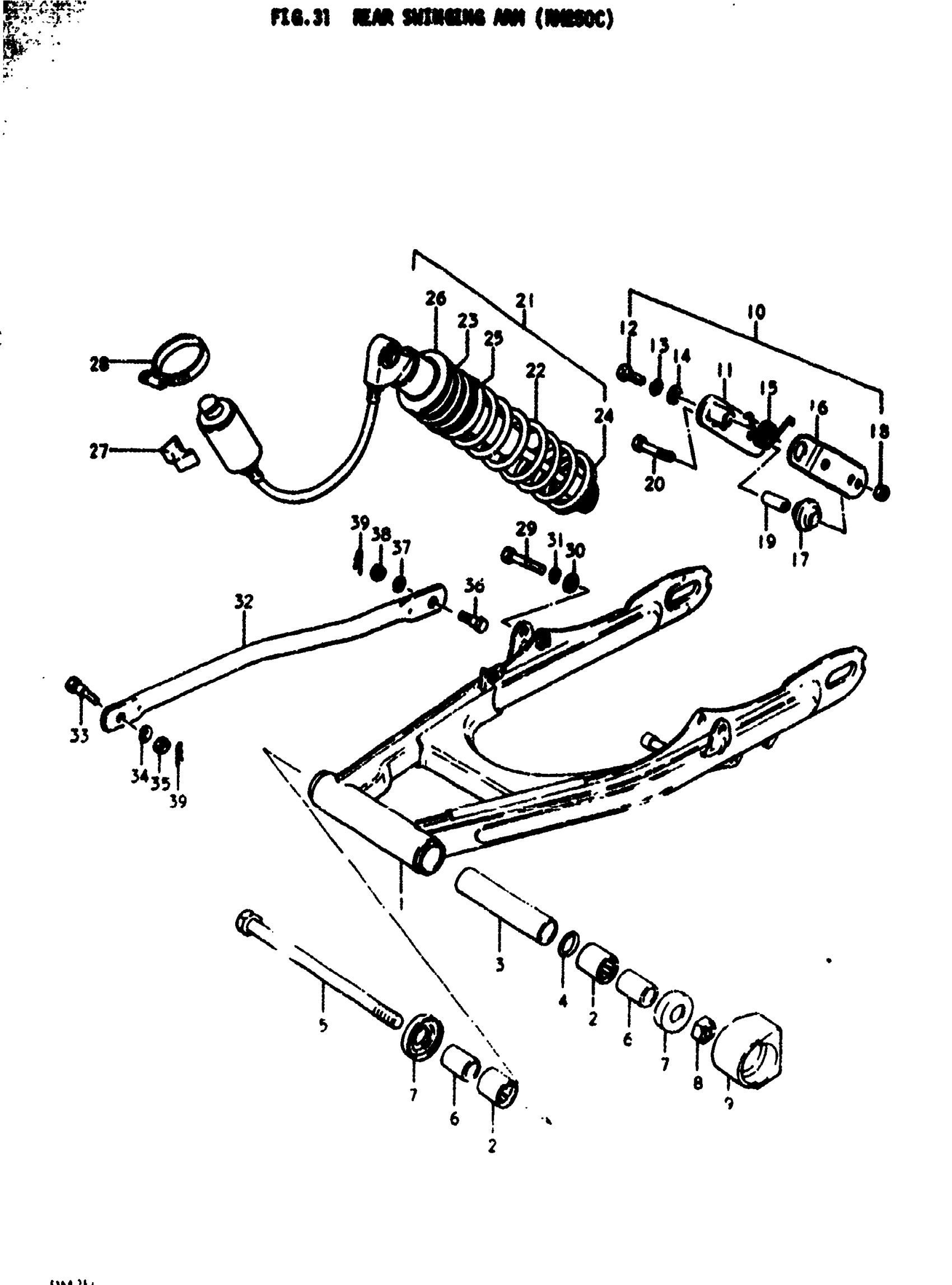

Suzuki RM250 (1978) REAR SWINGING ARM (RM250C) Diagram

#

Description
Price

1

REAR SHINGING ARM SET | Includes Item(s) 2 - 4

61100-41850-019

Unavailable

2

BEARING

09263-20021

Unavailable

3

SPACER, CENTER

61282-40000

Unavailable

4

O RING

09280-19001

$1.49

5

NO DESCRIPTION AVAILABLE This part replaces 61211-38001.

61211-38004

Unavailable

6

SPACER | 14x20x30

09180-14007

Unavailable

7

THRUST BEARING

09269-20010

Unavailable

8

NUT This part replaces 08319-11148.

08319-2114A

$3.96

9

BUFFER,CHAIN TO | TO 61273-41401 This part replaces 61273-41400.

61273-41402

Unavailable

10

NO DESCRIPTION AVAILABLE | Includes Item(s) 11 - 20 This part replaces 61300-41810.

61300-41811

Unavailable

11

CHAIN TENSIONER This part replaces 61350-41300.

61350-41301

Unavailable

12

BOLT This part replaces 01107-06128.

01500-06127

$1.97

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER | 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

15

SPRING

09448-25003

Unavailable

16

TENSIONER OUT P This part replaces 61352-41300.

61352-41301

Unavailable

17

ROLLER This part replaces 61345-41100.

61345-41101

$5.83

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

19

SPACER | 6.5x10.5x22.1

09180-06067

$2.59

20

BOLT This part replaces 01107-06358.

64455-07L00

$1.59

21

NO DESCRIPTION AVAILABLE | Includes Item(s) 22 - 26 This part replaces 62100-41650.

62100-41651

Unavailable

22

SPRING, NO.1

62211-41650

Unavailable

23

SPRING, NO. 2

62212-41650

Unavailable

24

GUIDE, SPRING

62225-40600

Unavailable

25

GUIDE, SPRING CENTER

62221-41650

Unavailable

26

SEAT, SPRING

62191-41650

Unavailable

27

CUSHION

62331-41630

Unavailable

28

CLAMP

62332-41631

Unavailable

29

BOLT 10X 40 | 10x40.5 This part replaces 09100-10096.

09100-10184

$3.16

30

WASHER This part replaces 08322-11108.

08322-01107

$2.15

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

NO DESCRIPTION AVAILABLE This part replaces 64311-34000.

64311-34000-019

Unavailable

33

BOLT

09111-08012

$3.78

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

NUT

09140-08008

$1.49

36

BOLT

09101-10003

Unavailable

37

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

38

NUT This part replaces 08310-22108.

08310-00107

$2.19

39

CLIP This part replaces 09385-10001.

09385-10005

$1.56
