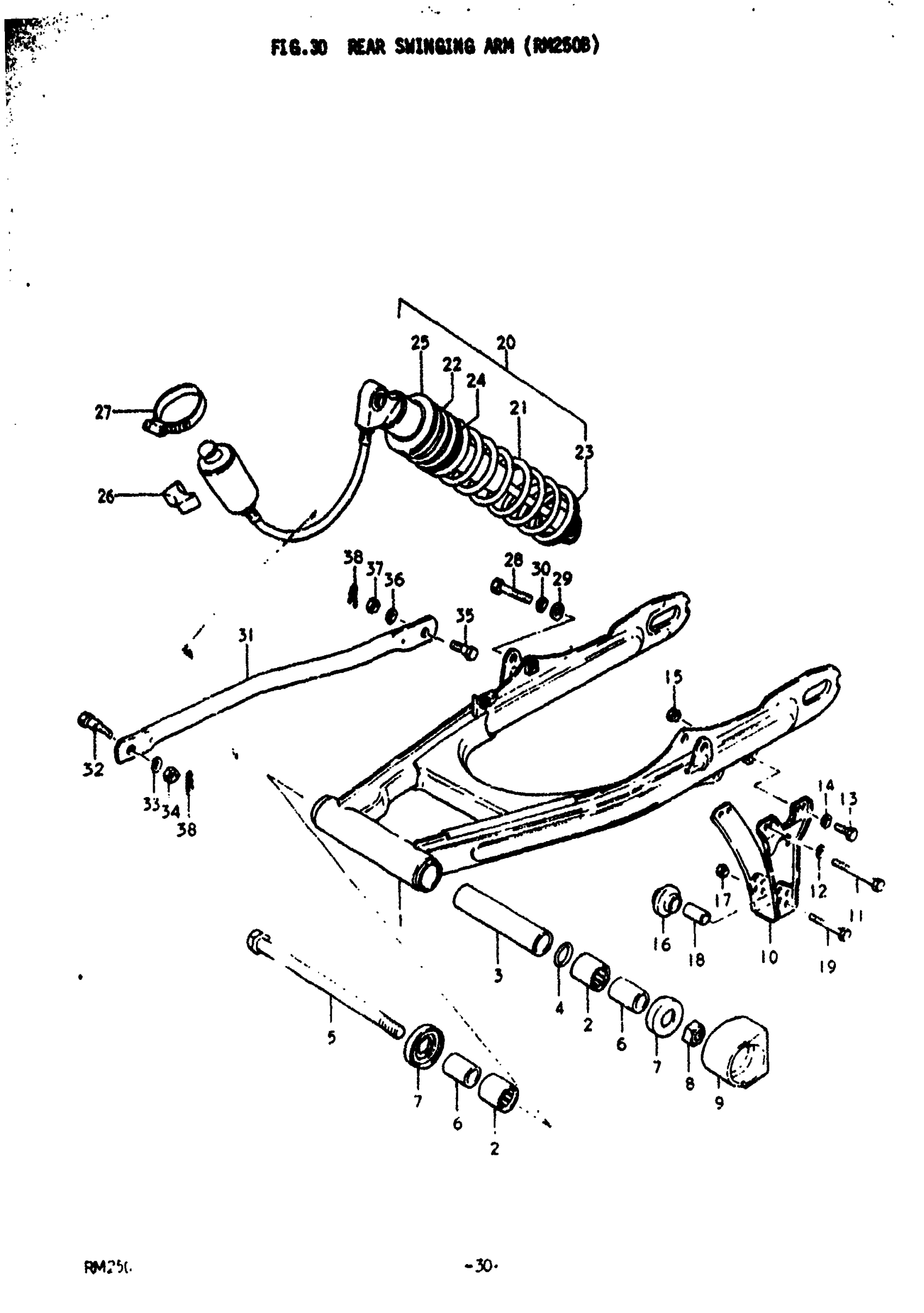

Suzuki RM250 (1978) REAR SWINGING ARM (RM2508) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-41841-019

Unavailable

2

BEARING

09263-20021

Unavailable

3

SPACER, CENTER

61282-40000

Unavailable

4

O RING

09280-19001

$1.49

5

NO DESCRIPTION AVAILABLE This part replaces 61211-38001.

61211-38004

Unavailable

6

SPACER | 14x20x30

09180-14007

Unavailable

7

THRUST BEARING

09269-20010

Unavailable

8

NUT This part replaces 08319-11148.

08319-2114A

$3.96

9

BUFFER,CHAIN TO This part replaces 61273-41400.

61273-41402

Unavailable

10

GUIDE, CHAIN

61340-41400

Unavailable

11

BOLT This part replaces 01107-06508.

01500-06507

$3.03

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

BOLT This part replaces 01107-06128.

01500-06127

$1.97

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT This part replaces 08310-11068.

08310-00067

$2.13

16

ROLLER This part replaces 61345-41100.

61345-41101

$5.83

17

NUT

09159-06018

Unavailable

18

SPACER | 6.5x10.5x22.5

09180-06067

$2.59

19

BOLT This part replaces 01107-06358.

64455-07L00

$1.59

20

NO DESCRIPTION AVAILABLE | Includes Item(s) 21 - 25 This part replaces 62100-41650.

62100-41651

Unavailable

21

SPRING NO.1

62211-41650

Unavailable

22

SPRING NO. 2

62212-41650

Unavailable

23

GUIDE, SPRING

62225-40600

Unavailable

24

GUIDE, SPRING CENTER

62221-41650

Unavailable

25

SEAT, SPRING

62191-41650

Unavailable

26

CUSHION

62331-41630

Unavailable

27

CLAMP

62332-41631

Unavailable

28

BOLT 10X 40 | 10x40.5 This part replaces 09100-10096.

09100-10184

$3.16

29

WASHER This part replaces 08322-11108.

08322-01107

$2.15

30

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

31

NO DESCRIPTION AVAILABLE This part replaces 64311-34000.

64311-34000-019

Unavailable

32

BOLT

09111-08012

$3.78

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

NUT

09140-08008

$1.49

35

BOLT

09101-10003

Unavailable

36

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

37

NUT This part replaces 08310-22108.

08310-00107

$2.19

38

CLIP This part replaces 09385-10001.

09385-10005

$1.56
