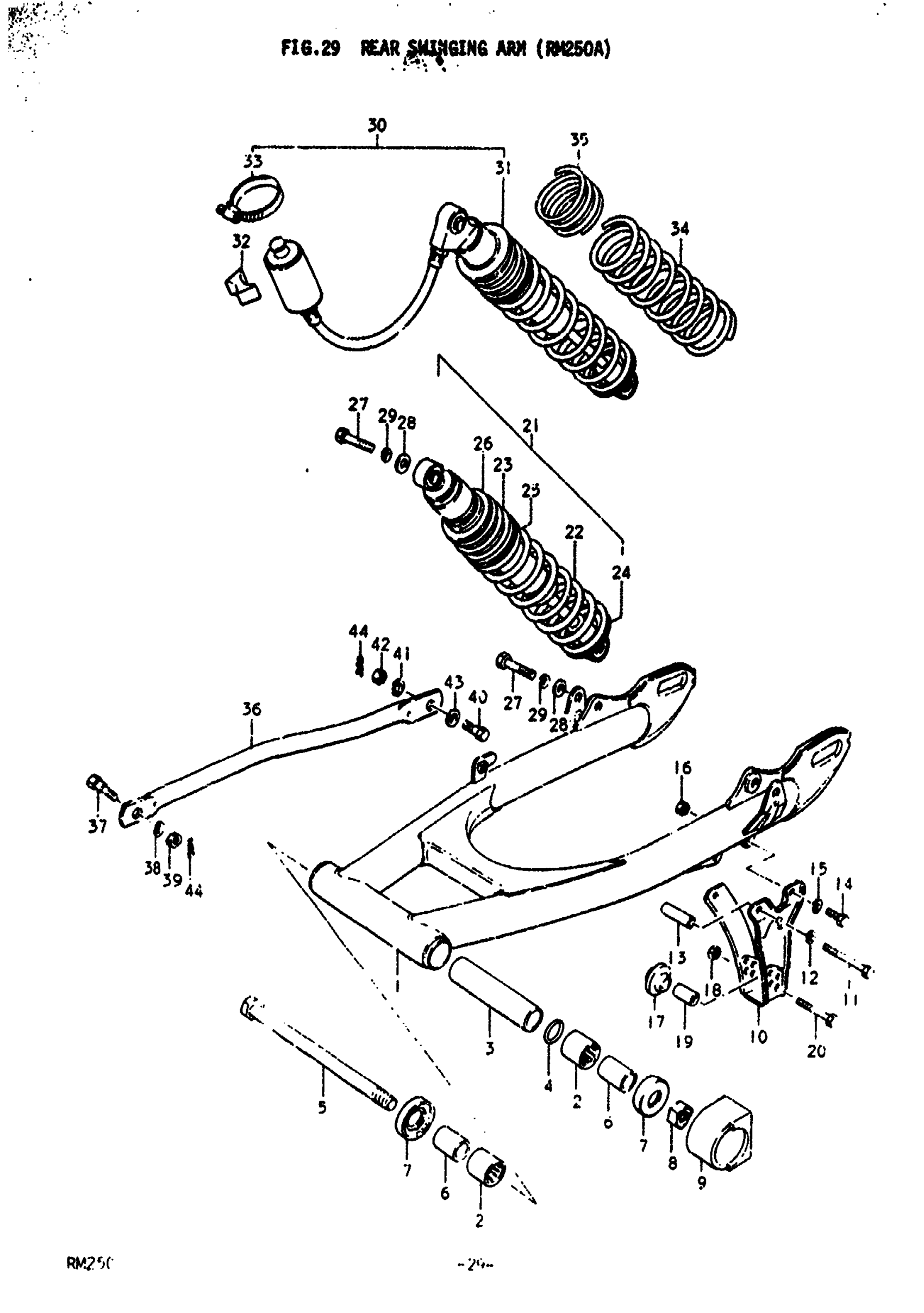

Suzuki RM250 (1978) REAR SWINGING ARM (RH250A) Diagram

#

Description
Price

1

REAR SWINGING ARM SET | Includes Item(s) 2 - 4

61100-41825-019

Unavailable

2

BEARING

09263-20021

Unavailable

3

SPACER, CENTER

61282-40000

Unavailable

4

O RING

09280-19001

$1.49

5

NO DESCRIPTION AVAILABLE This part replaces 61211-38000.

61211-38004

Unavailable

5

NO DESCRIPTION AVAILABLE | F.NO.14580~ This part replaces 61211-38001.

61211-38004

Unavailable

6

SPACER | 14x20x30

09180-14007

Unavailable

7

THRUST BEARING

09269-20010

Unavailable

8

NUT This part replaces 61221-40000.

08319-2114A

$3.96

9

BUFFER, CHAIN DEFENSE

61273-40001

Unavailable

10

GUIDE, CHAIN This part replaces 61340-41101.

61340-41400

Unavailable

11

BOLT This part replaces 01107-06508.

01500-06507

$3.03

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

SPACER | 6.5x10.5x34

09180-06056

Unavailable

14

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

15

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

ROLLER This part replaces 61345-41100.

61345-41101

$5.83

18

NUT

09159-06018

Unavailable

19

SPACER | 6.5x10.5x22.5

09180-06067

$2.59

20

BOLT This part replaces 01107-06358.

64455-07L00

$1.59

21

SHOCK ABSORBER ASSY, REAR | Includes Item(s) 22 - 26

62100-41110

Unavailable

22

SPRING NO. :

62211-41110

Unavailable

23

SPRING NO. 2

62212-41110

Unavailable

24

GUIDE, SPRING

62225-40600

Unavailable

25

GUIDE, SPRING CENTER

62221-41111

Unavailable

26

SEAT, SPRING

62191-41110

Unavailable

27

BOLT 10X 40 | 10x40.5 This part replaces 09100-10096.

09100-10184

$3.16

28

WASHER This part replaces 08322-11108.

08322-01107

$2.15

29

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

30

REAR SHOCK ABSORBER SET | OPT TO 62100-41812; Includes Item(s) 31 - 33

62100-41811

Unavailable

31

NO DESCRIPTION AVAILABLE | OPT TO 62100-41631 This part replaces 62100-41630.

62100-41631

Unavailable

32

CUSHION | OPT

62331-41630

Unavailable

33

CLAMP | OPT

62332-41631

Unavailable

34

SPRING, NO. 1 | OPT

62211-41700

Unavailable

35

SPRING, NO. 2 | OPT FOR HEAVY WEIGHT RIDER

62212-41700

Unavailable

36

NO DESCRIPTION AVAILABLE This part replaces 64311-34000.

64311-34000-019

Unavailable

37

BOLT

09111-08012

$3.78

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

39

NUT

09140-08008

$1.49

40

BOLT

09101-10003

Unavailable

41

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

42

NUT This part replaces 08310-22108.

08310-00107

$2.19

43

WASHER This part replaces 08322-21108.

08322-01107

$2.15

44

CLIP This part replaces 09385-10001.

09385-10005

$1.56
