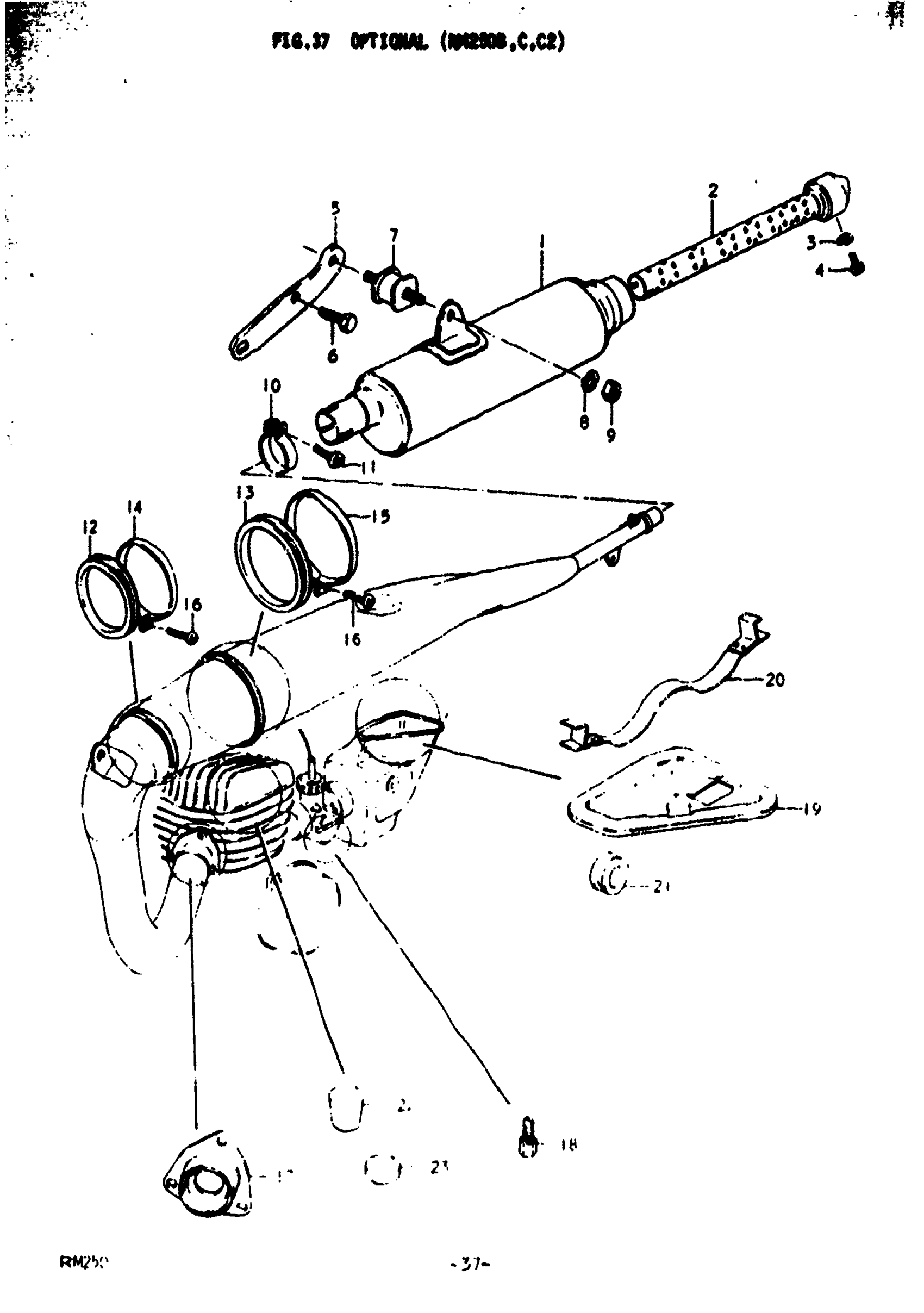

Suzuki RM250 (1978) OPTIONAL (RM250B Diagram

#

Description
Price

0

MUFFLER & AIR CLEANER COVER SE | B; FOR ARREST OF NOISESB; FOR ARREST OF NOISES

14300-41820

Unavailable

0

NO DESCRIPTION AVAILABLE | C,C2; FOR ARREST OF NOISESC,C2; FOR ARREST OF NOISES; Includes Item(s) 1 - 23 This part replaces 14300-41850.

14300-41851

Unavailable

1

MUFFLER ASSY, 2ND | B

14303-41710

Unavailable

1

MUFFLER ASSY, 2ND | C,C2

14303-41740

Unavailable

2

PIPE, BATTLE | B,C,C2

14510-41710

Unavailable

3

LOCK WASHER | B,C,C2 This part replaces 08321-21068.

08321-01067

$2.13

4

SCREW | B,C,C2 This part replaces 02112-06088.

02112-06087

$1.49

5

BRACKET, MUFFLER HANGER | B

14470-41700

Unavailable

6

BOLT | B This part replaces 01107-06258.

01500-06257

$1.97

7

DAMPER, SECOND MUFFLER | B

14770-41600

Unavailable

8

LOCK WASHER | B This part replaces 08321-21068.

08321-01067

$2.13

9

NUT | B This part replaces 08310-12108.

08310-00107

$2.19

10

CLAMP, SECOND MUFFLER | C,C2

09402-31601

Unavailable

11

SCREW | C,C2 This part replaces 02112-06258.

02112-06257

$1.78

12

RUBBER, MUFFLER BODY FRONT | B,C,C2

14319-41700

Unavailable

13

RUBBER, MUFFLER BODY REAR | B,C,C2

14319-41710

Unavailable

14

CLAMP, MUFFLER BODY FRONT | B,C,C2

09402-92601

Unavailable

15

CLAMP, MUFFLER BODY REAR | B,C,C2

09402-99601

Unavailable

16

SCREW | B,C,C2 This part replaces 02112-06258.

02112-06257

$1.78

17

FLANCE, EXHAUST PIPE | B,C,C2

14170-41710

Unavailable

18

JET, MAIN (200) | B,C,C2; #200 This part replaces 09491-40004.

09491-40006

Unavailable

19

COVER, AIR CLEANER | B

13750-41710

Unavailable

19

COVER, AIR CLEANER | C,C2

13750-41720

Unavailable

20

SPRING, AIR CLEANER | B,C,C2

13790-41700

Unavailable

21

PLUG, AIR CLEANER | B,C,C2

13759-41700

Unavailable

22

RUBBER PAD, CYLINDER HEAD | B,C,C2

11151-16400

Unavailable

23

RUBBER PAD, CYLINDER HEAD | B,C,C2B,C,C2

11252-38001

$3.78
