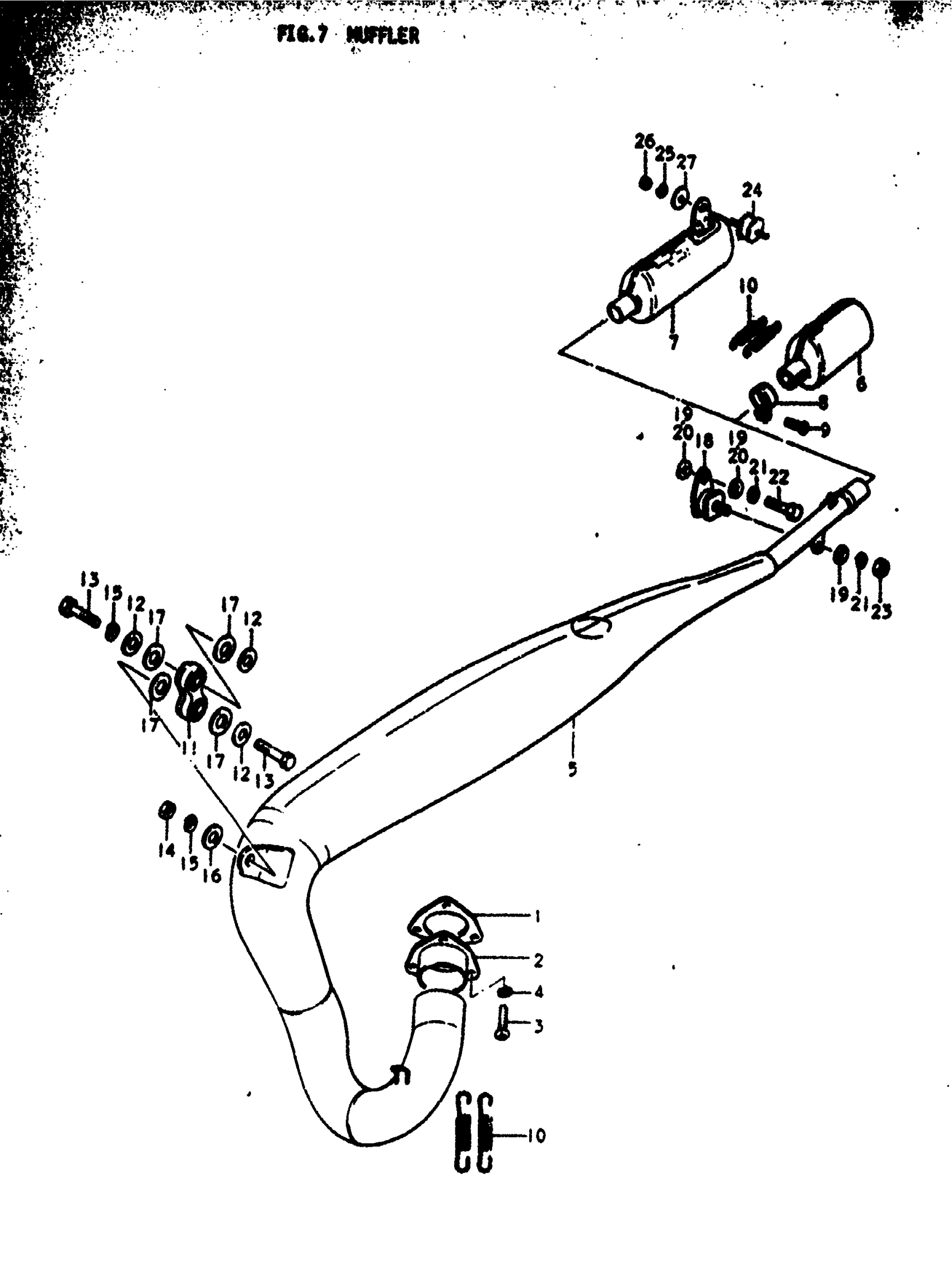

Suzuki RM250 (1978) MUFFLER Diagram

#

Description
Price

1

EXH FLANGE GASK | A,B,C,C2 This part replaces 14181-16300.

14181-16300-H17

$5.55

2

FLANGE, EXHAUST PIPE | A,B,C,C2 This part replaces 14170-16300.

14170-16301

Unavailable

3

SCREW | A,B,C,C2 This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER | A,B,C,C2 This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE | A This part replaces 14310-41100.

14310-41100-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | B This part replaces 14310-41101.

14310-41101-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | C,C2 This part replaces 14310-41102.

14310-41102-H01

Unavailable

6

NO DESCRIPTION AVAILABLE | A; TO 14300-41890 This part replaces 14330-41100.

14300-41890

Unavailable

6

NO DESCRIPTION AVAILABLE | B; TO 14300-41880 This part replaces 14330-41101.

14300-41880

Unavailable

7

NO DESCRIPTION AVAILABLE | C,C2 This part replaces 14330-41611.

14330-41611-H01

Unavailable

8

CLAMP | A

09402-25601

Unavailable

8

CLAMP | B

09402-28601

Unavailable

9

BOLT | A,B This part replaces 09128-06006.

09128-06057

$1.65

10

SPRING | A,B,C,C2

09443-11002

$3.10

11

DAMPER, MUFFLER | A,B,C,C2

14770-40000

Unavailable

12

WASHER | A,B,C,C2; 8.5x23x1.2 This part replaces 09160-08035.

09160-08130

$2.03

13

BOLT | A,B,C,C2 This part replaces 01107-08358.

01500-0835B

$3.04

14

NUT | A,B,C,C2 This part replaces 08310-12088.

08310-00087

$2.13

15

.LOCK WASHER | A,B,C,C2 This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER | A,B,C,C2 This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | A,B,C,C2

09161-13001

Unavailable

18

DAMPER, MUFFLER SUPPORT REAR | A,B

14770-41101

$17.14

19

WASHER | AB This part replaces 08322-11088.

08322-01087

$2.13

20

WASHER (8.5X20X1.6) | A,B; 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49

21

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

22

BOLT,TRIM TAB | A,B; 8x16 This part replaces 09100-08135.

09100-08215

Unavailable

23

.NUT | A,B This part replaces 08310-12068.

08310-00067

$2.13

24

DAMPER, MUFFLER SUPPORT REAR | C,C2

14770-41600

Unavailable

25

.LOCK WASHER | C,C2 This part replaces 08321-21088.

08321-01087

$2.13

26

NUT | C,C2 This part replaces 08310-12088.

08310-00087

$2.13

27

WASHER (8.5X20X1.6) | C,C2; 8.5x20x1.6 This part replaces 09160-08010.

09160-08054

$1.49
