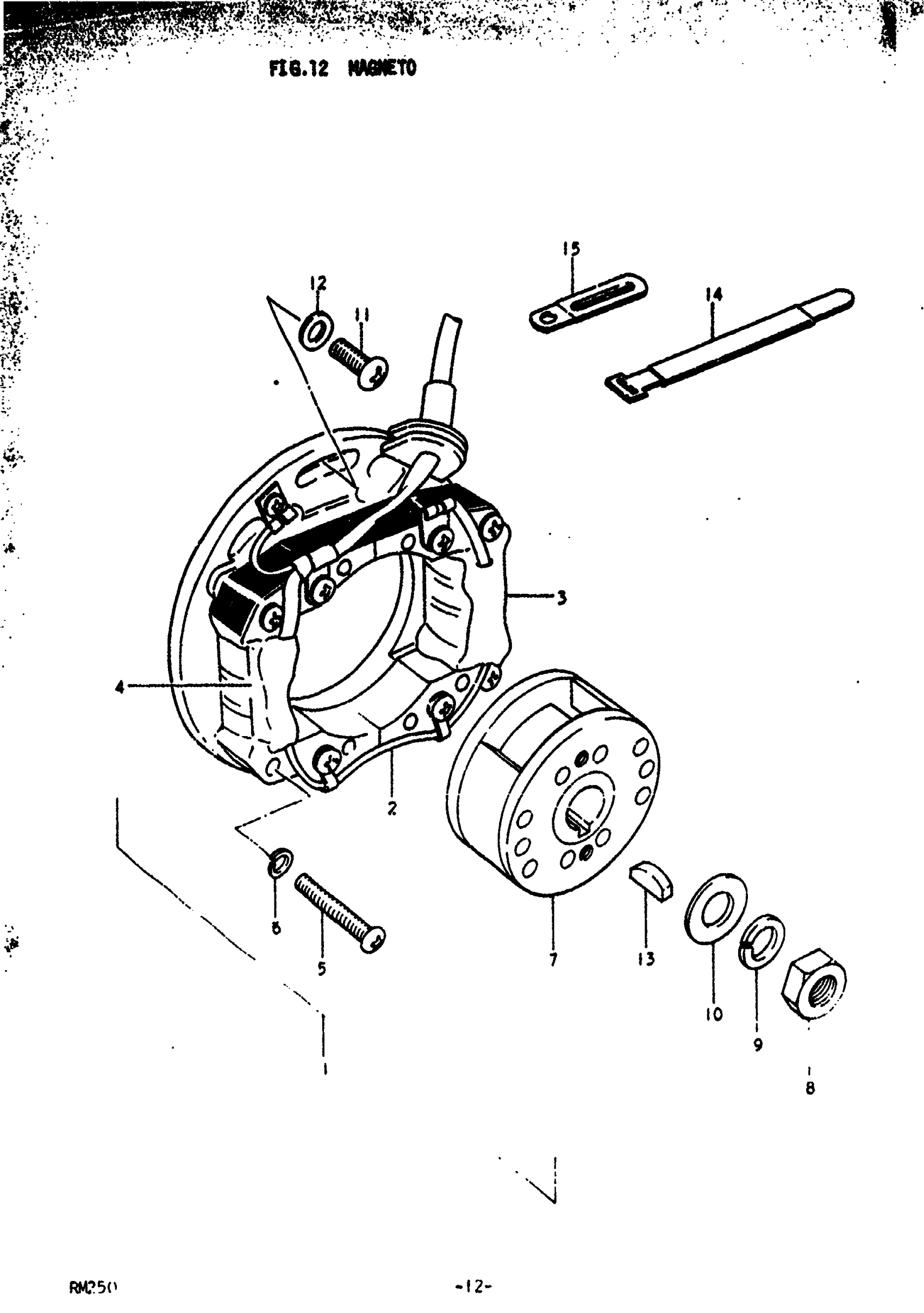

Suzuki RM250 (1978) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY | A

32100-41110

Unavailable

1

MAGNETO ASSY | B,C,C2; Includes Item(s) 2 - 7 This part replaces 32100-41111.

32100-41112

Unavailable

2

STATOR ASSY | A,B,C,C2 This part replaces 32101-41110.

32101-41111

Unavailable

3

COIL, PRIMARY | A,B,C,C2

32140-28601

Unavailable

4

COIL, PULSER | A,B,C,C2

32150-41110

Unavailable

5

SCREW | A,B,C,C2 This part replaces 02112-05308.

02112-0530A

$2.05

6

LOCK WASHER | A,B,C,C2 This part replaces 08321-21058.

08321-0105A

$1.84

7

ROTOR | A

32102-41110

Unavailable

7

ROTOR | B,C,C2 This part replaces 32102-41111.

32102-14310

Unavailable

8

NUT | A,B,C,C2 This part replaces 09140-10003.

09140-10041

$2.38

9

LOCK WASHER | A,B,C,C2 This part replaces 08321-21108.

08321-01107

$1.84

10

WASHER | A,B,C,C2 This part replaces 08322-21108.

08322-01107

$2.15

11

SCREW | A,B,C,C2 This part replaces 02112-06168.

02112-06167

$1.49

12

WASHER | A,B,C,C2 This part replaces 08322-21068.

08322-01067

$2.13

13

KEY | A,B,C,C2 This part replaces 08341-31049.

09420-04008

$3.42

14

CLAMP | A,B,C,C2; L:110 This part replaces 09407-11302.

09407-18302

$2.28

15

CLAMP | A,B,C,C2; L:60 This part replaces 09404-06402.

09404-06039

$1.74
