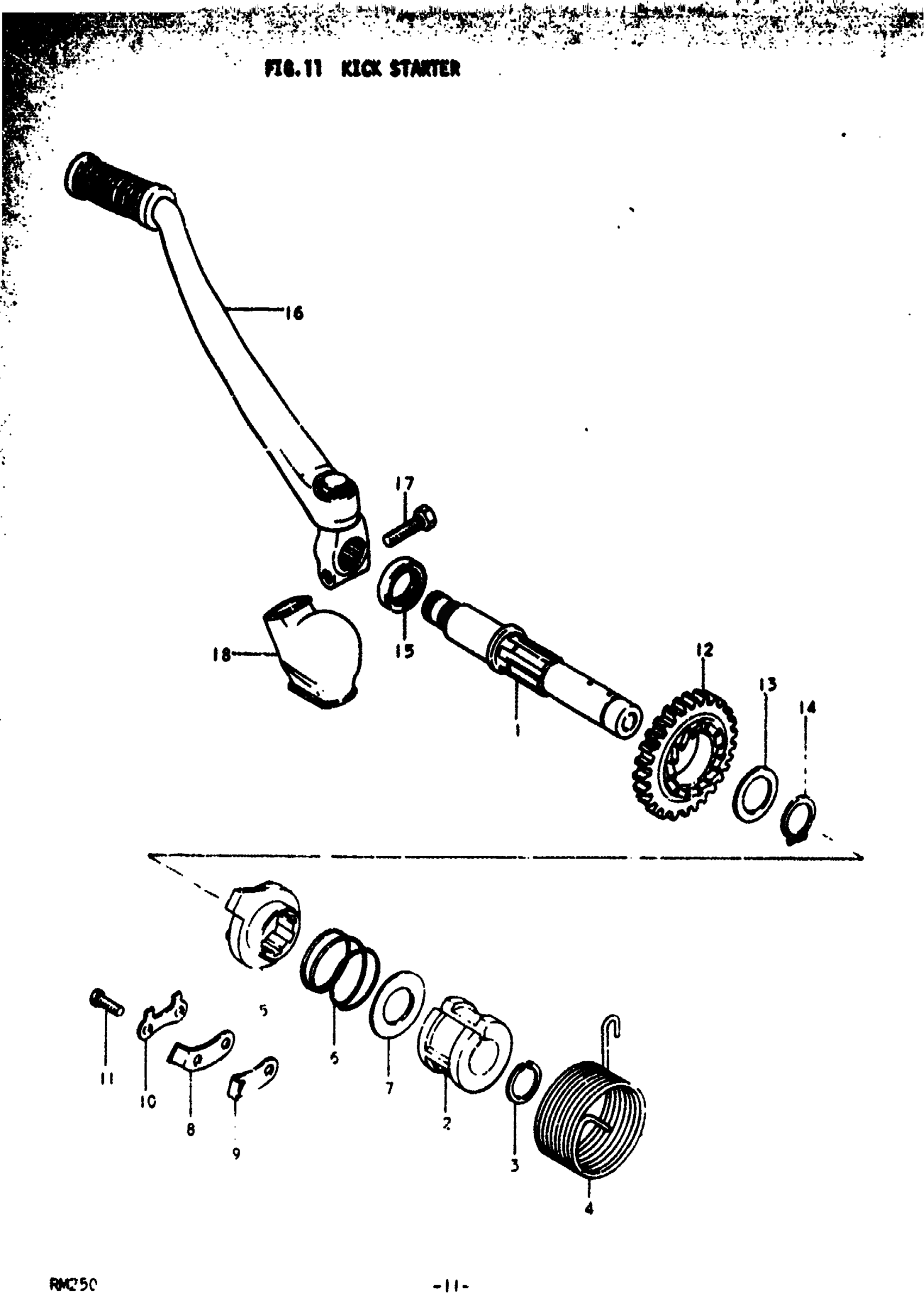

Suzuki RM250 (1978) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | A; TO 26211-41101 USED WITH 26300-41201 This part replaces 26211-41100.

26211-41101

Unavailable

1

SHAFT, KICK STARTER | B,C,C2

26211-41101

Unavailable

2

GUIDE, SPRING | A,B,C,C2

26221-41100

$8.28

3

CINCLIP | A,B,C,C2

09380-17001

$1.98

4

SPRING | A,B,C,C2

09448-45008

$6.99

5

STARTER, KICK | A,B,C,C2 This part replaces 26231-30000.

26231-22A10

$63.88

6

SPRING | A,B,C,C2

09440-32002

$2.27

7

PLATE | A,B,C,C2; 17x34x1.5

08211-17342

$2.72

8

GUIDE, KICK STARTER | A,B,C,C2

26232-30000

Unavailable

9

STOPPER, KICK STARTER | A,B,C,C2

26233-30000

Unavailable

10

WASHER | A,B,C,C2

09169-06003

$1.78

11

BOLT, CANISTER | A,B,C,C2 This part replaces 01107-06168.

01500-06167

$1.97

12

GEAR, KICK DRIVE (NT:27) | A,B,C,C2; NT:27 This part replaces 26240-41100.

26240-13A00

Unavailable

13

WASHER (22X28X1.0) | A,B,C,C2; 22x28x1 This part replaces 08211-22281.

09181-22139

$3.48

14

CIRCLIP | A,B,C,C2

09380-22006

$3.10

15

DUST SEAL, INNER | A,B; TO 09283-20031 This part replaces 09285-20002.

09283-20031

$5.24

15

OIL SEAL | C,C2

09283-20031

$5.24

16

LEVER ASSY,KICK | A; TO 26300-41101 This part replaces 26300-40003.

26300-12B05

Unavailable

16

LEVER ASSY,KICK | B,C,C2 This part replaces 26300-41201.

26300-41202

Unavailable

17

BOLT, FRONT | A; TO 09100-08134 This part replaces 09100-08114.

09101-08003

Unavailable

17

BOLT | B,C,C2; 8x25

09100-08134

$2.46

18

COVER,KICK STAR | A,B,C,C2 This part replaces 26341-41100.

26341-41102

$7.54
