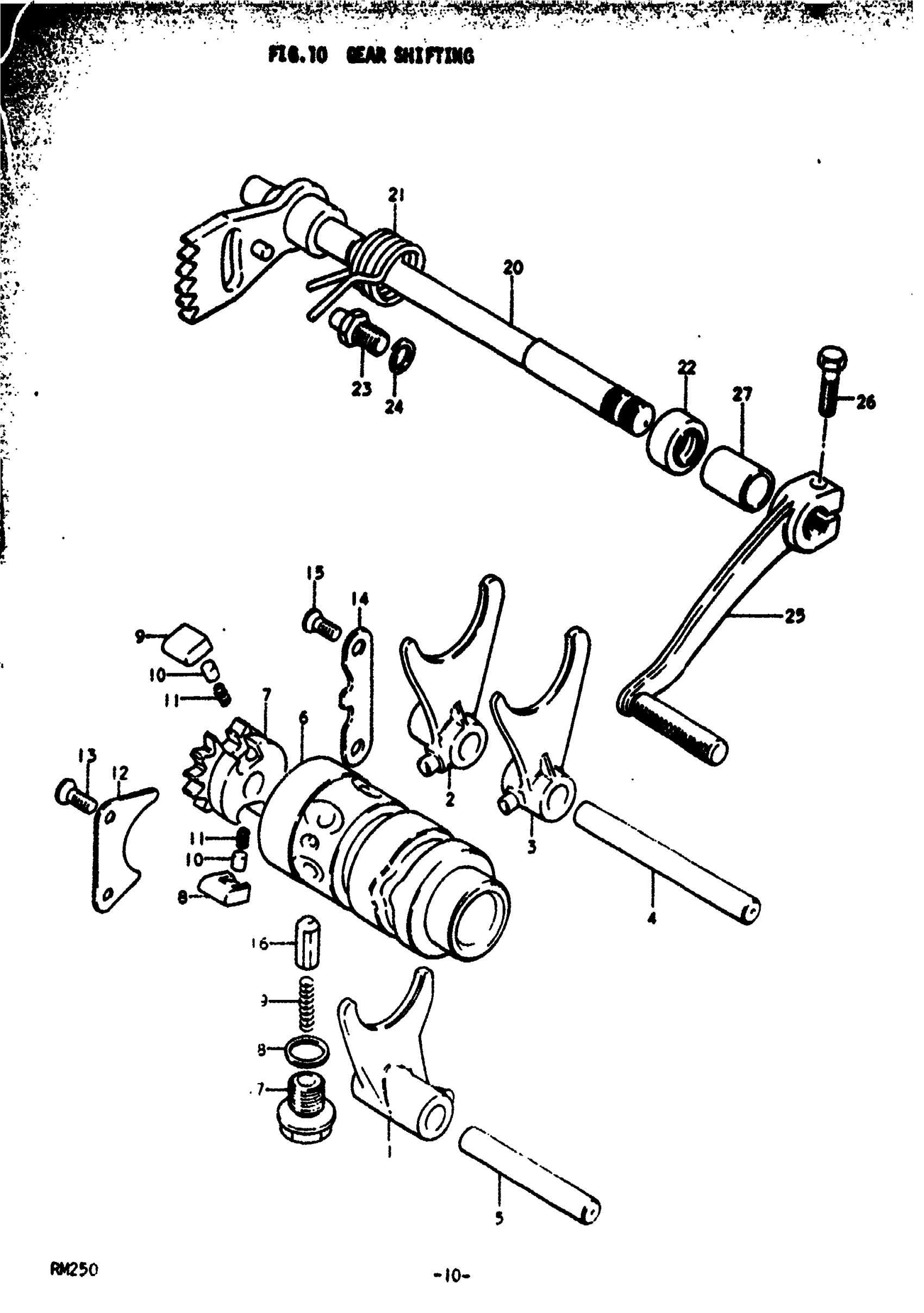

Suzuki RM250 (1978) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHITTING NO.1 | A,B,C,C2

25211-40000

Unavailable

2

FORK, GEAR SHITTING NO.2 | A,B,C,C2

25221-40000

Unavailable

3

FORK, GEAR SHITTING NO.3 | A

25231-40000

Unavailable

3

FORK, GEAR SHITTING NO.3 | B,C,C2

25231-40001

Unavailable

4

SHAFT, NO.2 | A,B,C,C2 This part replaces 25411-40000.

25411-14331

$23.07

5

SHAFT, NO.1 | A,B,C,C2 This part replaces 25421-40000.

25421-35410

$23.47

6

CAM, GEAR SHITTING | A,B,C,C2

25310-41100

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN | A,B,C,C2 This part replaces 25322-11000.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1 | A,B,C,C2 This part replaces 25323-11000.

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2 | A,B,C,C2 This part replaces 25324-11000.

25324-34201

$7.22

10

PIN | A,B,C,C2

09261-05003

$1.54

11

SPRING | A,B,C,C2

09440-04003

$1.54

12

LIFTER, GR SHIFT POLE | A,B,C,C2 This part replaces 25331-30000.

25331-30001

Unavailable

13

SCREW | A,B,C,C2 This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM | A,B,C,C2

25341-40001

$12.17

15

SCREW | A,B,C,C2 This part replaces 02122-06128.

02122-06127

$1.84

16

STOPPER, CAM | A,B,C,C2 This part replaces 25351-11000.

25351-11010

$7.22

17

HOLDER, STOPPER | A,B,C,C2 This part replaces 25352-11000.

25352-11010

$7.22

18

GASKET | A,B,; 14.2x20.5x1.2

09168-14006

Unavailable

18

GASKET | C,C2; 14.7x19.5x2.0

09168-14004

$1.83

19

SPRING | A,B,; TO 09440-05007 This part replaces 09440-05002.

09440-05007

$1.82

19

SPRING | C,C2

09440-05007

$1.82

20

SHAFT, GEAR SHITTING | A; L:178 TO 25510-41101

25510-41100

Unavailable

21

SPRING | A,B,C,C2

09444-26013

$3.10

20

GEAR SHIFT SHAF | A,B,C,C2; L:180.5 This part replaces 25510-41101.

25510-41X00

Unavailable

22

OIL SEAL (12X22X9) | A,B,C,C2; FROM 09285-12001 This part replaces 09285-12002.

09285-12006

$6.32

23

STOPPER, ARM | A,B,C,C2 This part replaces 25671-01000.

25671-01011

$4.48

24

.LOCK WASHER | A,B,C,C2 This part replaces 08321-21088.

08321-01087

$2.13

25

LEVER, GEAR SHIFTING | A; TO 25610-41101 This part replaces 25610-41100.

25610-41102

Unavailable

25

LEVER, GEAR SHIFTING | A; F.NO. 13751~ TO 25610-41102 This part replaces 25610-41101.

25610-41102

Unavailable

25

LEVER, GEAR SHITTING | B,C,C2

25610-41102

Unavailable

26

BOLT | A,B,C,C2 This part replaces 01107-06208.

01500-06207

$2.28

27

CUSHION | A,B,C,C2

09320-13001

Unavailable
