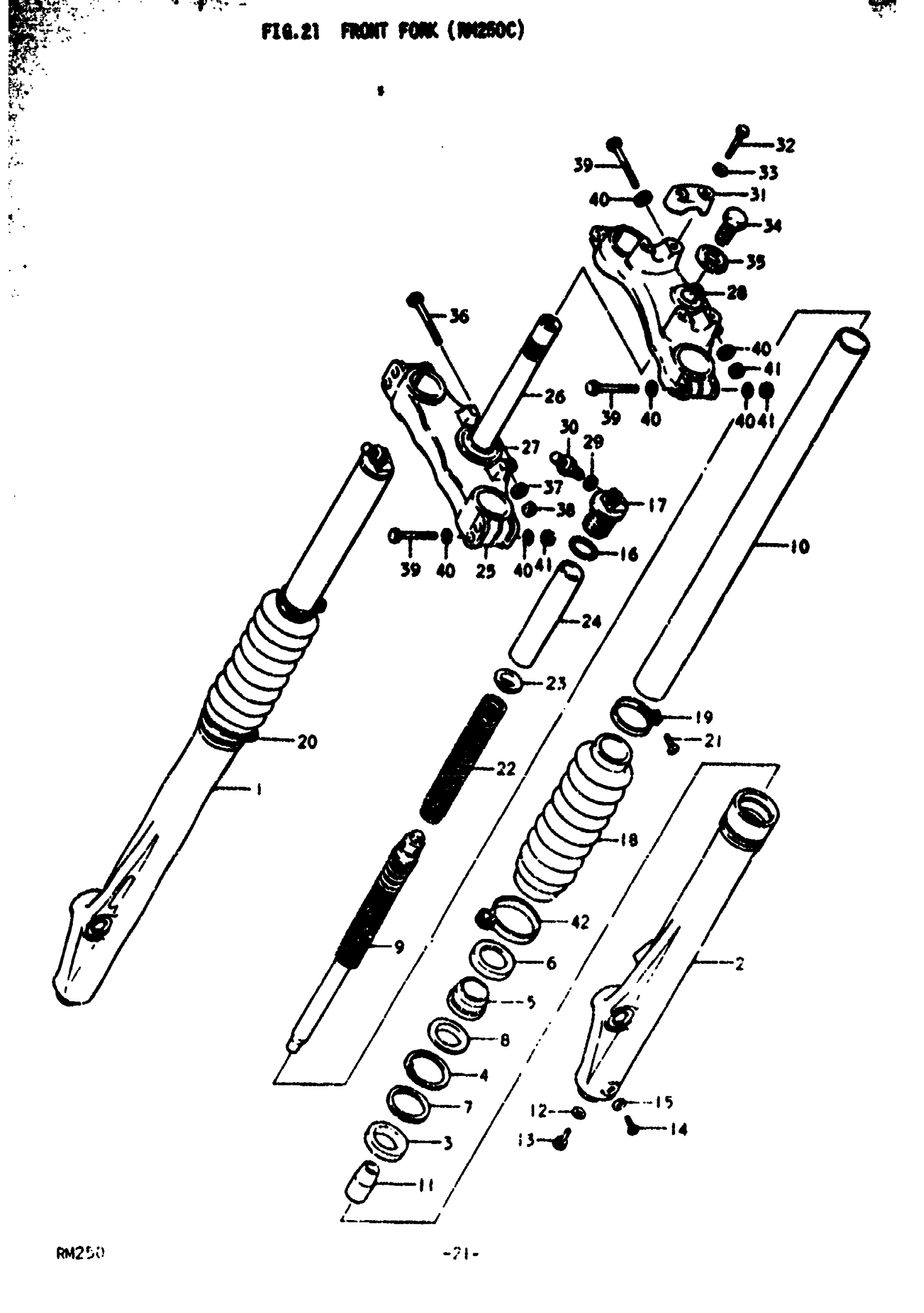

Suzuki RM250 (1978) FRONT FORK (RM250C) Diagram

#

Description
Price

0

FRONT FORK ASSY | Includes Item(s) 1 - 42

51100-41211

Unavailable

1

OUTER TUBE, RH

51130-41211

Unavailable

2

OUTER TUBE, LH

51140-41211

Unavailable

3

FORK OIL SEAL This part replaces 51153-41211.

51153-16730

Unavailable

4

SNAP RING

51156-41211

Unavailable

5

DUST SEAL

51173-41211

Unavailable

6

CASE, DUST SEAL This part replaces 51149-41211.

51149-40500

Unavailable

7

WASHER

51158-41211

Unavailable

8

GUIDE, SNAP RING

51145-41211

Unavailable

9

CYLINDER

51146-41212

Unavailable

10

INNER TUBE

51110-41211

Unavailable

11

PIECE, OIL LOCK This part replaces 51195-41210.

51195-49071

$21.43

12

GASKET

51148-41310

$2.26

13

BOLT

51147-41310

Unavailable

14

SCREW This part replaces 02111-04087.

02112-04087

$1.49

15

GASKET

51183-03010

$2.07

16

O RING

51117-16310

Unavailable

17

CAP

51351-41211

Unavailable

18

BOOT This part replaces 51571-41211.

51571-38265-38K

Unavailable

19

BAND, BOOT

51575-41410

Unavailable

20

BAND, BOOT

51573-41410

Unavailable

21

SCREW This part replaces 02111-04168.

02112-0416A

$1.49

22

SPRING

51171-41211

Unavailable

23

GUIDE, SPRING

51172-38010

Unavailable

24

SPACER

51176-41211

Unavailable

25

STEM, STEERING

51411-41110

Unavailable

26

SHAFT, STEERING

51401-41310

Unavailable

27

OUTER RACE

51621-33001

$16.25

28

HEAD, STEERING STEM

51311-41211

Unavailable

29

O RING

51117-41211

Unavailable

30

VALVE This part replaces 51169-41211.

51293-49001

Unavailable

31

HOLDER, HANDLE

56211-27100

$15.23

32

BOLT This part replaces 01221-08357.

01204-08357

$2.09

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

BOLT

51351-41310

Unavailable

35

WASHER

51356-41310

Unavailable

36

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

37

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

38

NUT This part replaces 08310-22108.

08310-00107

$2.19

39

BOLT This part replaces 01222-08558.

01204-08557

$2.85

40

WASHER This part replaces 08322-21088.

08322-01087

$2.13

41

NUT This part replaces 08310-12088.

08310-00087

$2.13

42

CLH

51572-41211

Unavailable
