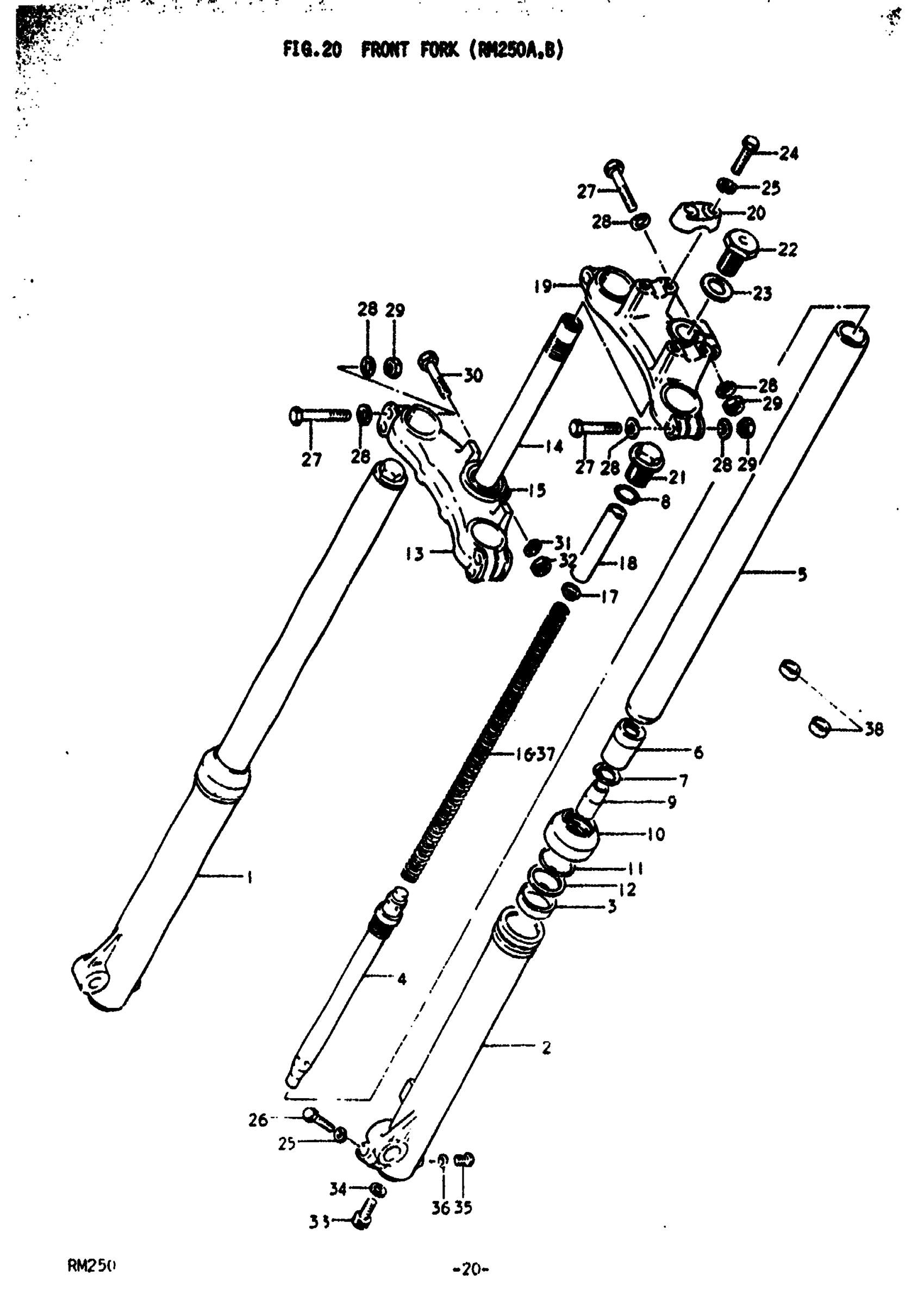

Suzuki RM250 (1978) FRONT FORK (RM250A Diagram

#

Description
Price

0

FRONT FORK ASSY | A

51100-41111

Unavailable

0

FRONT FORK ASSY | B; Includes Item(s) 1 - 36

51100-41210

Unavailable

1

OUTER TUBE, RH | A; FROM 51130-41110

51130-41111

Unavailable

1

OUTER TUBE, RH | B

51130-41210

Unavailable

2

OUTER TUBE, LH | A,B

51140-41110

Unavailable

3

FORK OIL SEAL | A,B This part replaces 51153-41110.

51153-16730

Unavailable

4

CYLINDER | A

51146-41111

Unavailable

4

CYLINDER | B

51146-41210

Unavailable

5

TUBE, INNER | A,B

51111-41110

Unavailable

6

PISTON | A,B

51112-38010

Unavailable

7

SNAP RING | A,B

51118-38010

Unavailable

8

O RING | A,B

51117-16310

Unavailable

9

PIECE, OIL LOCK | A

51195-38010

Unavailable

9

PIECE, OIL LOCK | B This part replaces 51195-41210.

51195-49071

$21.43

10

DUST SEAL | A,B

51173-41110

Unavailable

11

SNAP RING | A,B

51156-32110

Unavailable

12

WASHER | A,B

51158-32110

Unavailable

13

STEERING STEM | A,B

51411-41110

Unavailable

14

SHAFT, STEERING | A

51401-32110

Unavailable

14

SHAFT, STEERING | B

51401-41310

Unavailable

15

OUTER RACE | A,B

51621-33001

$16.25

16

SPRING | A

51171-41110

Unavailable

16

SPRING | B

51171-41210

Unavailable

17

GUIDE, SPRING | A

51172-38010

Unavailable

17

WASHER | B

51356-07010

$6.65

18

SPACER | A

51176-41010

Unavailable

18

SPACER | B

51176-41310

Unavailable

19

HEAD, STEERING STEM (GOLD) | A,B This part replaces 51311-41110.

51311-40210-08C

Unavailable

20

HOLDER, HANDLE | A,B

56211-27100

$15.23

21

CAP | A,B This part replaces 51351-38010.

51351-40210

Unavailable

22

BOLT | B

51351-28310

Unavailable

22

BOLT | B

51351-41310

Unavailable

23

WASHER | A

51356-28310

Unavailable

23

WASHER | B

51356-41310

Unavailable

24

BOLT | A,B This part replaces 01221-08357.

01204-08357

$2.09

25

.LOCK WASHER | A,B This part replaces 08321-21088.

08321-01087

$2.13

26

BOLT | A,B This part replaces 01107-08308.

01500-08307

$3.04

27

BOLT | A,B This part replaces 01107-08558.

01500-08557

$3.16

28

WASHER | A,B This part replaces 08322-21088.

08322-01087

$2.13

29

NUT | A,B This part replaces 08310-12088.

08310-00087

$2.13

30

BOLT | A,B This part replaces 01107-10608.

01500-1060A

$4.41

31

LOCK WASHER | A,B This part replaces 08321-21108.

08321-01107

$1.84

32

NUT | A,B This part replaces 08310-22108.

08310-00107

$2.19

33

BOLT | A,B

51147-16510

$4.34

34

GASKET | A

51148-16510

Unavailable

34

GASKET | B

51148-41310

$2.26

35

SCREW | A,B This part replaces 02111-04087.

02112-04087

$1.49

36

GASKET | A

51183-03010

$2.07

37

SPRING | A; OPT STIFFER TAP

51171-41630

Unavailable

38

SPACER | A

52300-41110

Unavailable
