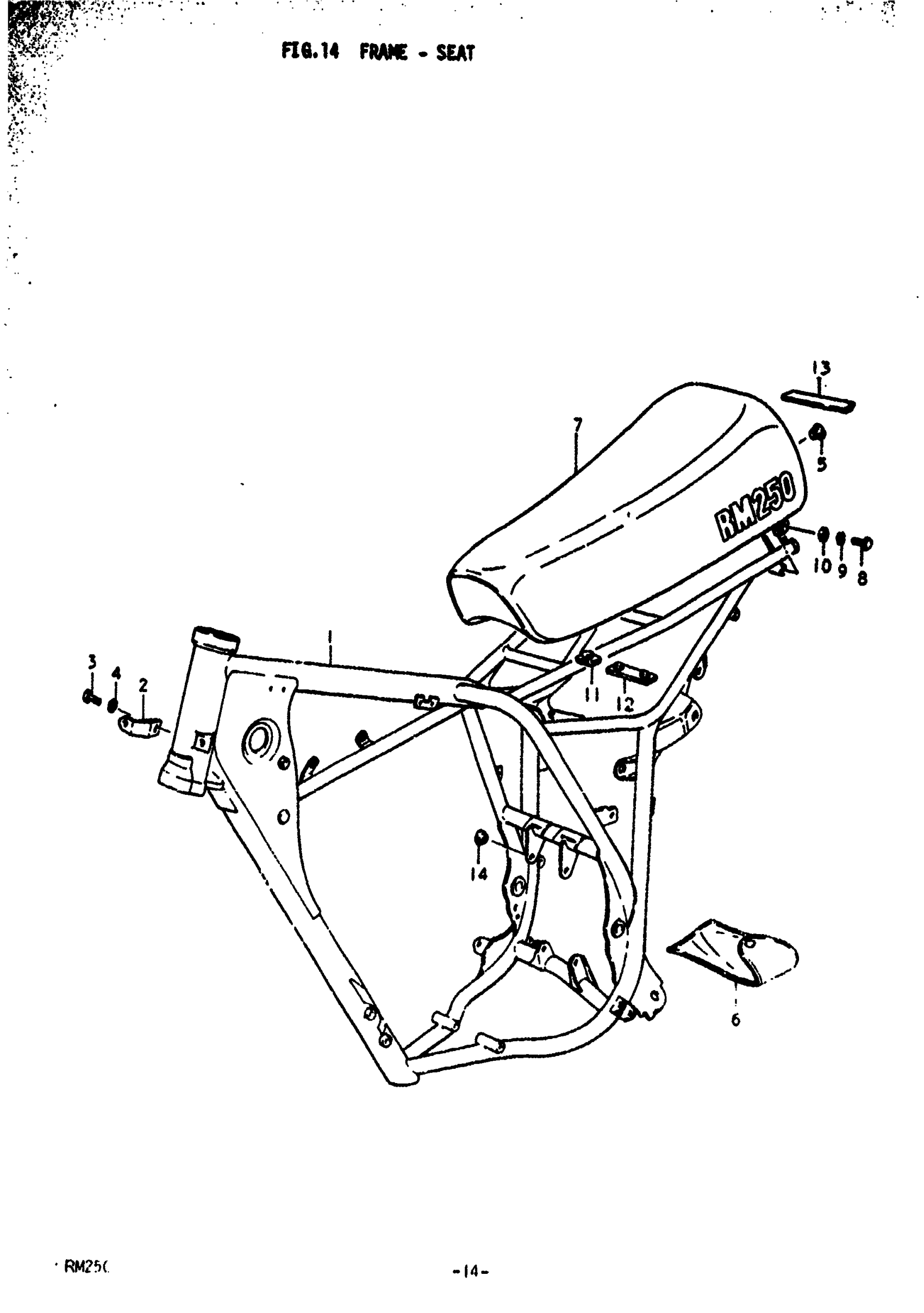

Suzuki RM250 (1978) FRAME - SEAT Diagram

#

Description
Price

1

FRAME | A; TO 41100-41101-019; USED WITH; 41999-41100 (2PCS.) This part replaces 41100-41100-019.

41100-41101-019

Unavailable

1

FRAME | A; F. NO. 13109~

41100-41101-019

Unavailable

1

FRAME | B

41100-41200-019

Unavailable

1

FRAME | C

41100-41103-019

Unavailable

1

FRAME | C2

41100-41104-019

Unavailable

2

BRACKET, CDI UNIT | A,B,C,C2

41890-41100

Unavailable

3

BOLT | A,B,C,C2 This part replaces 01107-06128.

01500-06127

$1.97

4

LOCK WASHER | A,B,C,C2 This part replaces 08321-21068.

08321-01067

$2.13

5

PLUG | C2

09250-11003

$2.50

6

TOOL SET | A,B

09800-00028

Unavailable

6

TOOL SET | C,C2 This part replaces 09800-00170.

09800-08800

Unavailable

7

SEAT | A,B,C; FROM 45100-41100-403

45100-41620-865

Unavailable

7

NO DESCRIPTION AVAILABLE | C2 This part replaces 45100-41621-865.

45100-41622-865

Unavailable

8

PLUG, DRAIN | A,B,C,C2 This part replaces 01107-08168.

01500-0816B

$2.50

9

.LOCK WASHER | A,B,C,C2 This part replaces 08321-21088.

08321-01087

$2.13

10

WASHER | A,B,C,C2 This part replaces 08322-21088.

08322-01087

$2.13

11

CUSHION | A

09329-10001

$2.12

12

CUSHION | B,C,C2

09321-08009

$3.05

13

CUSHION | A,B,C,C2

45299-41000

Unavailable

14

BUSH | A

41999-41100

Unavailable
