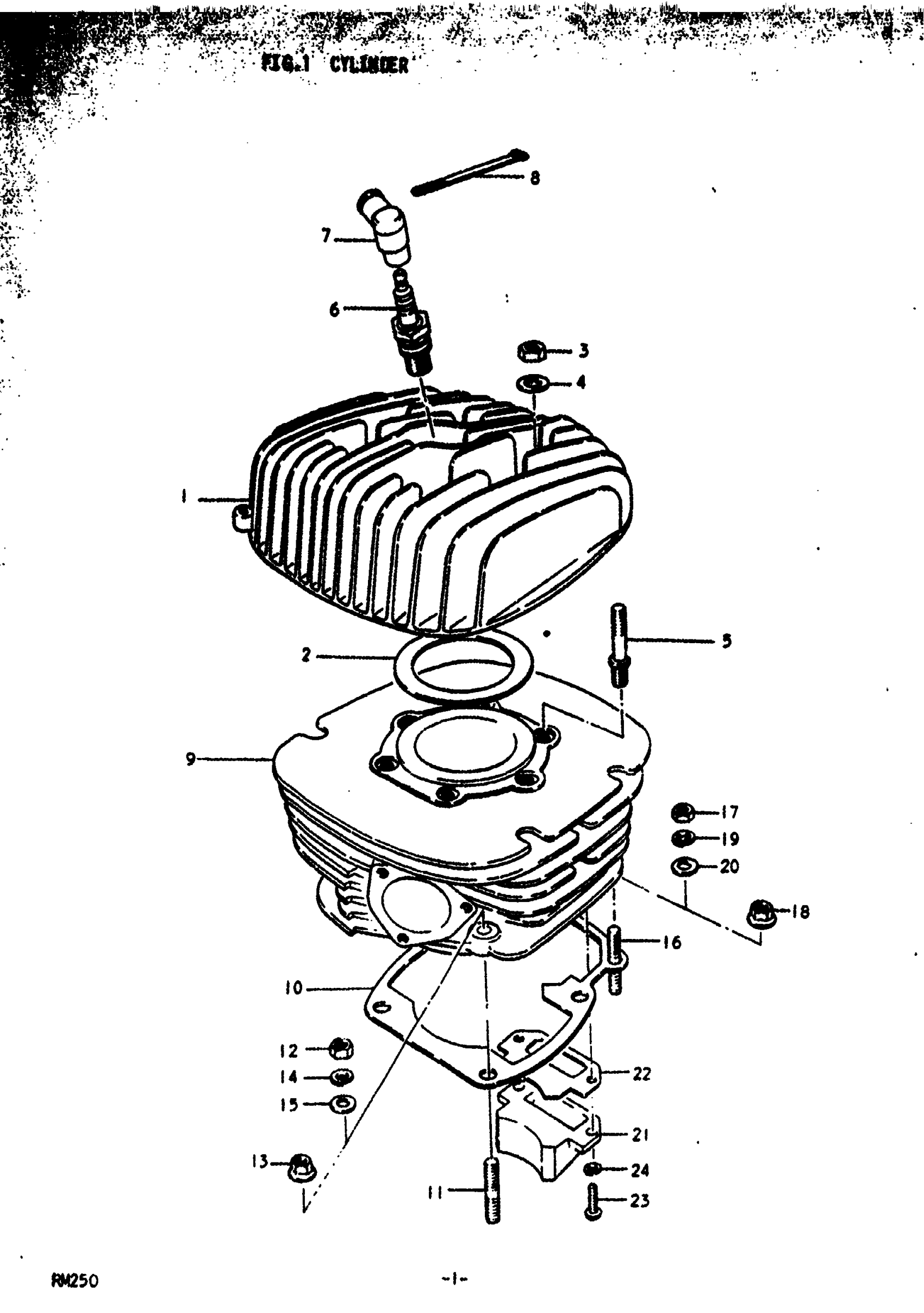

Suzuki RM250 (1978) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | A

11111-41102

Unavailable

1

CYLINDER HEAD | B,C,C2; FROM 11111-41610

11111-41611

Unavailable

2

GASKET, CYLINDER HEAD | A

11141-16300

Unavailable

2

GASKET, CYLINDER HEAD | B,C,C2

11141-41610

Unavailable

3

NUT, CLUTCH RELEASE NO.1 | A,B,C,C2 This part replaces 09140-08005.

09140-08017

$2.27

4

WASHER | A,B,C,C2 This part replaces 08322-21088.

08322-01087

$2.13

5

STUD BOLT | A,B,C,C2

09108-08018

$3.18

6

SPARK PLUG BR9E | A,B,C,C2; NGK, B9EV This part replaces 09482-00097.

09482-00349

$7.22

7

CAP, SPARK PLUG | A; TO 33510-41111 This part replaces 33510-41110.

33510-20A02

$24.39

7

CAP, SPARK PLUG | B,C,C2 This part replaces 33510-41111.

33510-20A02

$24.39

8

BELT | A,B,C,C2; FROM 09407-30001

09407-09402

$2.45

9

CYLINDER | A; FROM 11210-41100

11210-41101

Unavailable

9

CYLINDER | B; TO 11210-41641 This part replaces 11210-41611.

11210-41642

Unavailable

9

CYLINDER | C; TO 11210-41642 This part replaces 11210-41641.

11210-41642

Unavailable

9

CYLINDER | C2

11210-41642

Unavailable

10

CYLINDER GASKET | A,B,C,C2 This part replaces 11241-41100.

11241-41100-H17

Unavailable

11

BOLT,STUD | A,B,C,C2 This part replaces 01421-10258.

01421-1025B

$3.16

12

NUT | A This part replaces 08310-22108.

08310-00107

$2.19

13

NUT, WHEEL SET | B,C,C2 This part replaces 09159-10022.

08316-10107

$2.39

14

LOCK WASHER | A This part replaces 08321-21108.

08321-01107

$1.84

15

WASHER | A This part replaces 08322-11108.

08322-01107

$2.15

16

BOLT,STUD | A,B,C,C2 This part replaces 01421-08258.

01421-0825A

$2.03

17

NUT | A This part replaces 08310-12088.

08310-00087

$2.13

18

NUT (CHROME) | B,C,C2 This part replaces 09159-08019.

08316-10087

$2.26

19

.LOCK WASHER | A This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER | A This part replaces 08322-11088.

08322-01087

$2.13

21

REED VALVE ASSY | A,B,C,C2 This part replaces 13150-41111.

13150-41113

$143.67

22

GASKET,REED VAL | A,B,C,C2 This part replaces 13156-41100.

13156-41100-H17

$3.43

23

SCREW | A,B,C,C2 This part replaces 02112-06208.

02112-06207

$1.78

24

LOCK WASHER | A,B,C This part replaces 08321-21068.

08321-01067

$2.13
