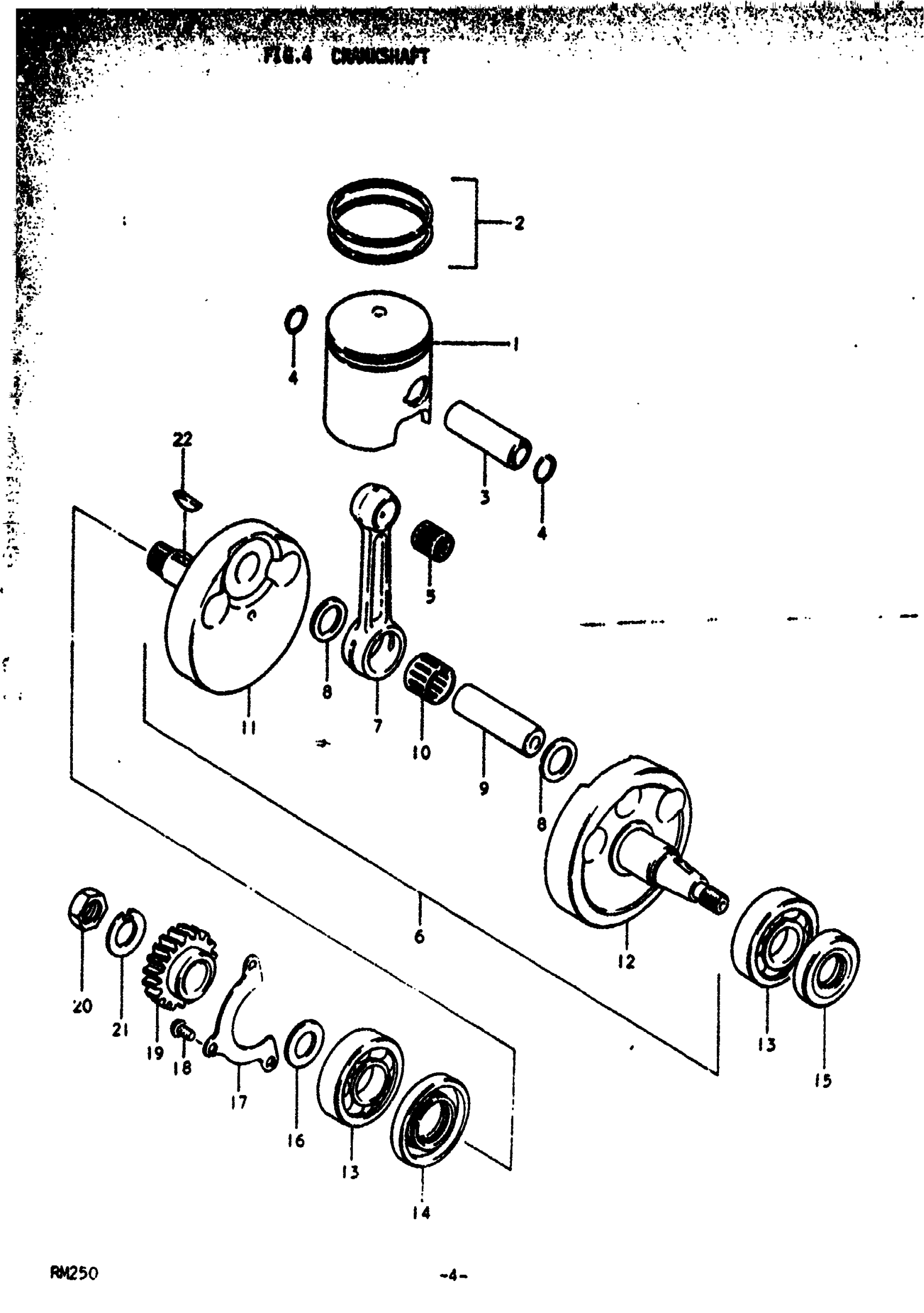

Suzuki RM250 (1978) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A; TO 12110-41102 USED WITH 12140-40011 This part replaces 12110-41101.

12110-41102

Unavailable

1

NO DESCRIPTION AVAILABLE | B,C,C2 This part replaces 12110-41600.

12110-40601

Unavailable

1

NO DESCRIPTION AVAILABLE | A; OS:0.25 TO 12110-41702 USED WITH12140-40701 This part replaces 12110-41701.

12110-41102-025

Unavailable

1

NO DESCRIPTION AVAILABLE | B,C,C2; OS:0.25 This part replaces 12110-41760.

12103-40891-025

Unavailable

1

PISTON | A; OS:0.5 TO 12110-41749 USED WITH12140-40721

12110-41709

Unavailable

1

NO DESCRIPTION AVAILABLE | B,C,C2; OS:0.5 This part replaces 12110-41770.

12103-40891-050

Unavailable

2

RING SET, PISTON | A

12140-40010

Unavailable

2

RING, PISTON | B,C,C2 This part replaces 12140-41600.

12141-41620

$25.78

2

NO DESCRIPTION AVAILABLE | A; OS:0.25 This part replaces 12140-40700.

12140-40010-025

Unavailable

2

RING, PISTON (OS:0.25) | B,C,C2; OS:0.25 This part replaces 12140-41760.

12141-41600-025

Unavailable

2

NO DESCRIPTION AVAILABLE | A; OS:0.5 This part replaces 12140-40720.

12140-40010-050

Unavailable

2

RING, PISTON (OS:0.5) | B,C,C2; OS:0.5 This part replaces 12140-41770.

12141-41600-050

$35.08

3

PIN, PISTON | A This part replaces 12151-15001.

12151-13A00-0A0

$16.02

3

PIN, PISTON | B,C,C2 This part replaces 12151-92200.

12151-45501

$17.37

4

CIRCLIP | A,B,C,C2

09381-18002

$1.67

5

BEARING, PISTON PIN | A,B,C,C2 This part replaces 09263-18011.

09263-18016

$19.93

6

CRANKSHAFT ASSY | A

12200-41100

Unavailable

6

CRANKSHAFT ASSY | B,C,C2; Includes Item(s) 7 - 12

12200-41600

Unavailable

7

CONNROD | A,B,C; TO 12161-41101 This part replaces 12161-41100.

12161-41103

$167.85

7

CONNROD | C2 This part replaces 12161-41101.

12161-41103

$167.85

8

THRUST WASHER | A,B,C,C2; 24x29x1.5

09160-24015

Unavailable

9

PIN, CRANK | A; TO 12211-41101 This part replaces 12211-41100.

12211-41101

Unavailable

9

PIN, CRANK | B,C,C2

12211-41101

Unavailable

10

BEARING | A,B,C,C2 This part replaces 09263-24007.

09263-24026

$69.90

11

CRANKSHAFT, RH | A

12221-41100

Unavailable

11

CRANKSHAFT, RH | B,C,C2

12221-41600

Unavailable

12

CRANKSHAFT, LH | A

12261-41100

Unavailable

12

CRANKSHAFT, LH | B,C,C2

12261-41600

Unavailable

13

BEARING, AXLE SHAFT, LH | A,B,C,C2 This part replaces 09262-25047.

09262-25084

$39.10

14

OIL SEAL, RH | A,B,C,C2; 33.8x62x11

09283-35004

Unavailable

15

OIL SEAL, LH | A,B,C,C2; 23x50x9

09283-24001

Unavailable

16

WASHER | A,B,C,C2; 20x48x1

09160-20025

Unavailable

17

RETAINER, BEARING RH | A,B,C,C2

12541-41100

Unavailable

18

SCREW | A,B,C,C2 This part replaces 02112-06128.

02112-06127

$1.84

19

GEAR, PRIMARY DRIVE | A,B,C,C2; NT:22

21111-41100

Unavailable

20

NUT | A,B,C,C2

09140-18004

$3.23

21

WASHER | A,B,C,C2

09166-18002

Unavailable

22

KEY | A,B,C,C2

08341-31059

$2.48
