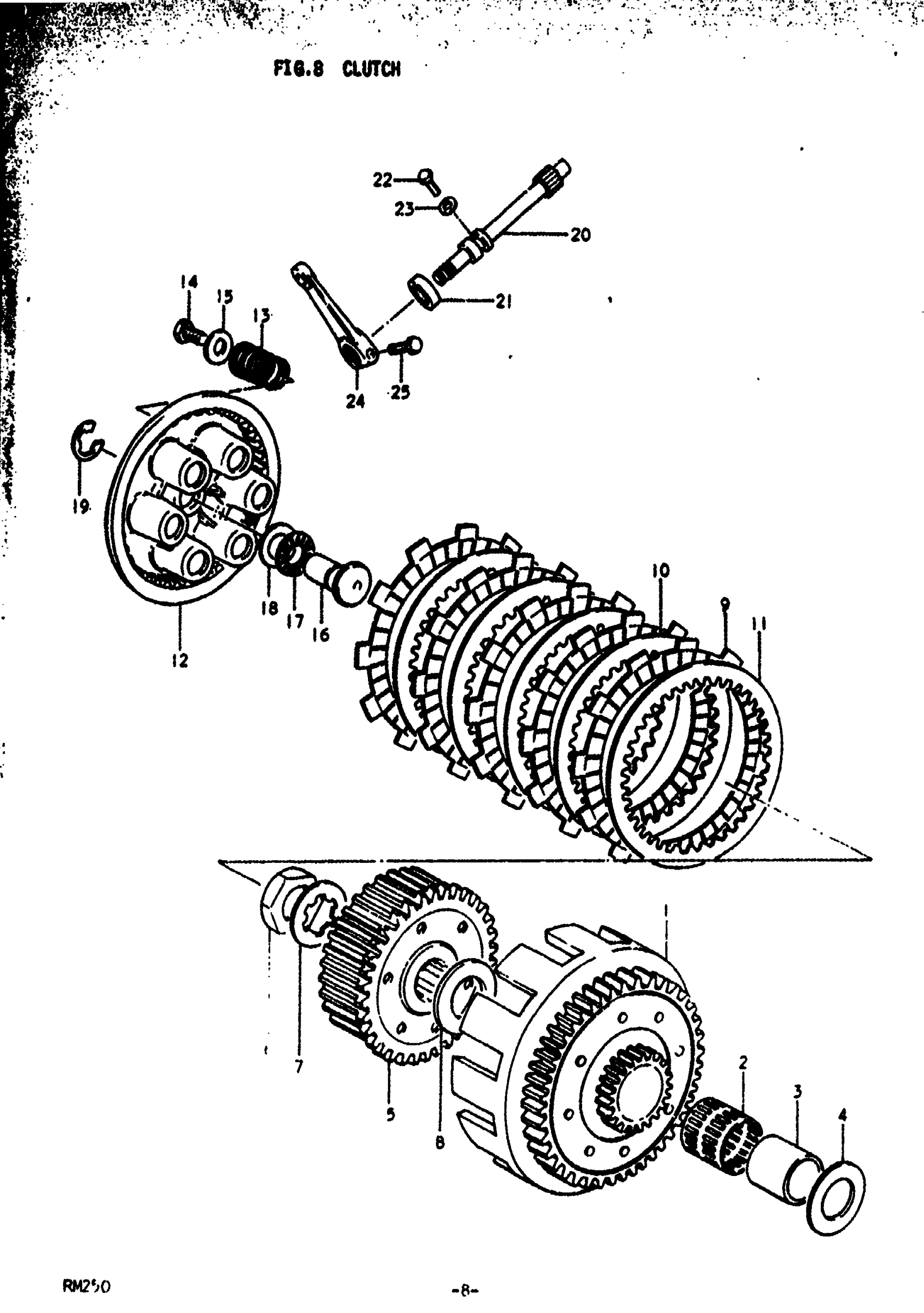

Suzuki RM250 (1978) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | A,B,C,C2; NT:60/18

21200-41100

Unavailable

2

BEARING | A,B,C,C2

09263-25004

Unavailable

3

SPACER | A,B,C,C2; 20x25x26 This part replaces 09180-20025.

09180-20076

Unavailable

4

THRUST WASHER | A,B,C,C2; 20x38x2

09160-20028

Unavailable

5

HUB, SLEEVE | A,B,C,C2; FROM 21411-41100

21411-41101

Unavailable

6

NUT | A,B,C,C2 This part replaces 09140-20002.

09140-20001

$3.37

7

WASHER | A,B,C,C2; 16.5x38x0.8

09167-22005

$2.11

8

THRUST WASHER | A,B,C,C2; 20x38x2

09160-20028

Unavailable

9

PLATE, CLUTCH DRIVE NO.2 | A,B,C,C2 This part replaces 21441-16500.

21442-37401

$18.67

10

PLATE, CLUTCH DRIVEN | A,B,C This part replaces 21451-40000.

21451-31000

$10.40

10

PLATE, CLUTCH DRIVEN | C2; FROM 21451-40000 This part replaces 21451-40001.

21451-31000

$10.40

11

PLATE, DRIVEN NO. 2 | A,B,C,C2

21451-31000

$10.40

12

PLATE, PRESSURE | A,B,C,C2 This part replaces 21462-16500.

21462-14301

$59.33

13

SPRING | A,B,C,C2

09440-19007

$2.52

14

BOLT, CANISTER | A,B,C,C2 This part replaces 01107-06168.

01500-06167

$1.97

15

WASHER (6.5X20X1.6) | A,B,C,C2; 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

16

NO DESCRIPTION AVAILABLE | A,B; TO 23165-16501 This part replaces 23165-16500.

23165-16502

Unavailable

16

NO DESCRIPTION AVAILABLE | C,C2 This part replaces 23165-16501.

23165-16502

Unavailable

17

THRUST BEARING | A,B,C,C2

09263-15003

$8.29

18

WASHER, CLUTCH PUSH | A,B,C,C2; 15x28x1 This part replaces 09160-15015.

09160-15045

$3.89

19

E-RING | A,B,C,C2 This part replaces 08332-11128.

08332-1112A

$2.15

20

PINION, RELEASE | A,B,C,C2 This part replaces 23261-16500.

23261-16501

Unavailable

21

OIL SEAL (12X22X9) | A,B,C,C2 This part replaces 09285-12002.

09285-12006

$6.32

22

BOLT | A,B,C,C2

09135-06009

$2.23

23

WASHER | A,B,C,C2 This part replaces 08322-21068.

08322-01067

$2.13

24

ARM, RELEASE | A,B,C,C2

23271-40000

Unavailable

25

BOLT | A,B,C,C2 This part replaces 01107-06208.

01500-06207

$2.28
