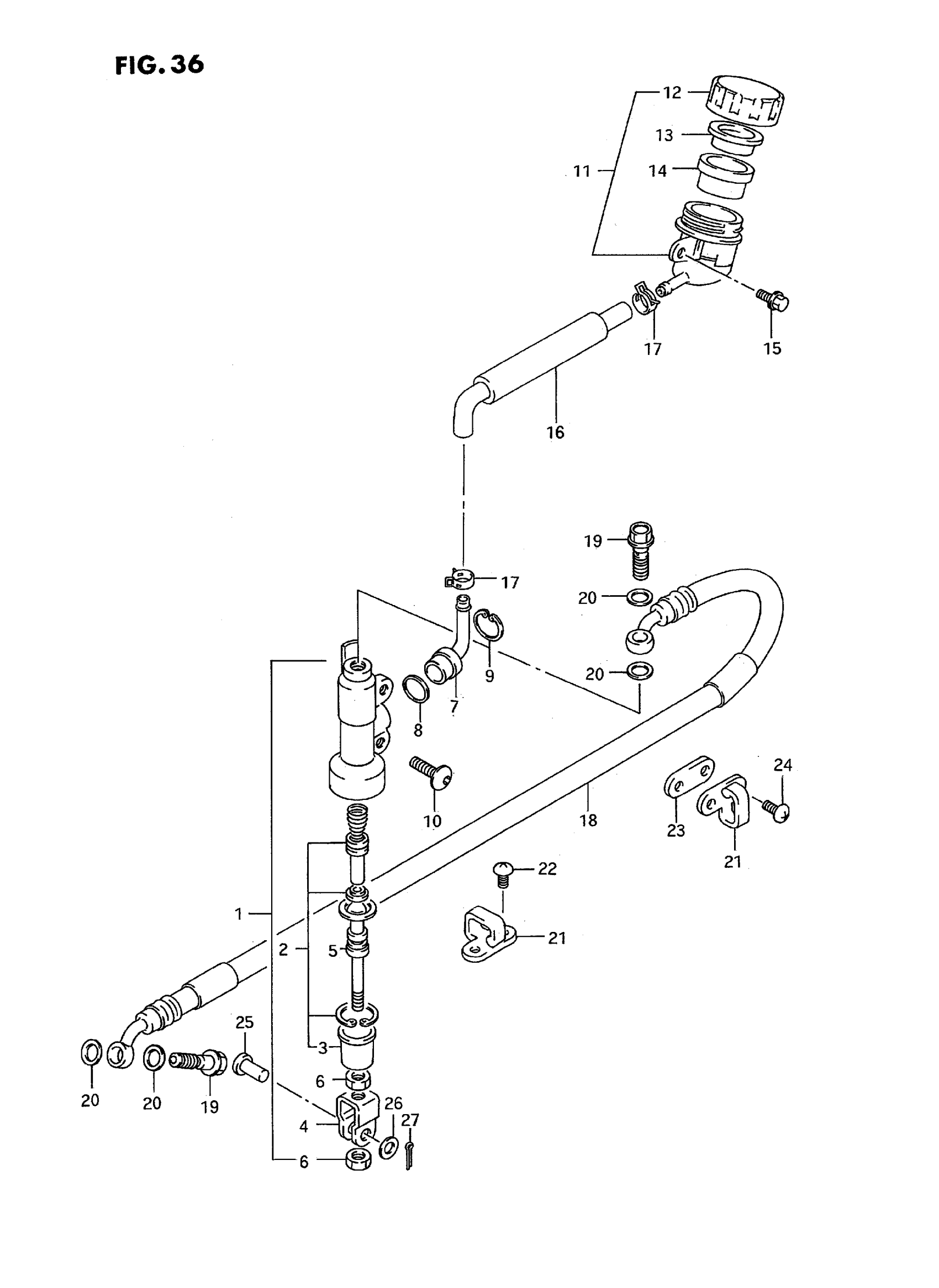

Suzuki RM125S (1995) REAR MASTER CYLINDER (MODEL N) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-43D00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-27A30

$26.23

6

NUT

69693-05A00

$1.96

7

CONNECTOR

69672-00B20

$7.01

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D10

$75.90

12

CAP

69669-03D10

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRAGM

69667-00B20

$15.68

15

BOLT

01547-06127

$1.65

16

HOSE, RESERVOIR TANK

69731-27C00

Unavailable

17

CLAMP

69735-00B20

$4.10

18

HOSE, REAR BRAKE This part replaces 69480-27C10.

69480-28E00

Unavailable

19

UNION This part replaces 09360-10034.

09360-10062

$6.43

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

GUIDE, HOSE

61196-27C20

$9.38

22

SCREW, REAR

09125-05042

$1.96

23

SEAT, HOSE GUIDE

61197-27C00

Unavailable

24

SCREW, FRONT

02142-05167

$1.49

25

PIN

09200-08048

$2.92

26

WASHER

09160-08074

Unavailable

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

28

REFER TO FIG.36A(G-6) FOR

SPECIAL NOTE

Unavailable
