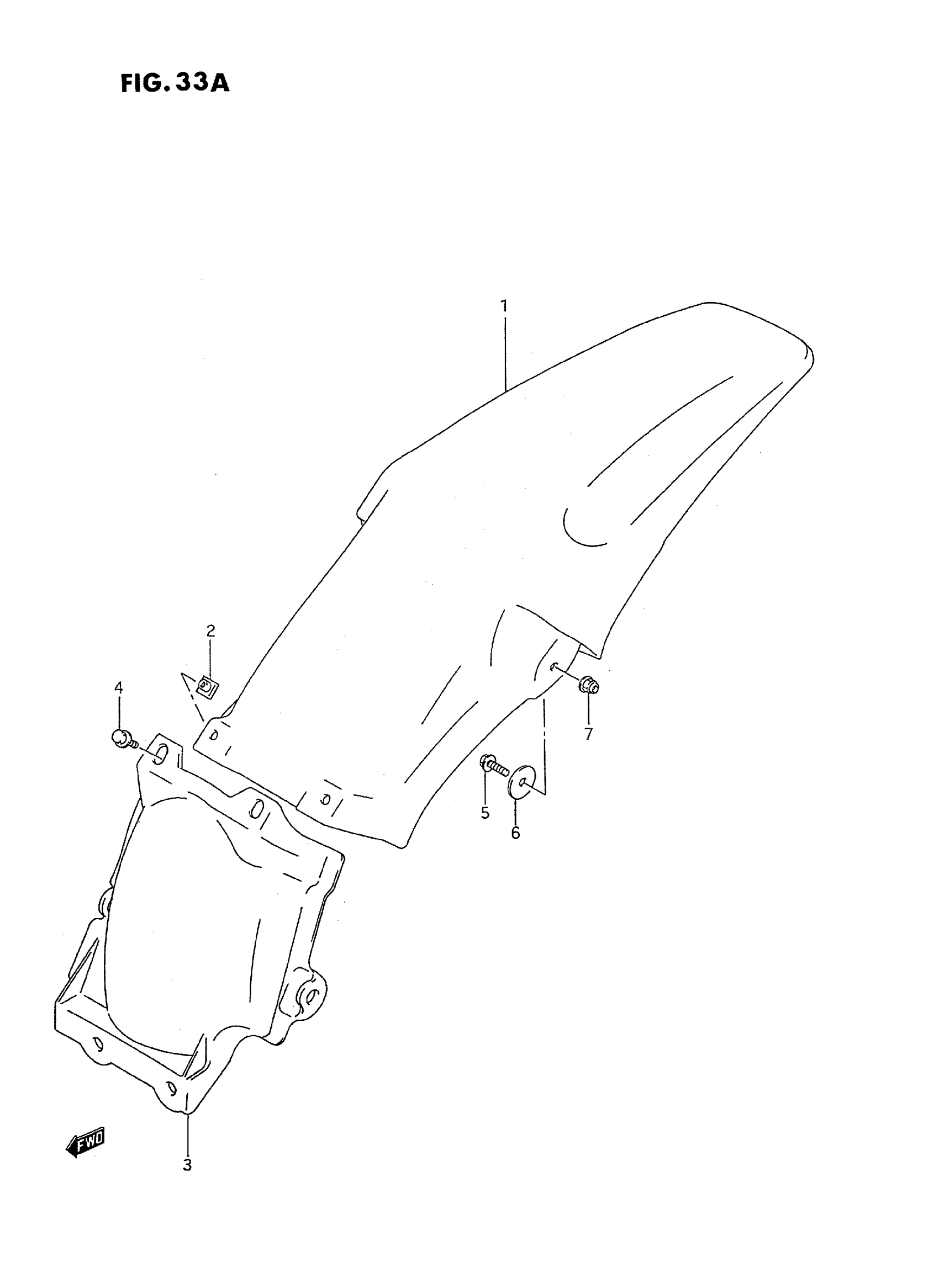

Suzuki RM125S (1995) REAR FENDER (MODEL P/R/S) Diagram

#

Description

Price

1

BODY, REAR FENDER REAR

63113-28E11-25Y

Unavailable

2

NUT, REAR FENDER

63167-28E00

Unavailable

3

BODY, REAR FENDER FRONT

63112-28E01

Unavailable

4

BOLT, FRONT | MODEL P

01547-06127

$1.65

4

BOLT | MODEL R/S This part replaces 01547-06123.

01547-0612B

$1.49

5

BOLT, LH | MODEL P

01547-06167

$1.65

5

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

6

WASHER This part replaces 09160-06030.

09160-06136

$1.84

7

NUT

08319-31067

$2.03
