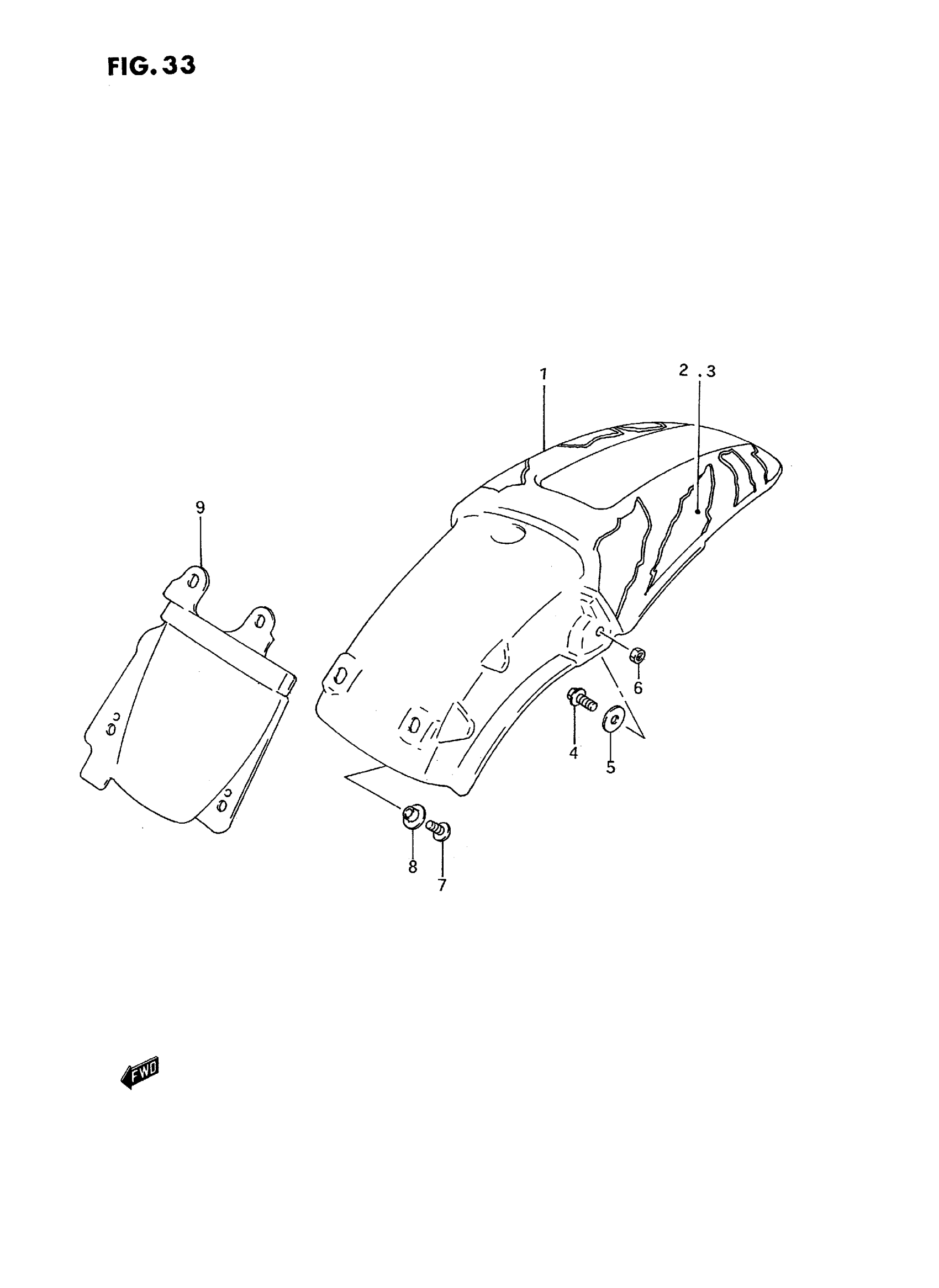

Suzuki RM125S (1995) REAR FENDER (MODEL N) Diagram

#

Description
Price

1

BODY, REAR FENDER (WHITE)

63113-27C10-30H

Unavailable

2

EMBLEM, FENDER RH

68175-43D00-1JH

Unavailable

3

EMBLEM, FENDER LH

68176-43D00-1JH

Unavailable

4

BOLT, REAR LH

01547-06167

$1.65

5

WASHER This part replaces 09160-06030.

09160-06136

$1.84

6

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

7

SCREW, FRONT This part replaces 09125-06090.

09125-06088

$2.30

8

WASHER

09169-06059

$2.90

9

MUD GUARD, FENDER FRONT

63351-28C00

Unavailable

10

REFER TO FIG.33A(F-14) FOR

SPECIAL NOTE

Unavailable
