1995 Suzuki RM125S Rear Calipers Diagram

← All diagrams

Find the part on the Rear Calipers diagram for your 1995 Suzuki RM125S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

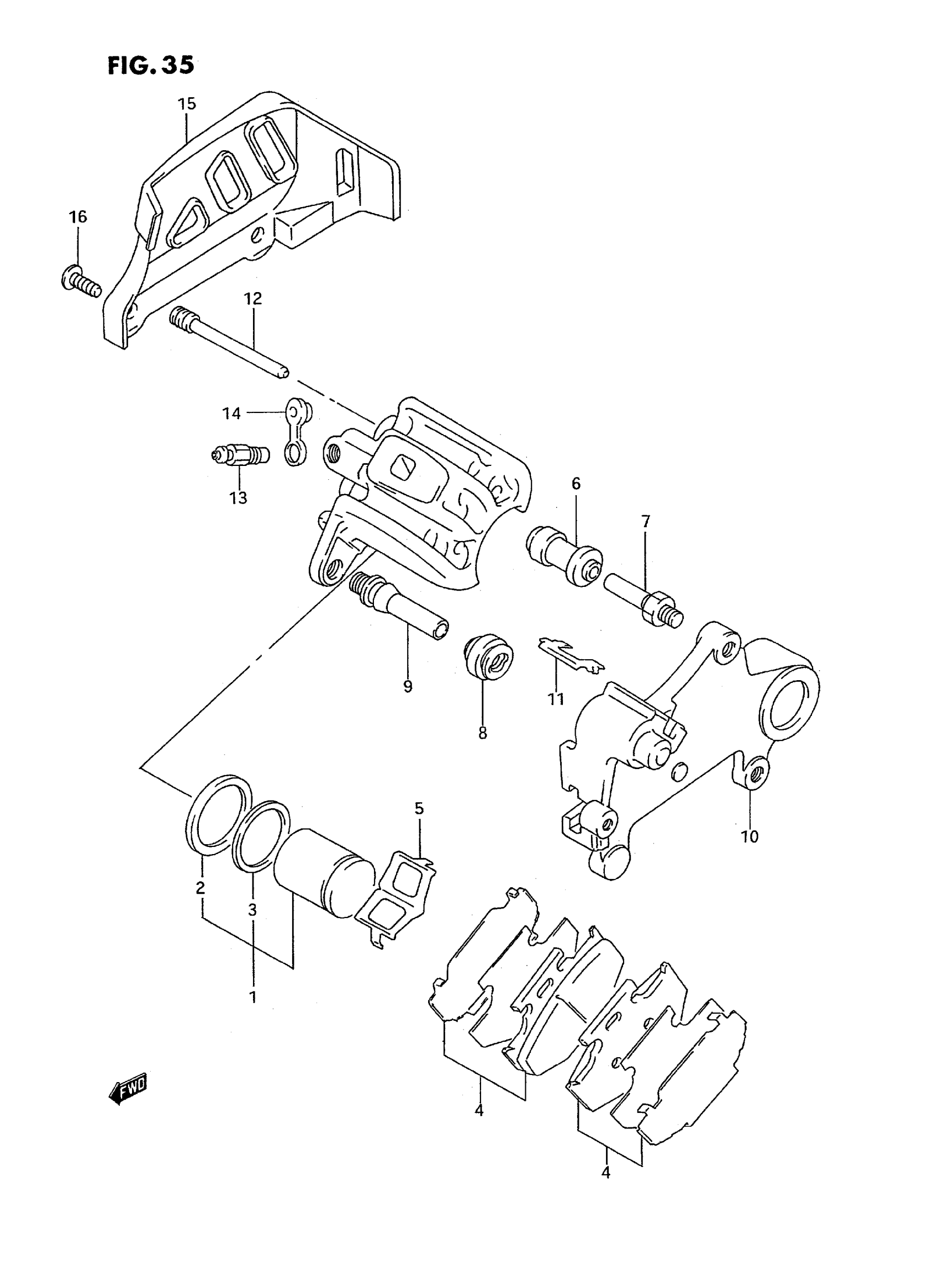

1995 Suzuki RM125S Rear Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY, REAR | ->69100-43D01 This part replaces 69100-43D00.

69100-43D01

1
Out of stock

CALIPER ASSY, REAR | Includes Item(s) 1 - 14

69100-43D01

1
Out of stock

1

PISTON SET

69100-43810

1

$36.52

In stock

2

1

$9.26

In stock

3

SEAL, DUST

59108-00B20

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 69100-43820.

69100-43821

2
Out of stock

5

SPRING

59315-27C10

1

$13.20

In stock

6

BOOT

59386-13A00

1
Out of stock

7

PIN

59382-14500

1

$9.18

In stock

8

BOOT

59303-14500

1
Out of stock

9

PIN

59305-27C00

1

$26.52

In stock

10

BRACKET

69351-43D01

1
Out of stock

11

RETAINER

69113-43D00

1
Out of stock

12

.PIN HANGER

69345-43D00

2

$15.33

In stock

13

BLEEDER

59121-01A00

1
Out of stock

14

CAP

59122-01A00

1
Out of stock

15

GUARD, CALIPER

69725-27C30

1
Out of stock

16

SCREW

09139-06027

2
Out of stock

17

REFER TO FIG.35A(G-3) FOR

SPECIAL NOTE

—
Out of stock
