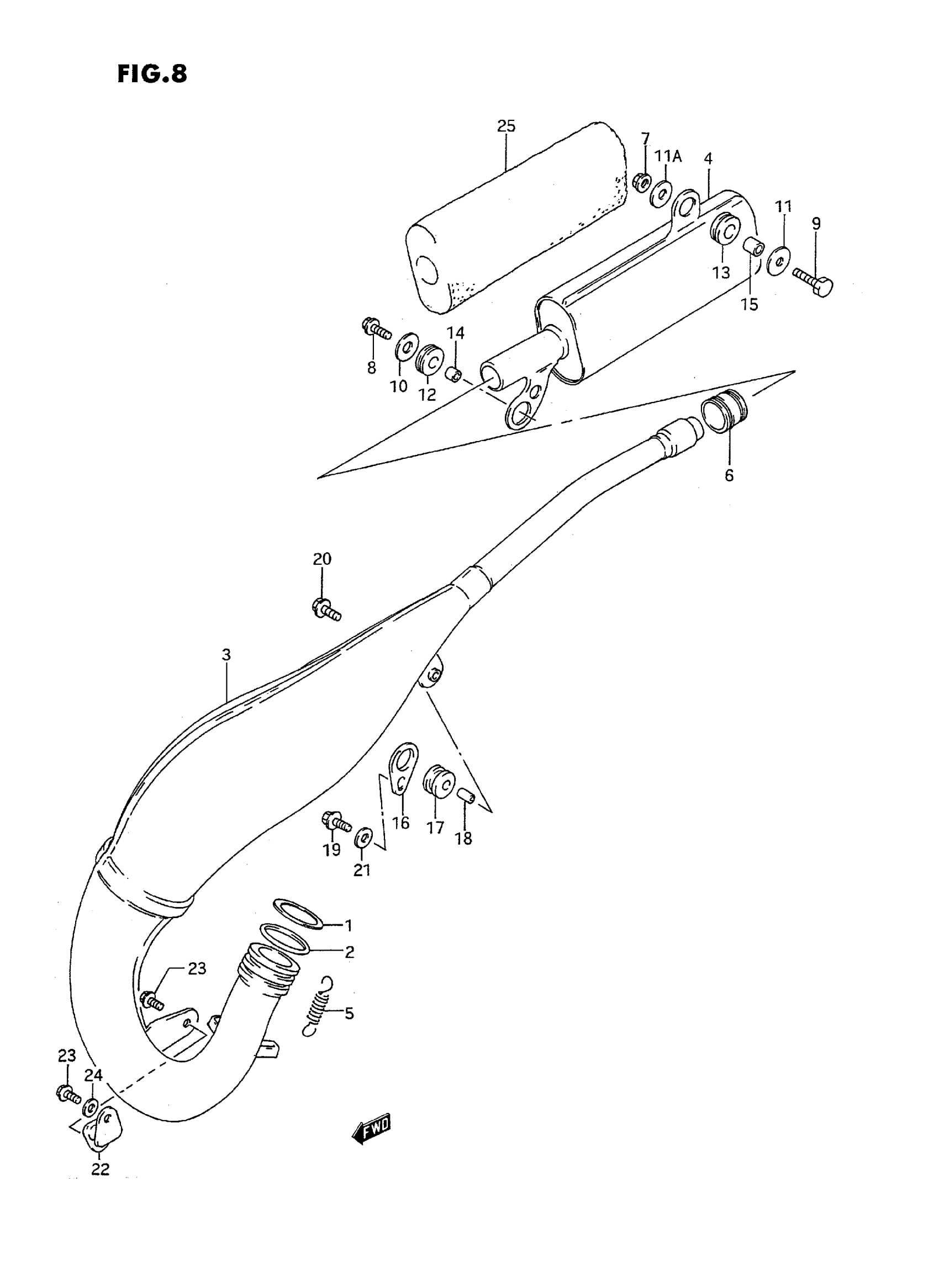

Suzuki RM125S (1995) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE

14172-27C30

Unavailable

2

O RING, EXHAUST PIPE

14171-27C30

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 14310-43D00-H01.

14310-43D00

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL P/R/S This part replaces 14310-43D10-H01.

14310-43D10

Unavailable

4

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 14330-27C42-H01.

14330-27C43-H01

Unavailable

4

BODY, MUFFLER 2 | MODEL P/R/S This part replaces 14330-43D00-H01.

14330-43D00

Unavailable

5

SPRING

09443-11027

$7.31

6

CONNECTOR, 2ND MUFFLER | MODEL N

14771-43D00

$21.25

6

CONNECTOR, MUFFLER | MODEL P/R/S This part replaces 14771-43D10.

14771-43D11

$87.67

7

NUT | MODEL N

08319-31087

$2.32

7

NUT | MODEL P/R/S

08319-31067

$2.03

8

BOLT, FR

01547-06207

$2.01

9

BOLT | MODEL N This part replaces 01107-08307.

01500-08307

$3.04

9

BOLT, RR | MODEL P/R/S

01547-06257

$2.03

10

WASHER (6.5X24X1.2) This part replaces 09160-06002.

09160-06114

$2.03

11

WASHER (8.5X26X1.2)

09160-08032

$2.30

11A

WASHER (6.5X24X1.2) | MODEL P/R/S This part replaces 09160-06002.

09160-06114

$2.03

12

CUSHION, FR

09320-10041

Unavailable

13

CUSHION, RR

09320-11016

Unavailable

14

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74

15

SPACER,8.1X11.5 | MODEL N This part replaces 09180-08155.

09180-08170

$5.73

15

SPACER (6.5X11.5X13) | MODEL P/R/S

09180-06212

$2.93

16

PLATE, MOUNTING

14761-27C00

$8.76

17

CUSHION (8.7X26X14) This part replaces 14762-01B01.

14762-01B02

$3.74

18

SPACER This part replaces 09180-06062.

09180-06268

$2.19

19

BOLT | MODEL N/P

01547-06257

$2.03

19

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

20

BOLT | MODEL N/P

01547-06127

$1.65

20

BOLT | MODEL R/S This part replaces 01547-06123.

01547-0612B

$1.49

21

WASHER (6.5X20X1.2) | MODEL N/P This part replaces 09160-06027.

09160-06077

$1.91

21

WASHER, CLUTCH RLSE NO.2 | MODEL R This part replaces 09160-06069.

09160-06052

$1.49

21

WASHER (6.5X18X1.6) | MODEL S This part replaces 09160-06057.

09160-06109

$1.49

22

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

23

BOLT | MODEL N/P

01547-06167

$1.65

23

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

24

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

25

SILENCER, MUFFLER | OPT

14351-27C40

Unavailable
