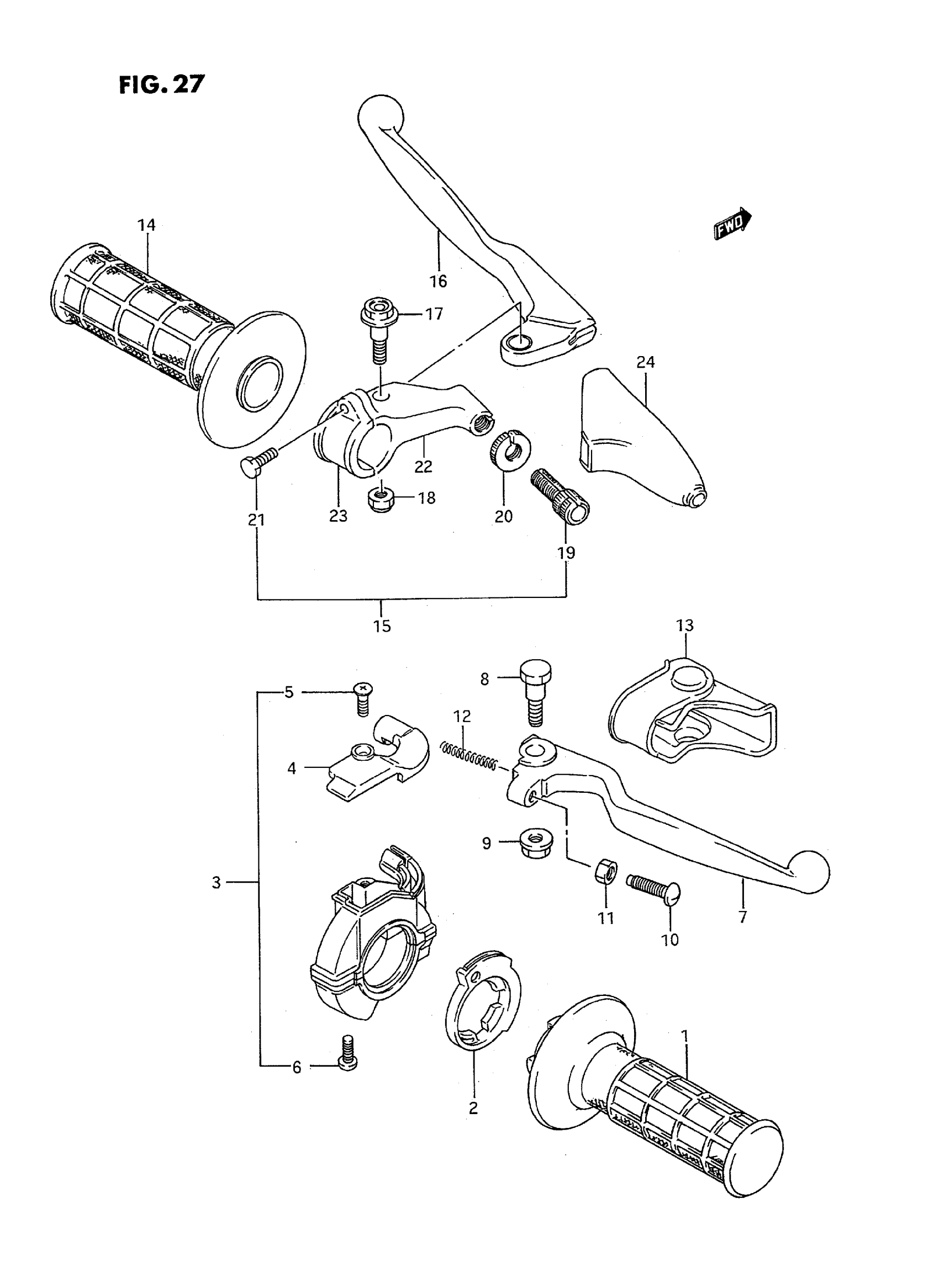

Suzuki RM125S (1995) HANDLE SWITCH (N/P/R) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-27C00

$26.37

2

ROTOR, THROTTLE

57114-14301

Unavailable

3

CASE ASSY, THROTTLE | Includes Item(s) 4 - 6

57100-14302

Unavailable

4

COVER

57129-14302

Unavailable

5

SCREW This part replaces 02132-04105.

02122-0410A

$1.49

6

SCREW

02112-05167

$1.97

7

LEVER, BRAKE

57421-27C00

$14.24

8

BOLT, BRAKE LEVER

57431-14500

$6.28

9

NUT This part replaces 57442-14500.

08316-1006B

$2.50

10

BOLT, ADJUST

57431-14511

$5.80

11

NUT This part replaces 08310-12055.

08310-0005A

$1.84

12

SPRING, RETURN

57318-14502

$4.48

13

COVER, BRAKE LEVER

57341-14501

$7.97

14

GRIP LH

57211-27C00

$12.28

15

LEVER ASSY,CLUTCH | MODEL N/P This part replaces 57500-28C00.

57500-28C13

$82.52

15

LEVER ASSY,CLUTCH | MODEL R; Includes Item(s) 16 - 23 This part replaces 57500-28C10.

57500-28C13

$82.52

16

LEVER, CLUTCH

57621-28C00

$16.33

17

BOLT This part replaces 57431-28C00.

57431-28C01

$8.47

18

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

19

ADJUSTER, CABLE | MODEL N/P

57441-28C00

Unavailable

19

ADJUSTER, CABLE | MODEL R

57441-28C10

$13.73

20

NUT

57442-28C00

$12.97

21

BOLT This part replaces 01107-05167.

01500-0516B

$2.15

22

HOLDER

57511-28C00

Unavailable

23

.BRACKET, CLUTCH LEVER HOLDER

57512-28C00

$25.63

24

COVER, CLUTCH LEVER This part replaces 57341-40001.

57341-40003

$5.56

25

REFER TO FIG.27A(E-16) FOR

SPECIAL NOTE

Unavailable
