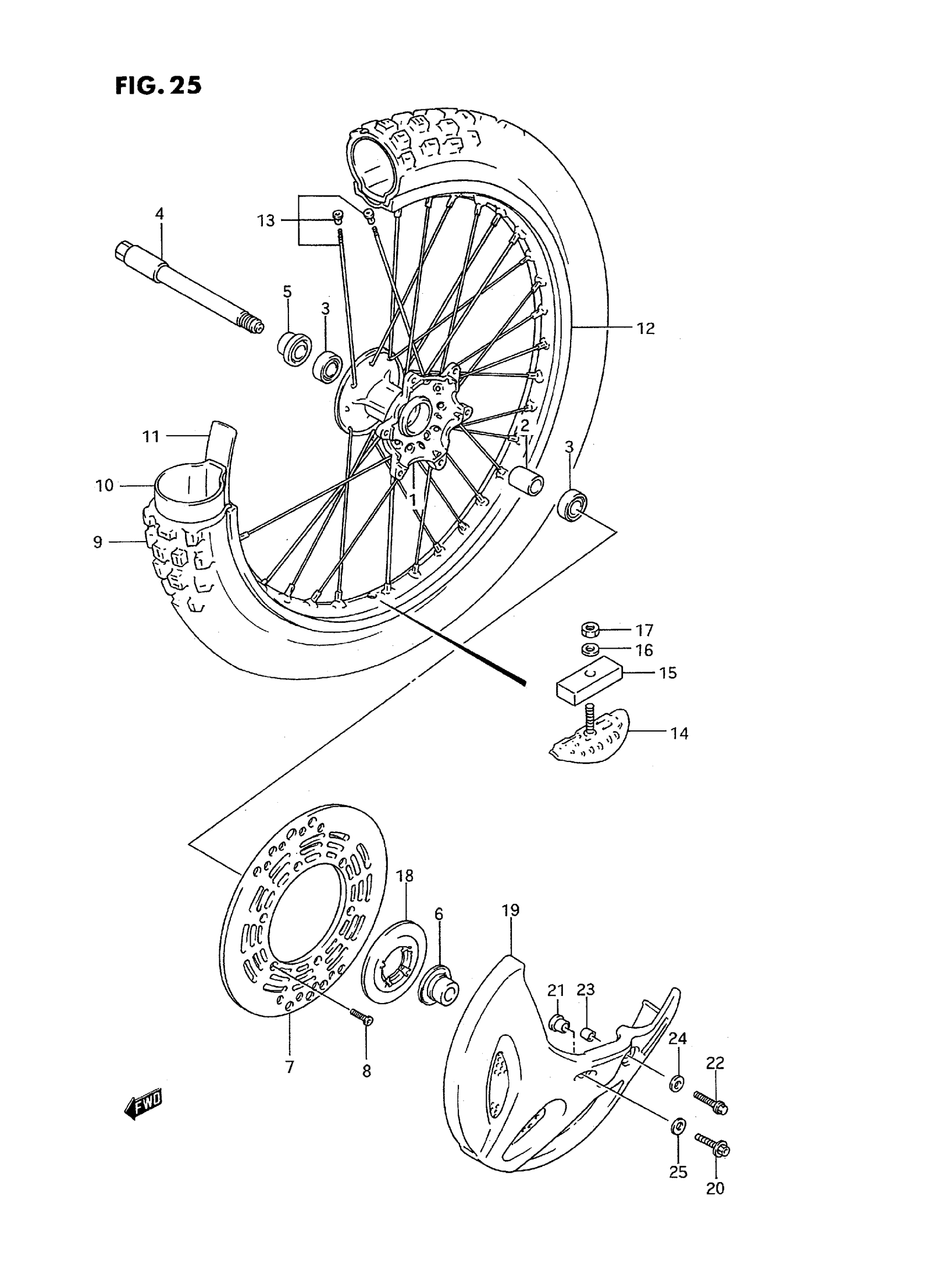

Suzuki RM125S (1995) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-27C00

Unavailable

2

SPACER, FRONT HUB This part replaces 54731-43D00.

54730-01B00

$53.92

3

BEARING

08133-60037

$30.28

4

AXLE, FRONT

54711-01B02

Unavailable

5

SPACER, AXLE RH

54740-01B01

Unavailable

6

SPACER, AXLE, LH This part replaces 54750-27C10.

54750-05D00

Unavailable

7

DISC, FRONT BRAKE

59221-28C00

Unavailable

8

SCREW

59421-29E00

$4.82

9

NO DESCRIPTION AVAILABLE | MODEL N/P/R->55110-43D10 This part replaces 55110-43D00.

55110-36E00

Unavailable

9

TIRE, FRONT (80/100-21) | MODEL S

55110-01B10

Unavailable

10

TIRE, FRONT | MODEL N/P/R This part replaces 55200-14540.

55200-16511

$36.73

10

TIRE, FRONT | MODEL S This part replaces 55200-16510.

55200-16511

$36.73

11

PROTECTOR

55261-14540

$3.83

12

RIM, FRONT WHEEL (1.60X21) This part replaces 55311-28C00.

55311-28C01

Unavailable

13

SPOKE SET, FRONT WHEEL | MODEL N This part replaces 55320-01B00.

55320-28E00

$137.05

13

SPOKE SET, FRONT WHEEL | MODEL P/R/S

55320-28E00

$137.05

14

STOPPER, BEAD

65270-14300

$52.73

15

CUSHION, BEAD STOPPER

65271-27C00

$7.42

16

WASHER | MODEL N/P This part replaces 08322-11088.

08322-01087

$2.13

16

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

17

NUT | MODEL N/P This part replaces 08310-12088.

08310-00087

$2.13

17

NUT | MODEL R/S This part replaces 08310-00083.

08310-0008A

$1.84

18

CAP, HUB LH

54138-27C10

Unavailable

19

COVER, FRONT BRAKE DISC | MODEL N->59231-28C01-25YW/09160-08043 This part replaces 59231-28C00-25Y.

59231-28C01-25Y

Unavailable

19

COVER, FRONT BRAKE DISC | MODEL N/R/S

59231-28C01-25Y

Unavailable

19

COVER, FRONT BRAKE DISC | MODEL P

59231-28C01-30H

Unavailable

20

BOLT, CENTER

09103-08310

Unavailable

21

WASHER

09169-08047

Unavailable

22

BOLT, REAR | MODEL N/P

01547-06257

$2.03

22

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

23

SPACER

09180-06116

Unavailable

24

WASHER (6.5X18X1.0)

09160-06028

$1.49

25

WASHER

09160-08043

$1.83
