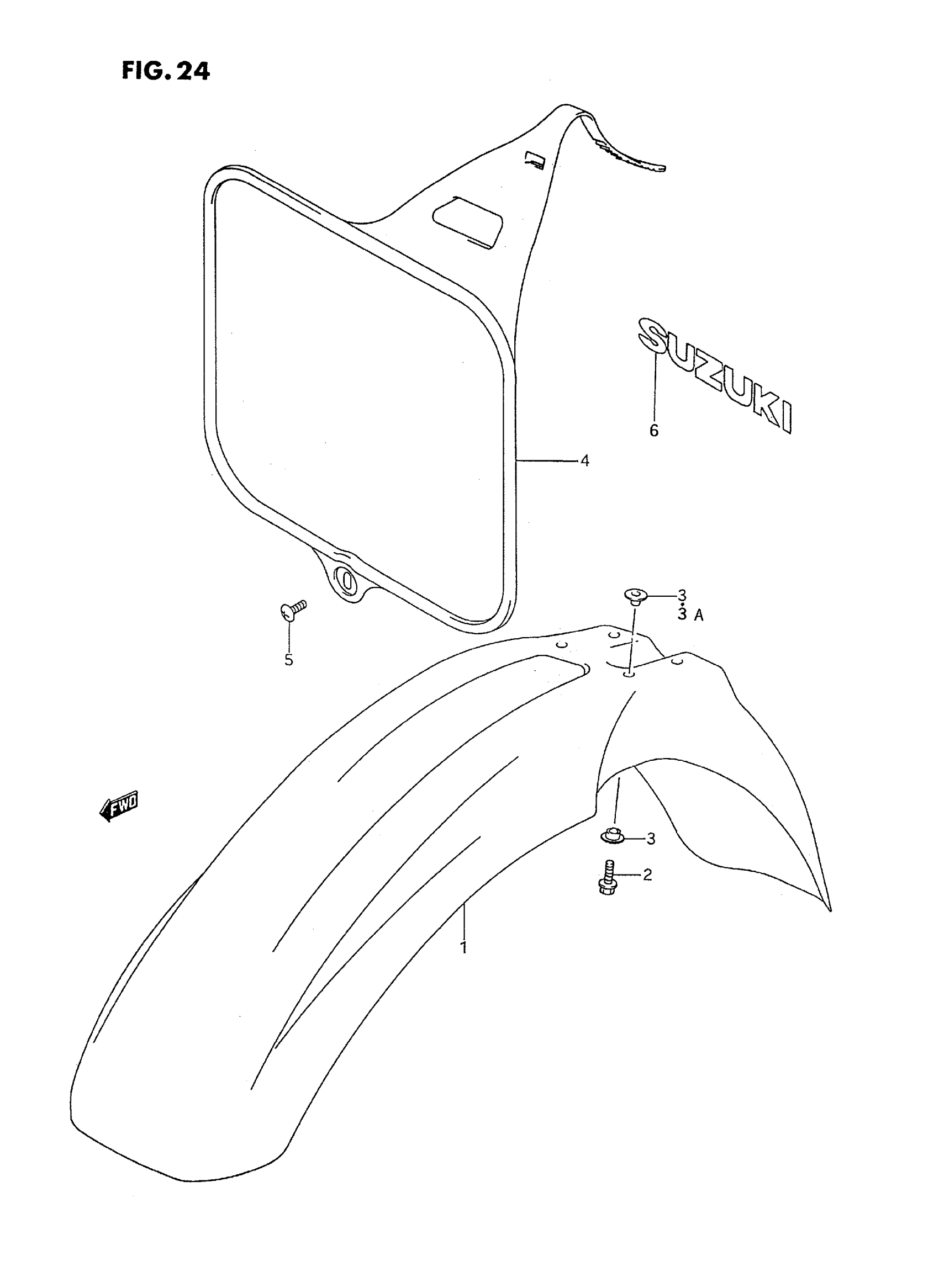

Suzuki RM125S (1995) FRONT FENDER - FRONT NUMBER PLATE Diagram

#

Description

Price

1

FENDER, FRONT | ->53111-27C01-25Y This part replaces 53111-27C00-25Y.

53111-27C02-25Y

Unavailable

1

FENDER, FRONT This part replaces 53111-27C01-25Y.

53111-27C02-25Y

Unavailable

2

BOLT | MODEL N/P

01547-06167

$1.65

2

BOLT | MODEL R This part replaces 01547-06163.

01547-0616B

$2.45

2

BOLT | MODEL S

09116-06170

$2.50

3

WASHER (6.3X16X1) | MODEL N/P/R

09169-06053

$1.49

3A

WASJER | MODEL S

09169-06073

$3.42

4

PLATE, FRONT NUMBER (WHITE) | MODEL N This part replaces 94911-00B01-30H.

94911-00B10-30H

Unavailable

4

PLATE, FRONT NUMBER (YELLOW) | MODEL P

94911-00B10-25Y

$64.72

4

PLATE, FRONT NUMBER (WHITE) | MODEL R/S

94911-00B10-30H

Unavailable

5

SCREW | MODEL N This part replaces 02142-05164.

02142-0516A

$1.49

5

SCREW | MODEL P

02142-05167

$1.49

5

SCREW | MODEL R/S This part replaces 02142-05163.

02142-0516A

$1.49

6

EMBLEM, SUZUKI | MODEL N

68174-35B00-E93

Unavailable
