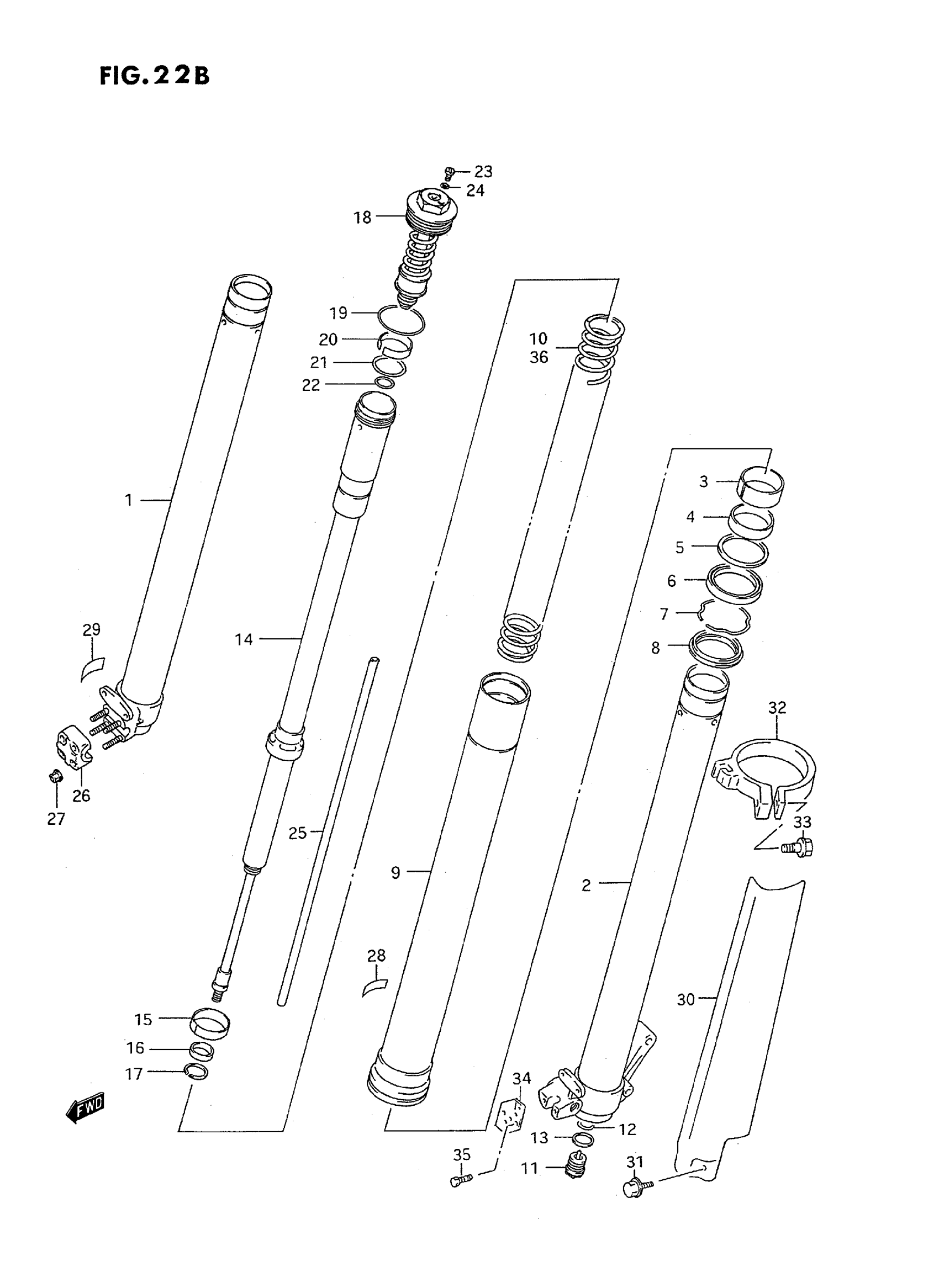

Suzuki RM125S (1995) FRONT DAMPER (MODEL R) Diagram

#

Description
Price

DAMPER ASSY, RH

51103-43D50

Unavailable

DAMPER ASSY, LH | Includes Item(s) 1 - 29

51104-43D50

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51110-28E30.

51110-28E31

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51120-28E30.

51120-28E31

Unavailable

3

BUSH, SLIDE

51121-27C40

Unavailable

4

BUSH, GUIDE

51167-28E30

Unavailable

5

SPACER, SEAL

51158-27C40

$8.53

6

SEAL, OIL

51153-28E30

$32.37

7

RING, OIL SEAL STOPPER

51156-27C40

$5.19

8

SEAL, DUST This part replaces 51173-28E30.

51173-28E40

$30.86

9

TUBE, OUTER

51130-28E30

Unavailable

10

SPRING, MAIN

51171-43D50

Unavailable

11

BOLT, CENTER

51170-28E30

Unavailable

12

GASKET

51148-14D00

Unavailable

13

O RING

51177-28E30

Unavailable

14

DAMPER, CARTRIDGE

51190-43D50

Unavailable

15

BUSH, DAMPER

51122-28E30

Unavailable

16

VALVE, OIL LOCK

51157-28E30

Unavailable

17

RING, VALVE STOPPER

51154-28E30

Unavailable

18

BOLT, FORK

51351-43D50

Unavailable

19

O RING, UPPER

51117-27C40

$6.22

20

BUSH, FORK BOLT SLIDE

51123-28E30

$15.22

21

O RING, CENTER

51174-28E30

Unavailable

22

O RING This part replaces 51175-28E30.

51175-03B30

$6.05

23

BOLT, PLUG

51357-28E30

$14.37

24

...O-RING

51358-28E30

$4.28

25

ROD, PUSH

51191-28E30

Unavailable

26

HOLDER, AXLE RH

51132-27C40

Unavailable

27

NUT

08319-31067

$2.03

28

LABEL

51145-43D50

Unavailable

29

LABEL

51149-28E30

Unavailable

30

PROTECTOR, RH This part replaces 51501-29E10.

51501-29E00

$123.14

30

PROTECTOR, LH

51511-29E00

Unavailable

31

BOLT

01500-05087

$2.13

32

GUIDE, PROTECTOR

51210-43D00

Unavailable

33

BOLT This part replaces 58628-43D00.

01547-06207

$2.01

34

GUIDE, HOSE LH

59248-27C40

Unavailable

35

BOLT, GUIDE

01500-05087

$2.13

36

SPRING, MAIN | OPT This part replaces 51171-28E30.

51171-28E40

Unavailable

37

REFER TO FIG.22C(E-8) FOR

SPECIAL NOTE

Unavailable
