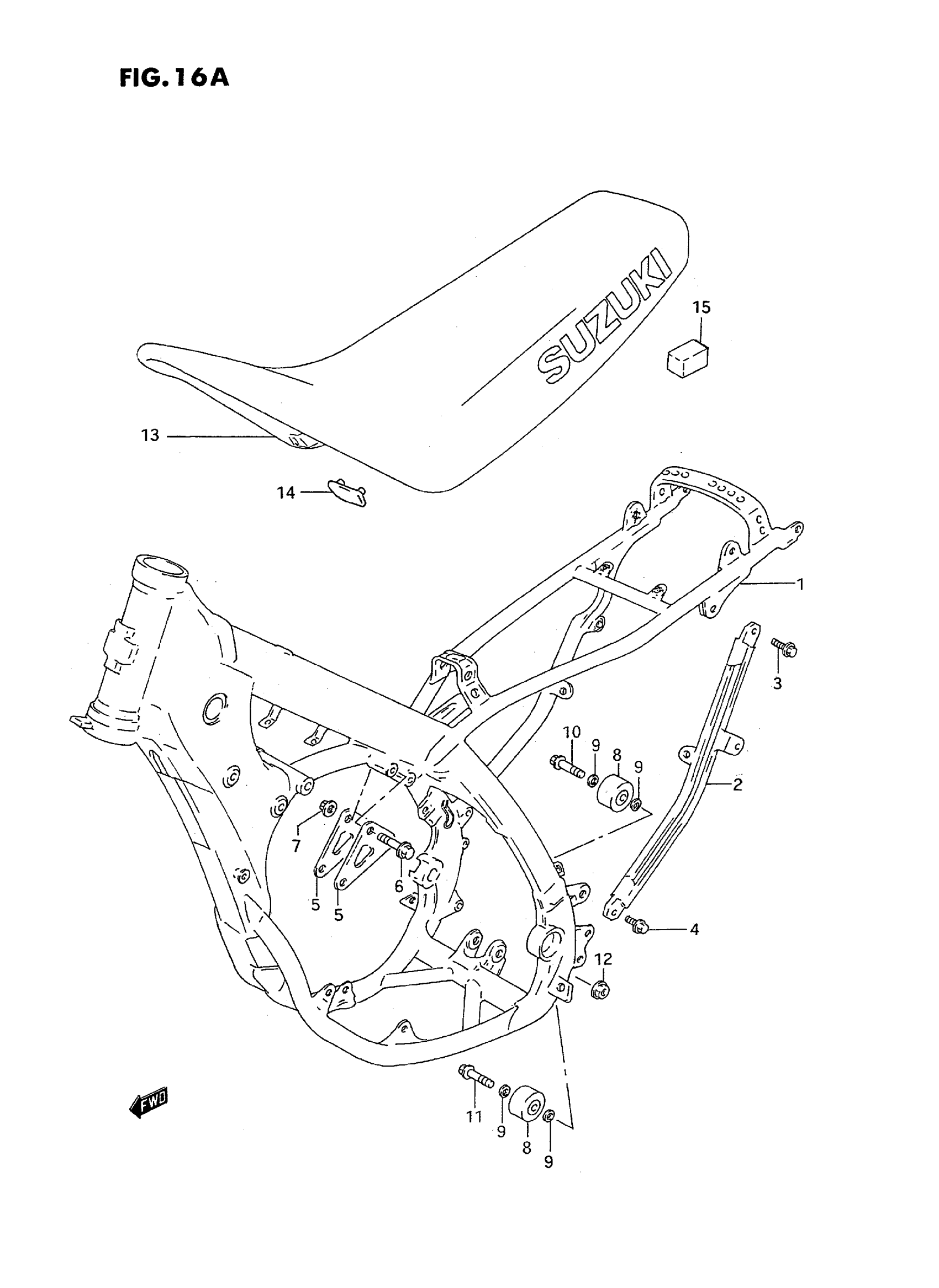

Suzuki RM125S (1995) FRAME - SEAT (MODEL R/S) Diagram

#

Description
Price

1

FRAME SET (CHARCOAL) | MODEL R This part replaces 41100-43D20-24K.

41100-43D30-24K

Unavailable

1

FRAME SET (CHARCOAL) | MODEL S

41100-43D30-24K

Unavailable

2

TUBE, FRAME SIDE

41670-28E01

Unavailable

3

BOLT This part replaces 01560-08203.

01560-0820A

$3.15

4

BOLT This part replaces 01560-08163.

01560-0816A

Unavailable

5

PLATE, ENGINE MOUNTING UPPER

41993-43D02

Unavailable

6

BOLT

09103-08083

$3.70

7

NUT

09159-08067

$5.57

8

ROLLER, CHAIN CONTROL

43910-27C11

$64.67

9

WASHER

08211-08121

$1.99

10

BOLT, UPPER

09103-08083

$3.70

11

BOLT, LOWER

09103-08043

$3.18

12

NUT, LOWER

08319-31087

$2.32

13

SEAT ASSY | MODEL R This part replaces 45100-28E11-A5K.

45100-28E12-D6Z

Unavailable

13

SEAT ASSY | MODEL S; Includes Item(s) 14 - 15

45100-28E12-D6Z

Unavailable

14

CUSHION

09329-10001

$2.12

15

CUSHION, SIDE

45299-28E00

Unavailable
