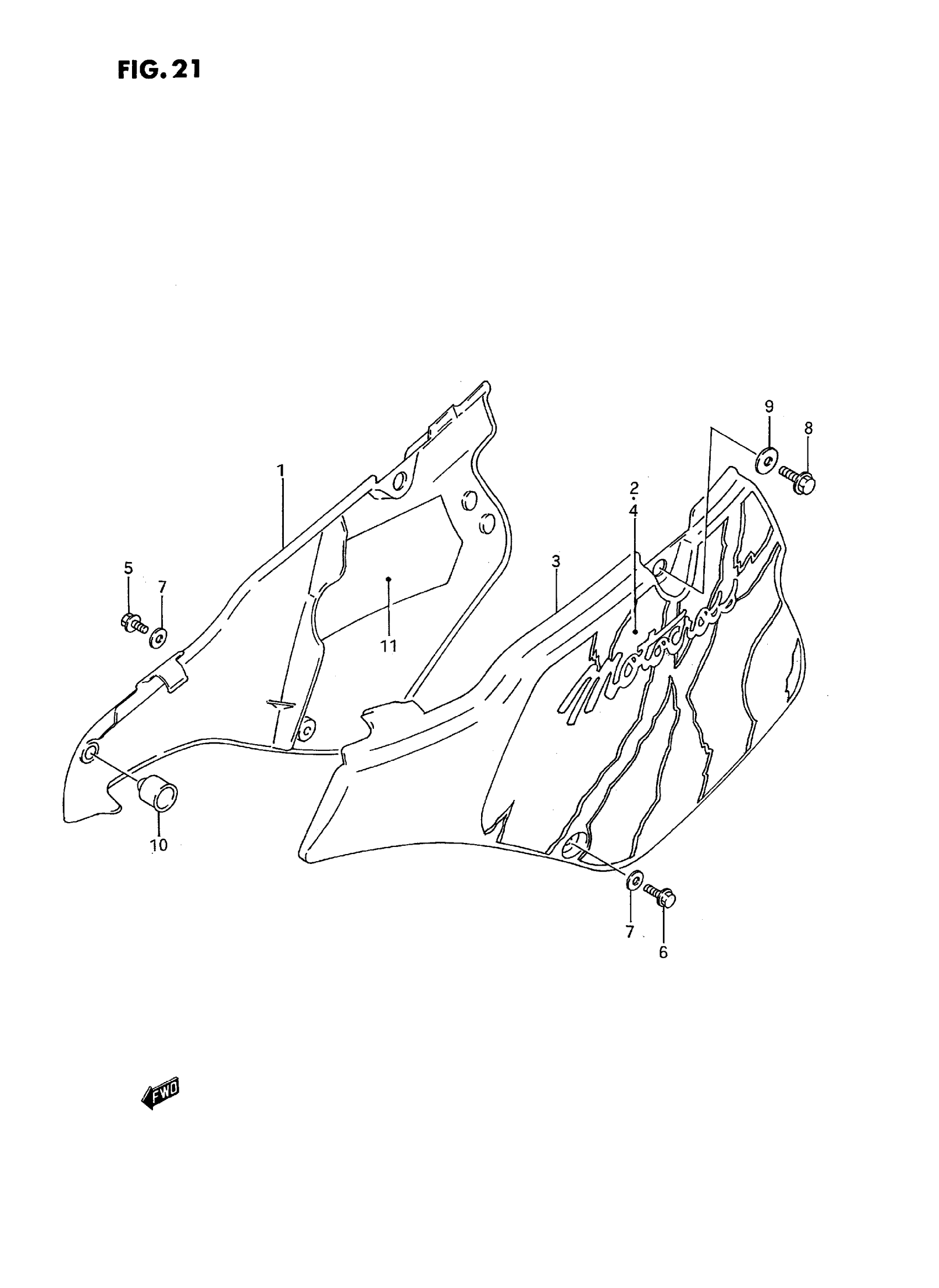

Suzuki RM125S (1995) FRAME COVER (MODEL N) Diagram

COVER, FRAME RH (WHITE)

47111-27C02-30H

Unavailable

TAPE, RH

68132-43D10-1JH

Unavailable

COVER, FRAME LH (WHITE)

47211-27C00-30H

Unavailable

TAPE, LH

68142-43D10-1JH

Unavailable

BOLT, FRONT

01547-06127

$1.65

BOLT, FRONT LH

01547-06167

$1.65

WASHER

09168-06027

$2.80

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

WASHER, REAR

09169-08045

$2.23

CUSHION, MUFFLER REAR

09321-10027

$6.80

SHIELD,FRM CVR, This part replaces 47166-27C01.

47167-28C10

Unavailable

REFER TO FIG.21A(D-10) FOR

SPECIAL NOTE

Unavailable
