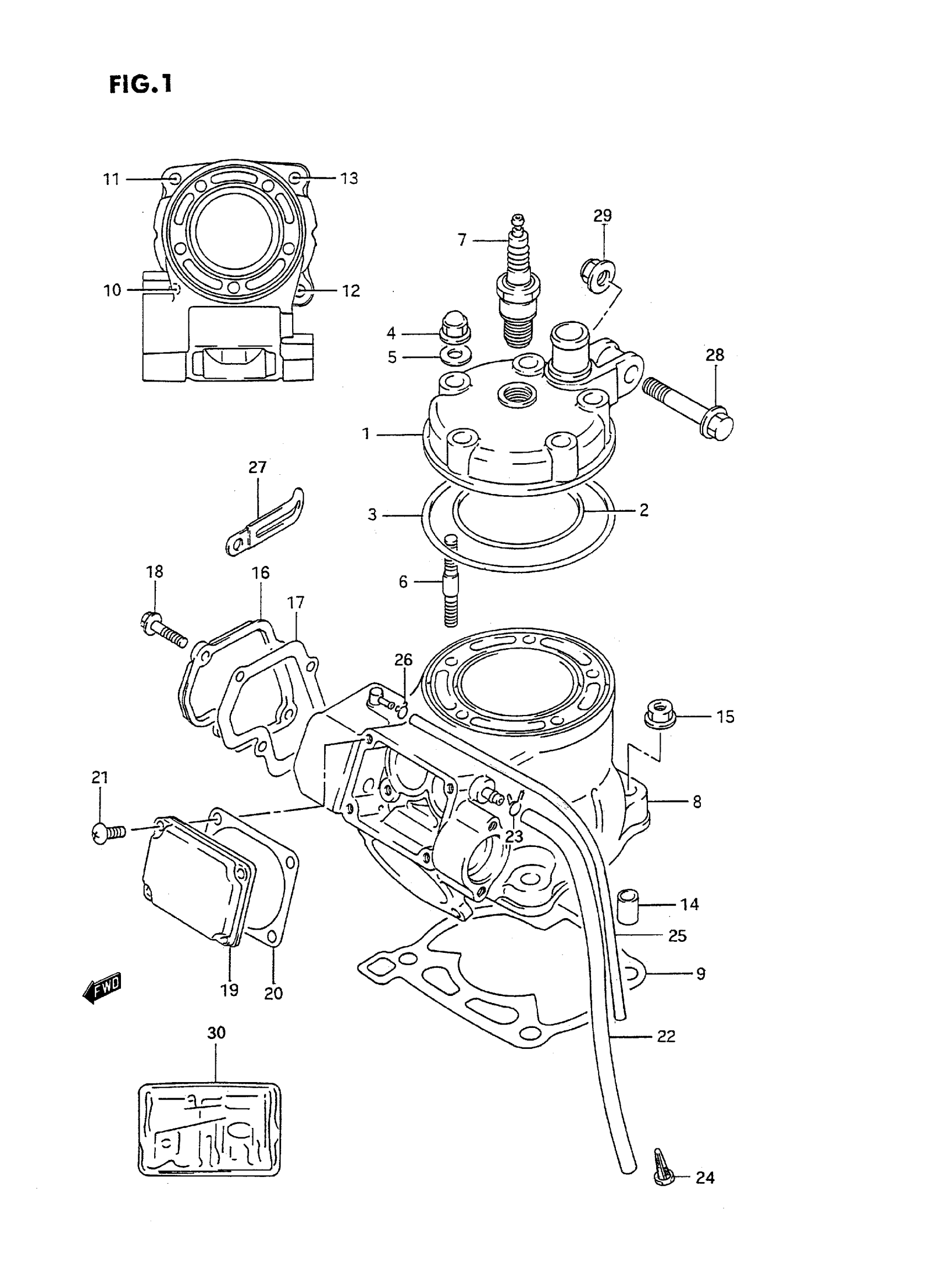

Suzuki RM125S (1995) CYLINDER Diagram

#

Description
Price

1

HEAD,CYLINDER | MODEL N This part replaces 11111-27C31.

11111-27C35

Unavailable

1

HEAD,CYLINDER | MODEL P This part replaces 11111-27C32.

11111-27C35

Unavailable

1

HEAD,CYLINDER | MODEL R/S This part replaces 11111-27C33.

11111-27C35

Unavailable

2

O RING, CYLINDER HEAD NO.1

11147-27C11

$11.98

3

O RING, CYLINDER HEAD NO.2

11148-27C11

$5.35

4

NUT

09159-08074

$5.36

5

WASHER

09168-08021

$2.61

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

$3.42

7

SPARK PLUG (NGK,R4118S-9)

09482-00500

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 11200-27832.

11200-27861

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 11200-27840.

11200-27861

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL R This part replaces 11200-27850.

11200-27861

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 11200-27860.

11200-27861

Unavailable

9

GASKET, CYLINDER

11241-27C10

$15.78

10

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

11

STUD BOLT (8X30)

09108-08142

$3.18

12

STUD BOLT This part replaces 01421-08358.

01421-0835A

$2.29

13

STUD BOLT (8X40)

09108-08144

$3.20

14

PIN

09206-11004

$5.36

15

NUT (CHROME) | MODEL N/P This part replaces 08316-16088.

08316-10087

$2.26

15

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.66

16

COVER, CYLINDER NO.1

11231-27C30

$30.85

17

GASKET, CYLINDER COVER NO.1 | MODEL N/P This part replaces 11233-27C31.

11233-27C34

$7.83

17

GASKET, CYLINDER COVER NO.1 | MODEL R/S This part replaces 11233-27C32.

11233-27C34

$7.83

18

BOLT | MODEL N/P

01547-06167

$1.65

18

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45

19

COVER, CYLINDER NO.2

11248-27C30

Unavailable

20

GASKET, CYLINDE | MODEL N This part replaces 11238-27C30.

11238-42E00

$6.30

20

GASKET, CYLINDE | MODEL P/R/S This part replaces 11238-27C31.

11238-42E00

$6.30

21

SCREW | MODEL N/P

02112-05167

$1.97

21

BOLT | MODEL R/S This part replaces 01500-05163.

01500-0516B

$2.15

22

HOSE (9X14X220)

09343-09501

$11.61

23

CLIP | MODEL N/P/R This part replaces 09401-12407.

09401-12405

$2.26

23

CLIP | MODEL S

09401-12405

$2.26

24

FILTER | MODEL S

11271-28E20

Unavailable

25

HOSE,5X10X600 | MODEL S,L:600->390 This part replaces 09352-50823-600.

44421-13ER0

$10.06

26

CLIP | MODEL S

09401-08401

$1.54

27

CLAMP | model N/P/R This part replaces 09404-06402.

09404-06039

$1.74

27

CLAMP, CLUTCH CABLE | MODEL S

09404-06429

$1.83

28

BOLT (8X41)

09103-08083

$3.70

29

NUT | MODEL N

09159-08034

$1.62

29

NUT | MODEL P/R/S

09159-08067

$5.57

30

GASKET SET | MODEL N This part replaces 11400-43862.

11400-43867

Unavailable

30

GASKET SET | MODEL P This part replaces 11400-43863.

11400-43867

Unavailable

30

GASKET SET | MODEL R This part replaces 11400-43864.

11400-43867

Unavailable

30

GASKET SET | MODEL S This part replaces 11400-43865.

11400-43867

Unavailable
