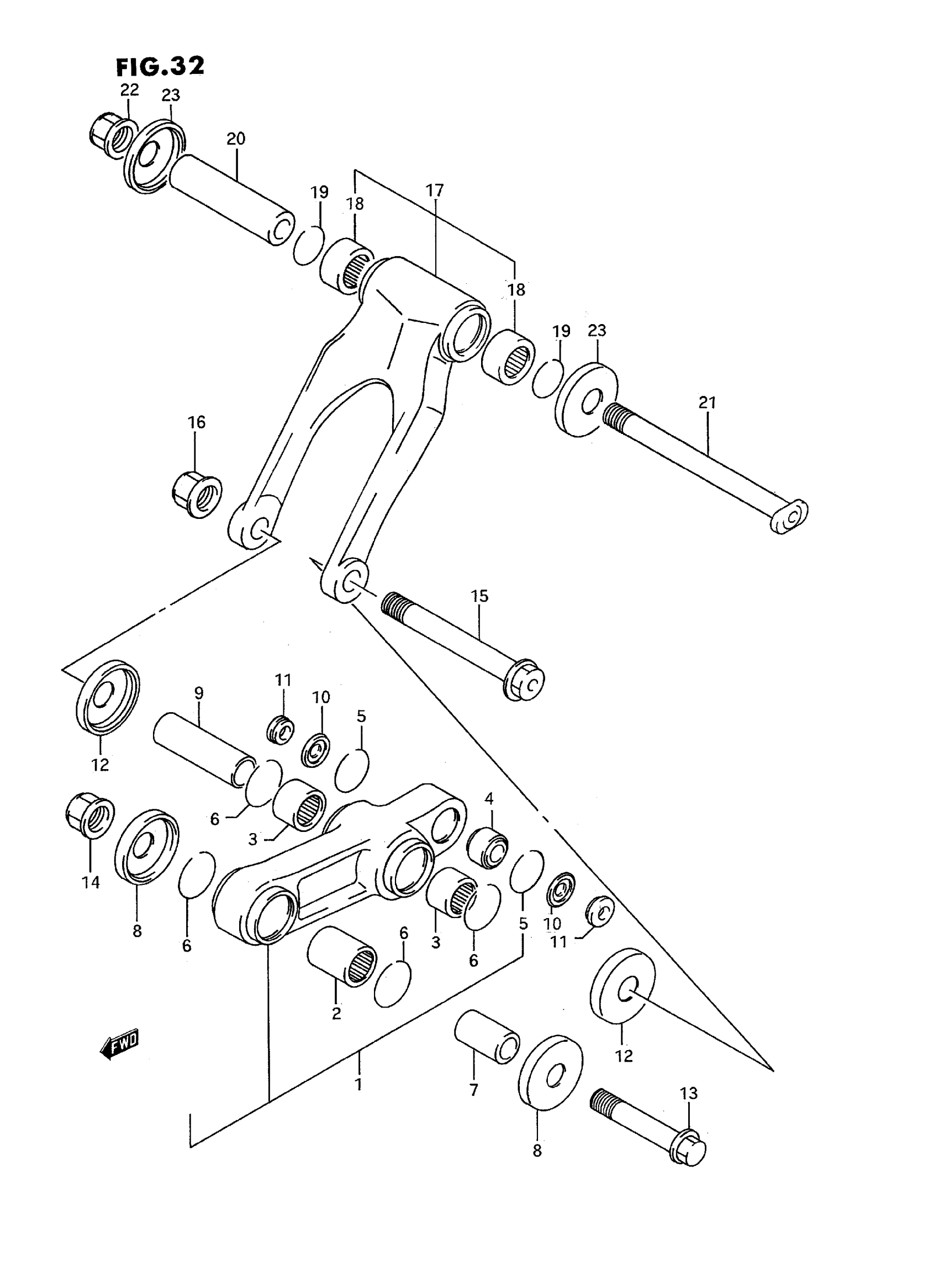

Suzuki RM125S (1995) CUSHION LEVER (MODEL N) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6 This part replaces 62601-27810.

62601-27811

Unavailable

2

BEARING, FRONT

09263-20053

$27.58

3

BEARING, CENTER

09263-21012

$24.81

4

BEARING, REAR

62175-43D00

Unavailable

5

RING, STOPPER REAR

62277-27C20

$3.92

6

RING, STOPPER, FR/CTR

09381-26002

$2.07

7

SPACER, FRONT CENTER

62317-27C10

$16.76

8

SEAL, DUST This part replaces 62162-28C01.

62162-28E01

$10.69

9

SPACER, CENTER This part replaces 62646-27C20.

62626-05D10

Unavailable

10

DUST SEAL, REAR

62226-43D00

Unavailable

11

SPACER, REAR

62684-28C10

$14.85

12

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C20.

62682-13E00

$13.30

13

BOLT, FRONT

62658-27C10

$11.68

14

NUT This part replaces 08319-31128.

08319-3112A

$3.76

15

SHAFT, CENTER

62621-27C20

$48.38

16

NUT This part replaces 08319-31148.

08319-3114A

$9.66

17

ROD SET,RR CUSH | Includes Item(s) 18 - 19 This part replaces 62601-27830.

62600-29810

Unavailable

18

BEARING

09263-21012

$24.81

19

RING, STOPPER

09381-26002

$2.07

20

SPACER, ROD

62645-27C20

Unavailable

21

BOLT, ROD

62622-27C20

Unavailable

22

NUT This part replaces 08319-31148.

08319-3114A

$9.66

23

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C20.

62682-13E00

$13.30

24

REFER TO FIG.32A(F-12) FOR

SPECIAL NOTE

Unavailable
