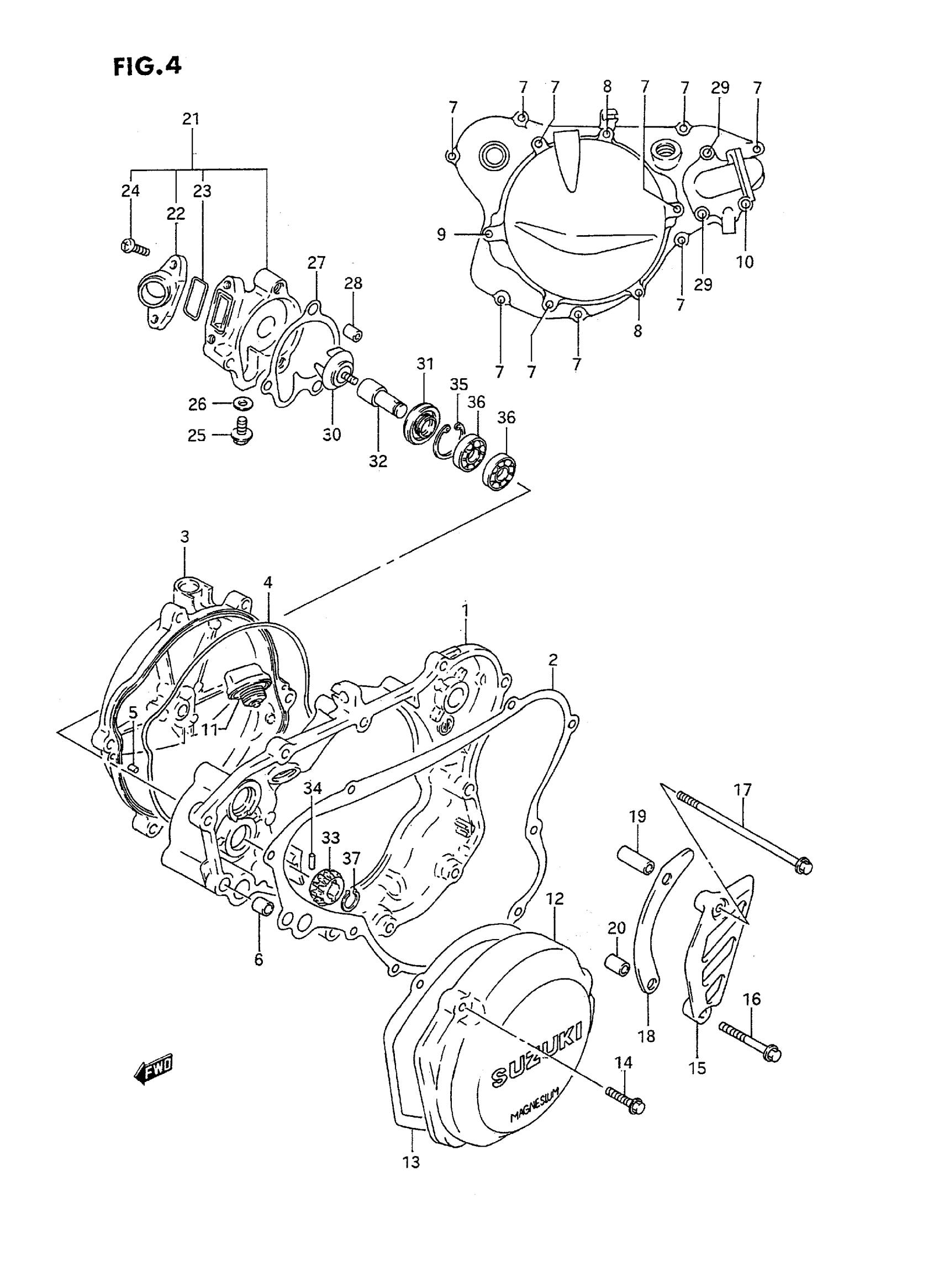

Suzuki RM125S (1995) CRANKCASE COVER- WATER PUMP Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL N This part replaces 11341-43D00.

11340-43811

Unavailable

1

COVER, CLUTCH | MODEL P/R This part replaces 11340-43810.

11340-43811

Unavailable

1

COVER, CLUTCH | MODEL S

11340-43811

Unavailable

2

GASKET, CLUTCH COVER | MODEL N/P/R This part replaces 11482-43D00.

11482-43D01

$22.48

2

GASKET, CLUTCH COVER | MODEL S

11482-43D01

$22.48

3

COVER, CLUTCH OUTER | MODEL N This part replaces 11371-43D00.

11371-43D10

Unavailable

3

COVER, CLUTCH OUTER | MODEL P/R/S

11371-43D10

Unavailable

4

O RING, CLUTCH OUTER COVER

11484-43D00

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

PIN

04211-09129

$1.65

7

BOLT | MODEL N/P

01547-06257

$2.03

7

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

8

BOLT | MODEL N/P

01547-06657

$2.75

8

BOLT | MODEL R/S This part replaces 01547-06653.

01547-0665B

$3.18

9

BOLT | MODEL N/P

01547-06707

$2.75

9

BOLT | MODEL R/S This part replaces 01547-06703.

01547-0670B

$3.29

10

BOLT (6X100) | MODEL N/P This part replaces 09103-06147.

09103-06501

$4.17

10

BOLT (6X100) | MODEL R/S

09103-06501

$4.17

11

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

12

COVER, MAGNETO | MODEL N This part replaces 11351-43D00.

11351-43D10

Unavailable

12

COVER, MAGNETO | MODEL P/R/S

11351-43D10

Unavailable

13

GASKET, MAGNETO COVER

11483-43D00

Unavailable

14

BOLT | MODEL N/P

01547-06257

$2.03

14

BOLT, FINAL GEAR CASE COVER | MODEL R/S This part replaces 01547-06253.

01547-0625B

$2.45

15

COVER, ENGINE SPROCKET | MODEL N This part replaces 11360-27C00.

11360-28E00

$32.00

15

COVER, SPROCKET | MODEL P/R/S

11360-28E00

$32.00

16

BOLT | MODEL N/P

01547-06407

$2.32

16

BOLT | MODEL R/S This part replaces 01547-06403.

01547-0640B

$2.75

17

BOLT (6X100) | MODEL N/P This part replaces 09103-06147.

09103-06501

$4.17

17

BOLT (6X100) | MODEL R/S

09103-06501

$4.17

18

PLATE, CHAIN GUIDE

27641-27C10

Unavailable

18

PLATE, CHAIN GUIDE | OPT FOR 13T

27641-27C00

Unavailable

19

SPACER (6.5X10.5X25)

09180-06203

$2.71

20

SPACER (6.5X10.5X12)

09180-06221

Unavailable

21

CASE, WATER PUMP | MODEL N This part replaces 17410-43D01.

17410-43D11

Unavailable

21

CASE, WATER PUMP | MODEL P/R This part replaces 17410-43D10.

17410-43D11

Unavailable

21

CASE, WATER PUMP | MODEL S; Includes Item(s) 22 - 26

17410-43D11

Unavailable

22

CONNECTOR | MODEL N This part replaces 17412-28C10.

17412-28E00

Unavailable

22

CONNECTOR | MODEL P/R/S

17412-28E00

Unavailable

23

O RING

17414-14300

$2.99

24

SCREW | MODEL N/P/R This part replaces 02112-06164.

02112-0616A

$1.49

24

SCREW | MODEL S This part replaces 02112-06163.

02112-0616A

$1.49

25

BOLT, DRAIN | MODEL N This part replaces 17415-00B00.

17415-43D00

$4.35

25

BOLT, DRAIN | MODEL P/R/S

17415-43D00

$4.35

26

GASKET

17413-28C10

$2.14

27

GASKET, WATER PUMP CASE

17431-43D00

Unavailable

28

PIN

04211-09129

$1.65

29

BOLT | MODEL N/P

01547-06357

$2.03

29

BOLT, WATER PUMP | MODEL R/S This part replaces 01547-06353.

01547-0635B

$2.73

30

IMPELLER, WATER PUMP | MODEL N/P This part replaces 17491-01B03.

17491-43D01

$22.56

30

IMPELLER, WATER PUMP | MODEL R/S This part replaces 17491-43D00.

17491-43D01

$22.56

31

OIL SEAL, WATER PUMP This part replaces 17461-28C10.

17461-03B00

$8.26

32

SHAFT, WATER PUMP This part replaces 17511-27C10.

17511-27C11

$42.83

33

GEAR, WATER PUMP DRIVEN | MODEL N/P/R This part replaces 17441-27C10.

17441-43D20

Unavailable

33

GEAR, WATER PUMP DRIVEN | MODEL S

17441-43D20

Unavailable

34

PIN

09261-03010

Unavailable

35

CIRCLIP This part replaces 08331-41246.

08331-41249

$2.26

36

BEARING

08113-69000

$24.18

37

CIRCLIP This part replaces 08331-31106.

08331-31109

$1.78
