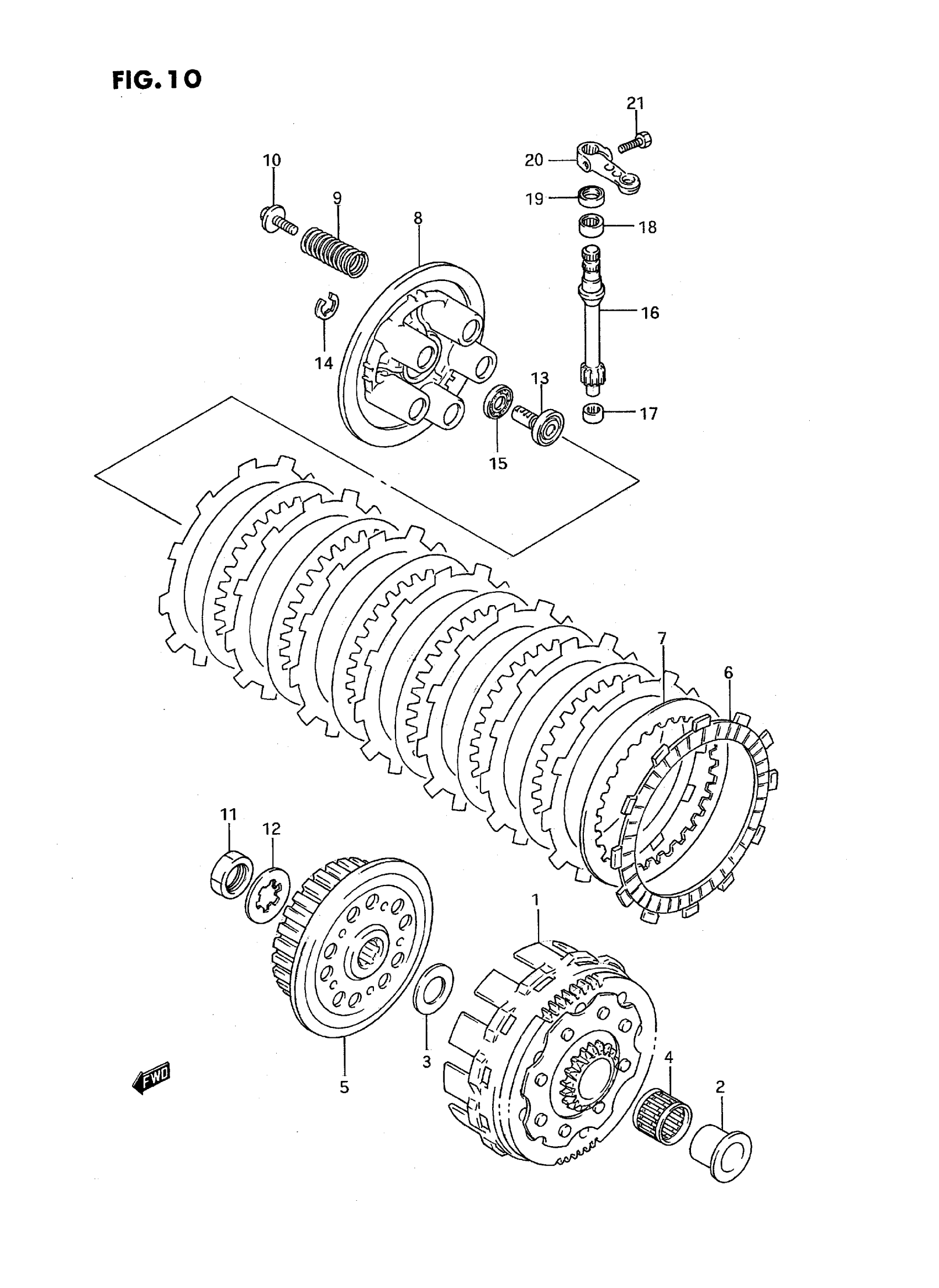

Suzuki RM125S (1995) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | MODEL N/P,NT:64/18->21200-43D02W/21411-43D02 This part replaces 21200-43D00.

21200-43D04

Unavailable

1

GEAR ASSY, PRIMARY DRIVEN | MODEL R/S,NT:64/18 This part replaces 21200-43D02.

21200-43D04

Unavailable

2

SPACER | MODEL N/P This part replaces 21251-00B00.

21251-43D00

$35.74

2

SPACER | MODEL R/S

21251-43D00

$35.74

3

WASHER

08211-20363

$3.18

4

BEARING (25X30X21.8)

09263-25046

$25.92

5

HUB, CLUTCH SLEEVE | MODEL N This part replaces 21411-43D00.

21411-43D04

$104.18

5

HUB, CLUTCH SLEEVE | MODEL P This part replaces 21411-43D01.

21411-43D04

$104.18

5

HUB, CLUTCH SLEEVE | MODEL R/S This part replaces 21411-43D02.

21411-43D04

$104.18

6

PLATE, DRIVE (T:2.8)

21441-43D00

$22.37

7

PLATE, DRIVEN (T:1.4)

21451-43D00

$10.00

8

DISC, CLUTCH PRESSURE This part replaces 21462-43D00.

21462-43D01

$40.76

9

SPRING | MODEL N

09440-18025

$7.35

9

SPRING, CLUTCH | MODEL P/R/S This part replaces 09440-18026.

09440-18030

$6.51

10

BOLT (5X18)

09116-05019

$2.32

11

NUT This part replaces 09140-20002.

09140-20001

$3.37

12

LOCK WASHER

09167-20009

$2.03

13

RACK | MODEL N/P->23165-28301W/08331-31106 This part replaces 23165-28300.

23165-46000

$22.21

13

RACK | MODEL R This part replaces 23165-28301.

23165-46000

$22.21

13

RACK | MODEL S

23165-46000

$22.21

14

.E-RING | MODEL N/R,FOR 23165-28300 This part replaces 08332-11086.

08332-1108A

$1.78

14A

CIRCLIP | MODEL R/S,FOR 23165-28301FOR 23165-46000 This part replaces 08331-31106.

08331-31109

$1.78

15

THRUST BEARING

09263-10002

$10.19

16

PINION

23261-00B20

Unavailable

17

BEARING (9X13X10)

09263-09001

$14.53

18

BEARING (12X16X10)

09263-12024

$12.67

19

OIL SEAL (10X17X5)

09285-10004

$3.37

20

ARM, CLUTCH RELEASE | MODEL N This part replaces 23271-20900.

23271-20902

$29.60

20

ARM, CLUTCH RELEASE | MODEL P/R/S This part replaces 23271-20901.

23271-20902

$29.60

21

BOLT, CANISTER | MODEL N/P This part replaces 01107-06167.

01500-06167

$1.97

21

BOLT | MODEL R/S This part replaces 01547-06163.

01547-0616B

$2.45
