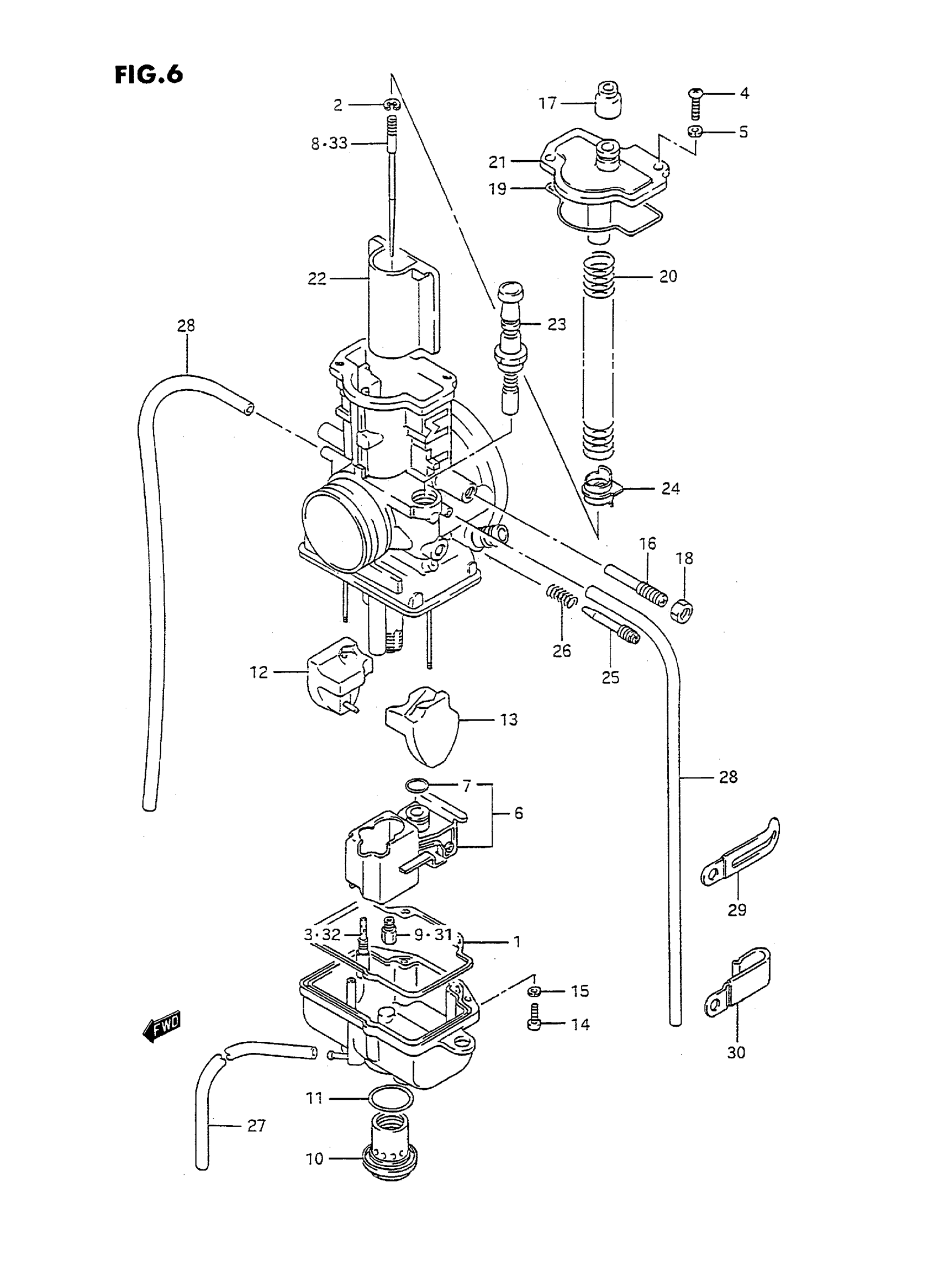

Suzuki RM125S (1995) CARBURETOR (MODEL N/P) Diagram

#

Description
Price

CARBURETOR ASSY | MODEL N

13200-43D10

Unavailable

CARBURETOR ASSY | MODEL P; Includes Item(s) 1 - 26

13200-43D20

Unavailable

1

O RING, FLOAT CHAMBER

13696-26C00

Unavailable

2

E RING

13394-31210

$4.64

3

JET, PILOT (50) | MODEL N

09492-50018

$17.37

3

JET, PILOT (55) | MODEL P

09492-55013

Unavailable

4

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

5

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

6

VALVE ASSY, NEEDLE

13370-27C00

$83.57

7

O RING This part replaces 13374-44080.

13374-35C00

$5.99

8

NEEDLE, JET (6BEJ6-66-3) | MODEL N

13383-43D00

Unavailable

8

NEEDLE, JET (6AEJ02-63-3) | MODEL P

13383-27C30

Unavailable

9

JET, MAIN (320) | MODEL N

09491-64002

$11.83

9

JET, MAIN (360) | MODEL P

09491-72011

$11.83

10

CAP, DRAIN

13247-27C00

Unavailable

11

O RING

13389-27C00

Unavailable

12

FLOAT, RH

13252-01B20

$41.15

13

FLOAT, LH

13252-01B21

Unavailable

14

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

15

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

16

ADJUSTER

13279-26C00

Unavailable

17

.CAP This part replaces 13681-04010.

13681-04011

$4.93

18

NUT

13607-47070

$3.13

19

O RING, TOP CAP

13251-26C00

$12.10

20

SPRING, THROTTLE VALVE

13573-26C00

Unavailable

21

CAP, TOP

13261-01B30

Unavailable

22

VALVE, THROTTLE (CA:4.0)

13551-27C00

Unavailable

23

PLUNGER

13411-26C00

Unavailable

24

RING

13424-26C00

Unavailable

25

SCREW, PILOT (1 1/2)

13267-09400

$7.02

26

SPRING

13268-35010

$4.48

27

HOSE | L:600->320 This part replaces 09351-30503-600.

09351-30001-600

$3.57

28

HOSE, AIR VENT (3.5X6.5X600) | L:600->400

09351-35653-600

$4.64

29

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

30

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

31

JET, MAIN (290) | OPT,MODEL N

09491-58002

Unavailable

31

JET, MAIN (300) | OPT,MODEL N

09491-60007

$13.05

31

JET, MAIN (310) | OPT,MODEL N

09491-62005

$11.83

31

JET, MAIN (330) | OPT,MODEL N

09491-66002

$11.38

31

JET, MAIN (340) | OPT,MODEL N

09491-68002

$11.38

31

JET, MAIN (350) | OPT,MODEL N

09491-70011

$11.38

31

JET, MAIN (360) | OPT,MODEL N

09491-72011

$11.83

31

JET, MAIN (370) | OPT,MODEL N

09491-74003

$11.38

31

JET, MAIN (380) | OPT,MODEL N

09491-76003

$11.83

31

JET, MAIN (320) | OPT,MODEL P

09491-64002

$11.83

31

JET, MAIN (330) | OPT,MODEL P

09491-66002

$11.38

31

JET, MAIN (390) | OPT,MODEL P

09491-78005

$11.83

31

JET, MAIN (400) | OPT,MODEL P

09491-80010

$11.83

31

JET, MAIN (410) | OPT,MODEL P

09491-88001

$18.02

32

JET, PILOT (45) | OPT,MODEL N

09492-45026

$17.88

32

JET, PILOT (50) | OPT,MODEL P

09492-50018

$17.37

32

JET, PILOT (55) | OPT,MODEL N/P

09492-55013

Unavailable

32

JET, PILOT (60) | OPT,MODEL N/P

09492-60013

Unavailable

32

JET, PILOT (65) | OPT,MODEL N/P

09492-65007

Unavailable

32

JET, PILOT (70) | OPT,MODEL P

09492-70008

Unavailable

33

NEEDLE, JET (6BEJ6-65) | OPT,MODEL N

13383-43D10

Unavailable

33

NEEDLE, JET (6BEJ6-67) | OPT,MODEL N

13383-43D20

Unavailable

33

NEEDLE, JET (6AEJ02-64) | OPT,MODEL P

13383-27C10

Unavailable

33

NEEDLE, JET (6AEJ02-63) | OPT,MODEL P

13383-27C30

Unavailable

33

NEEDLE, JET (6AEJ02-62) | OPT,MODEL P

13383-27C40

Unavailable

34

REFER TO FIG.6A(B-12) FOR

SPECIAL NOTE

Unavailable
